Chapter 15 Water Softener Option
Model 213S OD / WA and WB Connections
Adjuster Tube Setting
 The adjuster tube is set by cutting and removing the tabs on both sides of the tube.
 Cut horizontally across each tab using a pocketknife. Follow the channel in the plastic.
 Break off each tab individually until the proper setting is reached.

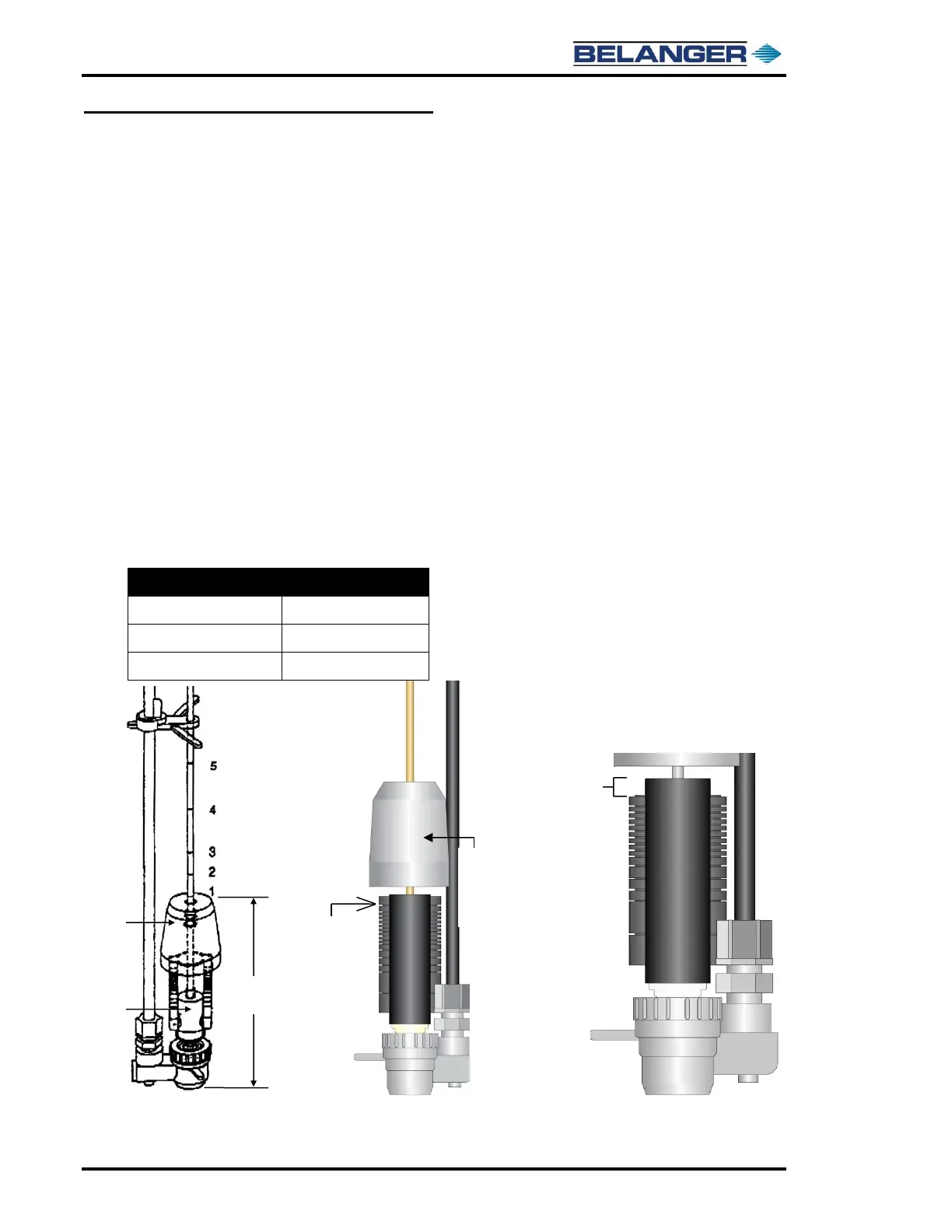

 The remaining number or letter imprinted on the tab determines the correct setting. The
drawing below shows an adjuster tube at setting "M".
Float Cup Setting
 The float cup is set by adjusting its height above the bottom of the brine valve assembly.
 By removing the brine valve assembly and resting it on a flat surface, the height of the
float cup can be measured with a ruler. The height is measured from the base of the brine
valve assembly to the top of the float cup. See the image below.
 Note that standard settings are defined by markings on the rod of the brine valve
assembly. The settings on the rod are listed in the tables at the end of this section.
 Where the predefined settings are not adequate, the actual float cup height, in inches, is
listed, and the setting must be measured and set according to the measured float cup
height.
 Cut the first tab of the Brine Valve so 1.25 is the next tab. Set the Float at 10-1/2”.
Salt with Grid
Salt Setting
15 lbs.
Adjuster Tube
1.25
Float Tube
10-1/2”
Float
This image
shows the
top tab
removed
on each
side
15lbs @
10-1/2”
Adjuster
Tube
1. Insert a
knife here and
break off the
top tab on
both sides so
the 1.25 tab is
next for the
Adjuster Tube
2. Raise
the Float to
the shown
10-1/2”
height
Base of Brine Valve
Top of
Float
