Chapter 18 Pneumatic Connections

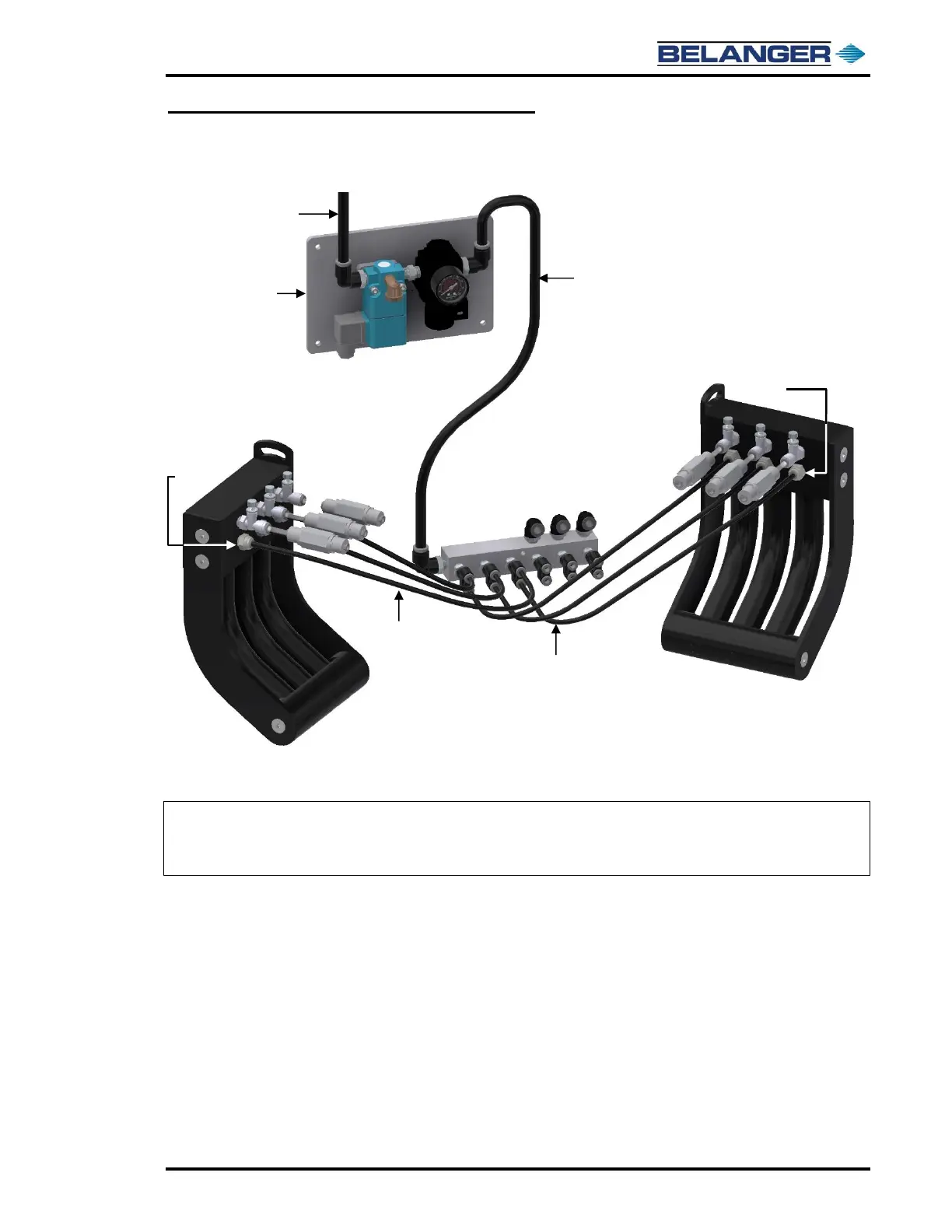

Triple Foam Pneumatic Circuit Overview
Triple Foam Air
Regulator Panel
Airline to Triple
Foam Feed Block
(1/2” Black Airline)
Triple Foam Pod
Assembly
(Driver Side)
Triple Foam Pod
Assembly
(Passenger Side)
Air In From
Air Compressor
(1/2” Airline)
Triple Foam
Feed Block
Ports:
#1
#2
#3
Driver Side
Triple Foam Pod
Air Ports:
#1
#2
#3
Airlines from top of
Ports to DS Foam Pod
(1/4” Black Airline)
Airlines from bottom of
Ports to PS Foam Pod
(1/4” Black Airline)
#1
#2
#3
Passenger Side
Triple Foam Pod
Air Ports:
Note: Air is supplied to the left side of the Feed Block.
Note: The airlines from the top of the ports always go to the driver side Foam Pod and the airlines from
the bottom of the ports go to the passenger side Foam Pod.
