Chapter 19 Initial Startup Procedure of Cube®
5) Inspect and Adjust the Carriage Assembly
5a) Confirm LED’s are Working Properly
1) For the Side Wheel Hubs, Top Wheel Hub, Wall Washer (Light Bar), Smart Spray,
OverGlow™ and Foam Rain Assemblies do the following:
➢ Each individual LED color can be forced on, force each color on and verify that all
components with LED lights are lit and are the correct color.
➢ The Navigation Signs with a corresponding color will also turn on with the LED Color
Force.

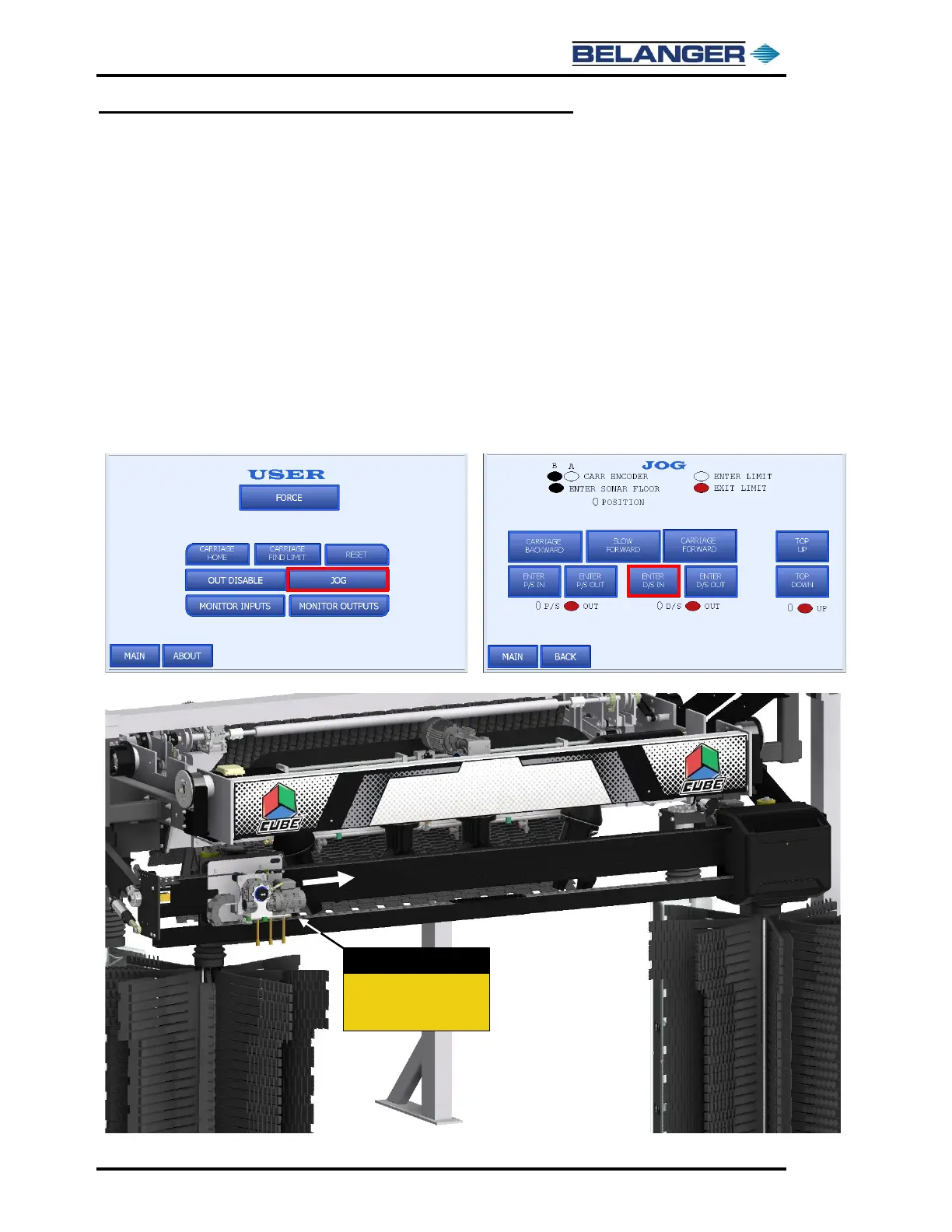

5b) Check the Tension of the Shuttle Belt
If the Shuttle Belt is too tight there will be a Shuttle Overload Avoidance indicating that the
Shuttle Belt will need to be adjusted. To adjust the Shuttle Belt, perform the following
steps:
1) Jog the driver side, Side Wheel Shuttle Assembly inward 12” away from its home position.
2) Remove the driver side Motor Cover to gain access to the Shuttle Belt Assembly.
To Next Page
