Chapter 19 Initial Startup Procedure of Cube®
4) Inspect and Adjust Pneumatics

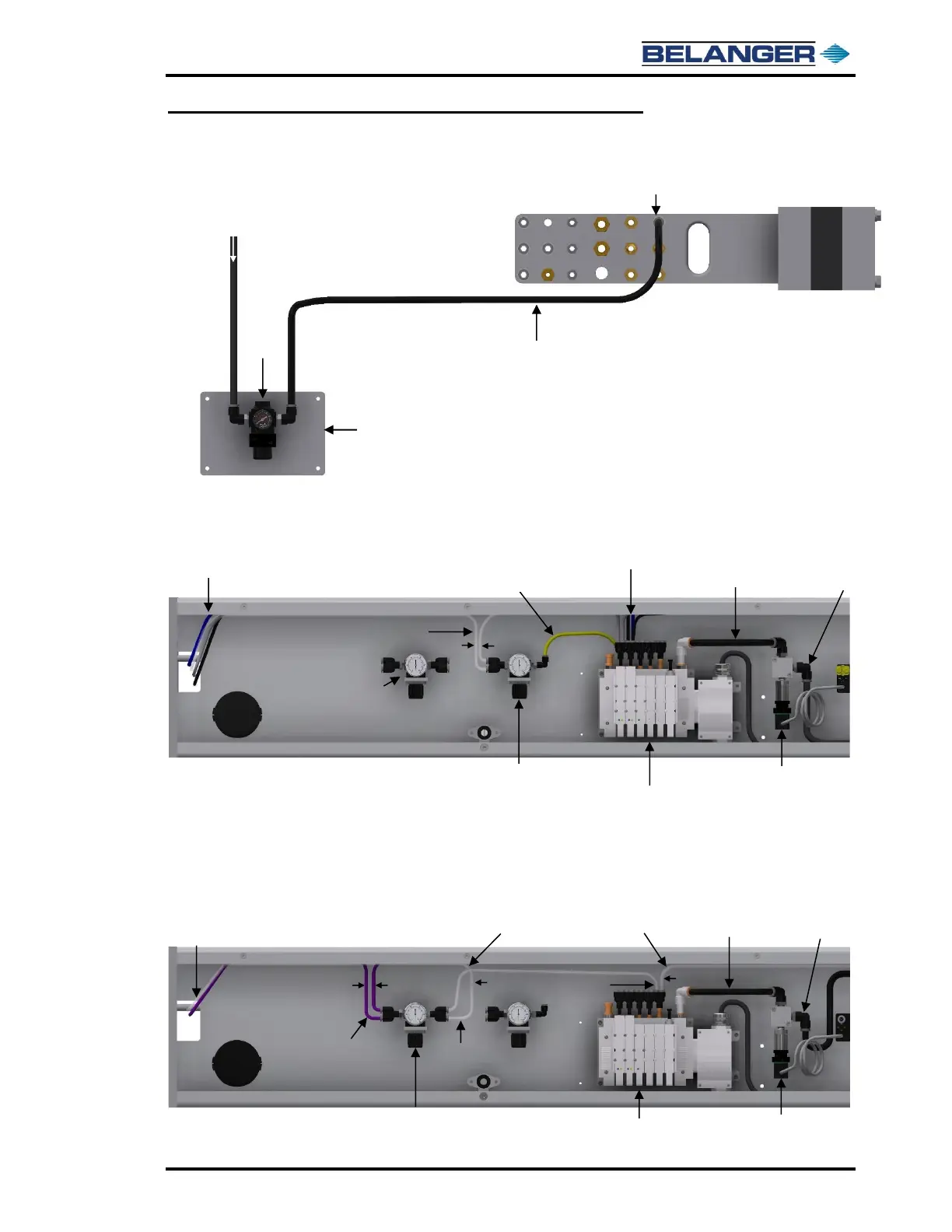

4a) Set the system pressure on the Main System Regulator Panel to 100psi.
4b) Then FORCE the SIDE SHAFT IN and set air pressure on the Regulator for the
Side Wheel Cylinder Short Stroke Retract to 60psi, refer to the image below.
4c) Next, FORCE the CTA to turn on the CTA application and set the air pressure on
the CTA Regulator to 35psi, refer to the image below.
Main System
Regulator Panel
Main Air Supply “In”
1/2” black airline
field supplied
Utility Manifold
located in Bay
Airline “Out” to Utility Manifold
1/2" black airline
field supplied
Main Air Fitting
System
Pressure
set to
100PSI
Air “In” from Main
System Regulator Panel
(1/2" black airline)
Pneumatic Manifold
Assembly
Regulator for Side
Wheel Head Cylinder
Short Stroke - Retract
(Set to 60PSI)
Low Air Pressure
Switch Assembly
Air to Regulator for SW Head
Cylinder Short Stroke Retract
(1/4" Yellow Airline)
Air to Pneumatic
Manifold Assembly
(1/2" black airline)
1/4" Airlines for DS & PS
SW Head Cylinders
Long Stroke Extend -
1/4" Airlines from Pneumatic Manifold to
DS SW Head Cylinder for
Long & Short Strokes – Extend & Retract
DS
PS
Driver Side
CTA Regulator
for Smart Spray
(see below for
connections)
1/4" Clear Airlines to SW Head
Cylinder Short Stroke Retract
Driver Side
1/4" Purple Airlines out to
DS & PS Smart Spray
CTA Foam Generator
CTA Regulator
for Smart Spray
CTA Foam
(Set to 35PSI)
1/4" Airlines from CTA Regulator
to DS Smart Spray
Purple Airline to CTA Foam Generator
Clear Airline to Tee for CTA Nozzle Body Valve
Pneumatic Manifold
Assembly
Air to Pneumatic
Manifold Assembly
(1/2" black airline)
Air “In” from Main
System Regulator Panel
(1/2" black airline)
1/4" Clear Airline to Smart Spray
Tee for CTA Nozzle Body Valve
Long Stroke Extend - Blue Long
1/4" Clear Airline
to CTA Regulator
DS
DS
PS
1/4" Clear Airline from
Pneumatic Manifold
Low Air Pressure
Switch Assembly
PS
