Belanger CUBE - Undercarriage In-Ground Placement

Cube
®
Installation & Startup
10-2 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL963
Chapter 10 Undercarriage Option
Undercarriage In-Ground Placement

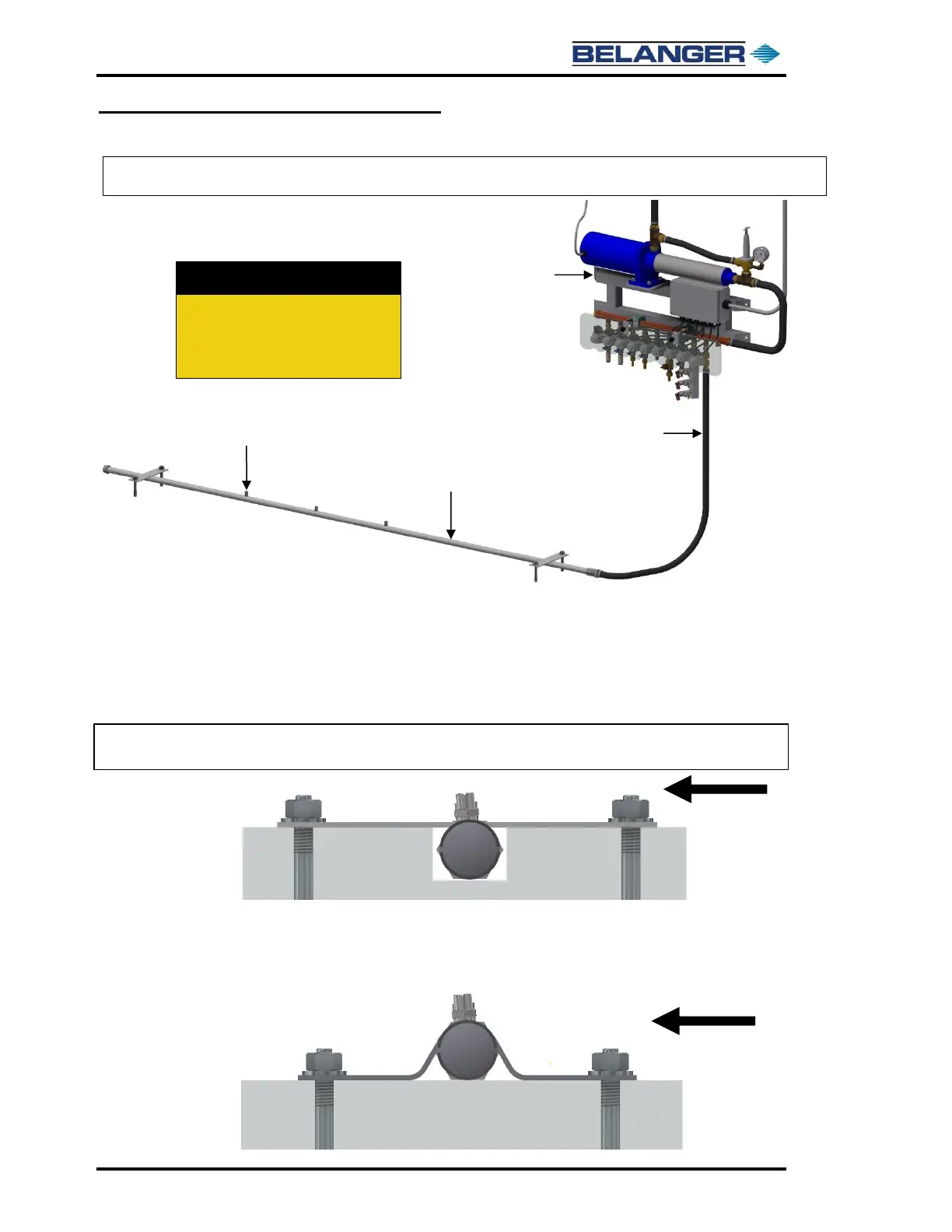

In-Ground Undercarriage placement is typically in a trench cut into the floor, but this style of
Undercarriage could also be mounted on the surface of the floor.
Mounting the In-Ground Style Undercarriage in a Trench
Be sure that there is adequate room for the fittings and pipe on each end. You will also need to have
room to clamp the hose.
Note: Take care that the water hose does not stick up out of the trench in a way that becomes a tripping
hazard or a potential catch point!
Mounting the In-Ground Style Undercarriage on the Surface
The mounting tabs will have to be bent to the floor so the undercarriage manifold can be lagged. See
the image below.
Direction of Travel
Direction of Travel
Note: The images in this manual of the Undercarriage Assembly depict a passenger side Equipment Room.
Undercarriage
Manifold Assembly
3/4" Black Rubber
Water Hose
(field supplied)
ICS Assembly
Nozzles (3)
65° x 3.0 GPM
The Nozzles are not to be installed
until after the Undercarriage Manifold
has been flushed out during the
Startup Procedure.
Important Note
