Chapter 10 Undercarriage Option

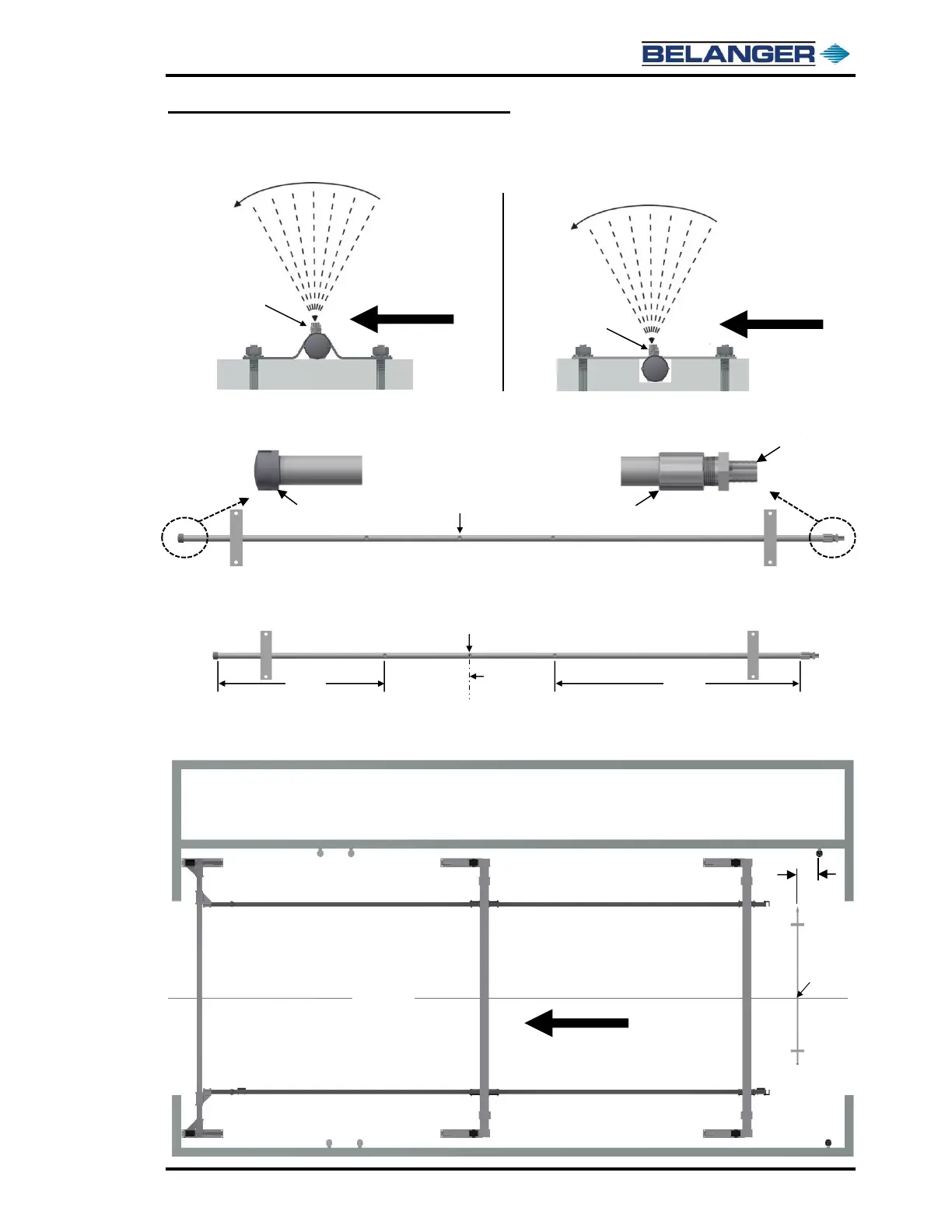

Undercarriage In-Ground Placement
1) The manifold is welded at a 5 angle and is to be pointed towards the exit of the bay.
2) Locate the supplied end cap, stainless steel coupling and stainless-steel barbed hose fitting.
Secure them to the manifold as shown below.
3) Position the manifold with the center hole in-line with the doorways centerline as shown below.
4) Place the In-Ground Undercarriage Weldment Assembly in the correct location as described
above and as shown below. Secure the Undercarriage to the floor using the supplied lag bolts.
Photo Eye
Direction of Travel
15”
Photo Eye
43-1/2”
29-1/2”
Passenger
Side
Driver
Side
Exit
Entrance
Equipment Room
Passenger
Side
Driver
Side
End Cap
Coupling
Barbed Hose Fitting
Nozzle openings
angled toward exit
Direction of Travel
Exit
Direction of Travel
Entrance
Entrance
Exit
Undercarriage
on Surface
Undercarriage
in Trench
Nozzle angled
5° toward exit
Nozzle angled
5° toward exit
Center
Hole
Centerline
of Doorway
Centerline of
Doorway
Center Hole
