Chapter 12 Injection Chemical System (ICS)
ICS Assembly: Electrical Connections

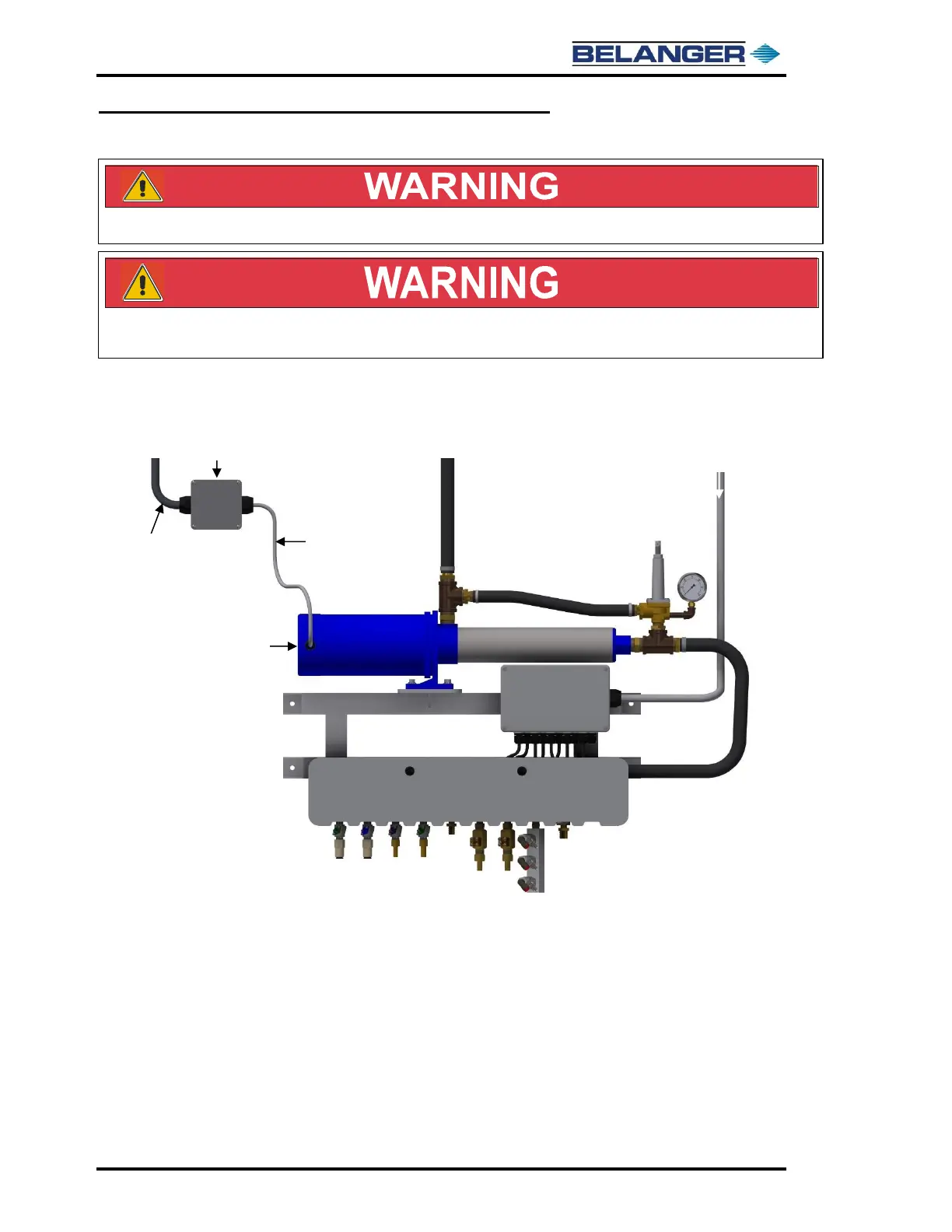

1) All electrical wires, conduit, cables and small junction boxes shown in the image below are
to be field supplied, therefore, it is recommended that a Licensed Electrician is contracted to
perform all electrical installations.
2) Run the main power line from the Building Panel to a field supplied junction box for the ICS
Pump and make the wire connections to the Pump Motor Cable.
3) Then route the Pump Motor Cable to the ICS Pump Motor and make the wire connections to
the motor wires inside the Pump junction box.
4) Run the main power line from the Building Panel to the ICS Junction Box and make the wire
connections to all the Injector Valve Cables inside the junction box.
5) Refer to the electrical schematic drawings supplied with the Cube® system for more specific
information on how to run the electrical lines, size of conduit and size of wires.
6) When the ICS Pump and Injector Valves are all wired properly, close and seal all the junction
boxes be cautious to not crimp down on any of the wires.
7) In the Startup Chapter, you will test to see if the Pump is rotating correctly and that each
application turns on and off properly.
