Cube
®
Installation & Startup
18-4 Belanger, Inc. * PO BOX 5470. * Northville, MI 48167-5470 * Ph (248) 349-7010 * Fax (248) 380-9681 1MANUL963
Chapter 18 Pneumatic Connections

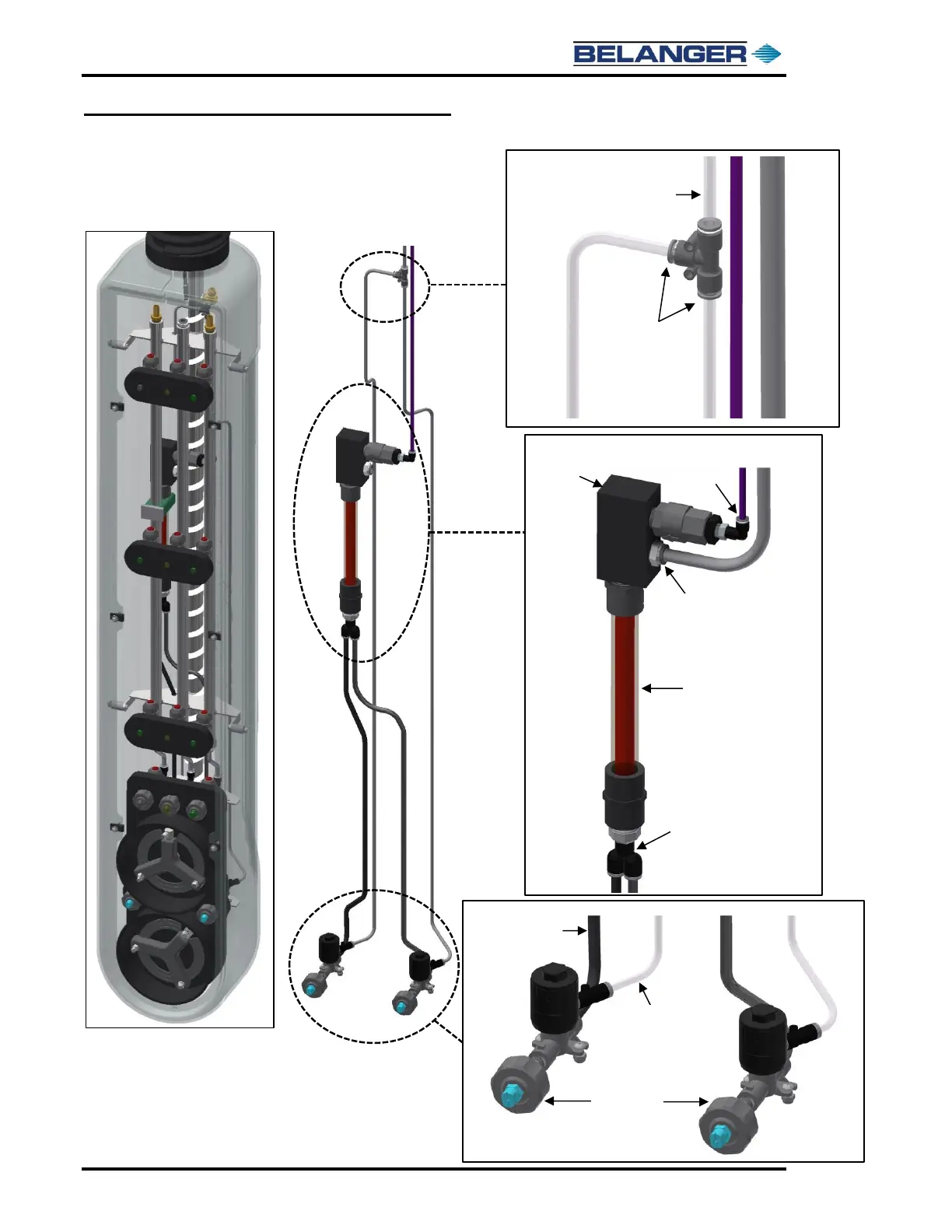

Smart Spray CTA Foam Generator Circuit Overview
Feed from CTA Regulator on DS,
from Pneumatic Manifold on PS
(1/4" Clear Airline)
Tee to Feed CTA
Nozzle Body Valves at
bottom of Smart Spray
(1/4" Clear Airlines)
CTA Nozzle
Body Valves
Chemical Lines from
Foam Generator
(1/4” Black Poly Hose)
Airline from Tee at
top of Smart Spray
(1/4” Clear Airline)
Smart Spray Foam
Generator Assembly
(same for DS & PS)
Foamx
Dual Inlet
Adapter
Foam
Generator
Assembly
Swivel 2-Way Fitting
to Feed CTA Nozzle
Body Valves
CTA Chemical Solution
from MixStir™
(1/2” Natural Poly Hose)
Feed from CTA
Foam Regulator
(1/4" Purple Airline)
