Chapter 10 Undercarriage Option
Undercarriage In-Ground Connections

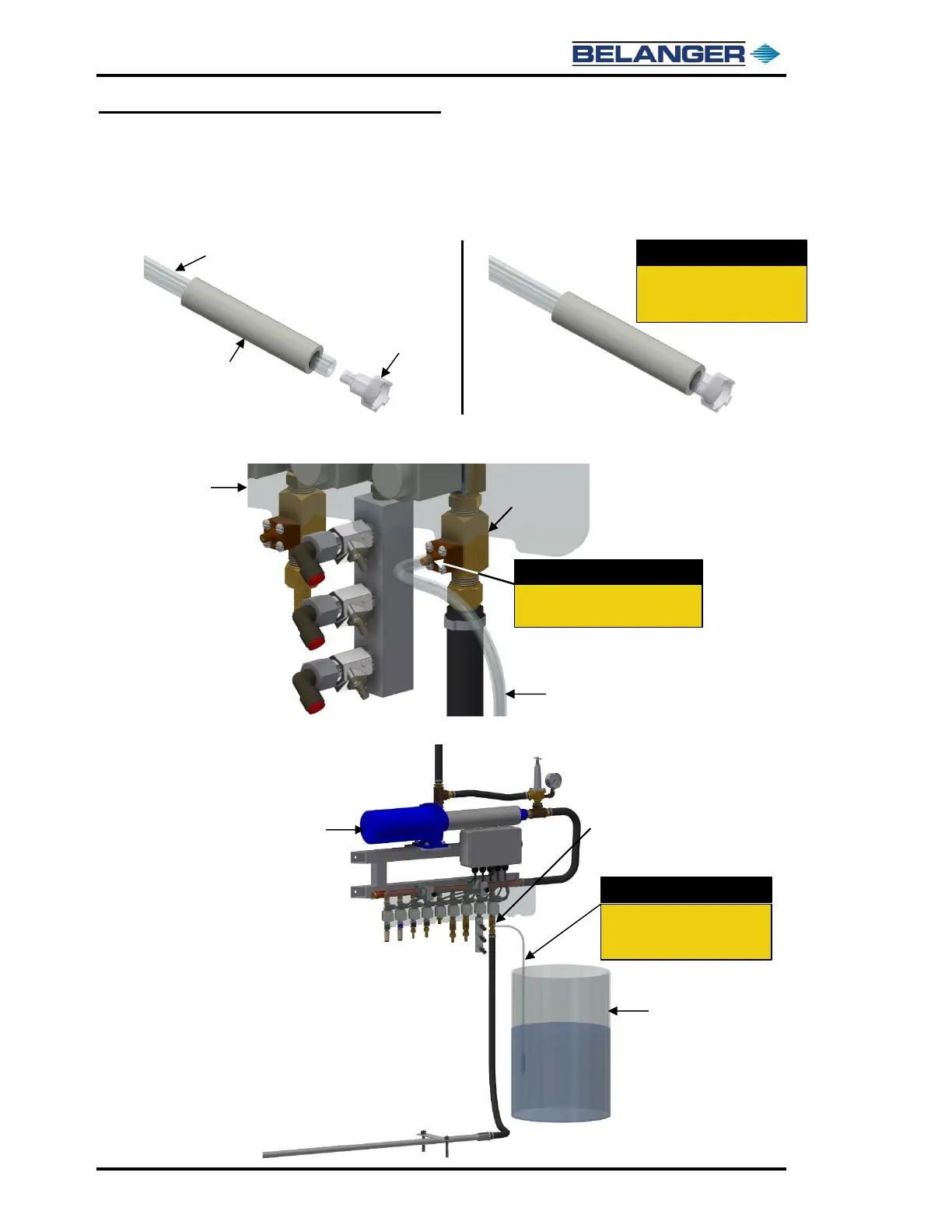

9) Retrieve the clear Suction Tube, check the distance between the Undercarriage ICS Injector and
the chemical solution container. Use the 8’ Suction Tube provided or if a longer length is needed
cut a section from the 100’ Suction Tubing provided with the ICS Assembly.
10) Slide the Suction Tube Weight over the end of the tube and insert the Strainer into the same end
of the tube.
11) Slide the open end of the Suction Tube over the Metering Tip on the Undercarriage Rust Inhibitor
Injector Valve.
12) Place the weighted strainer end of the Suction Tube into the chemical solution container.
Slide the Suction Tube Weight
onto the Suction Tube then
insert the Strainer into the tube.
