Chapter 1 Introduction

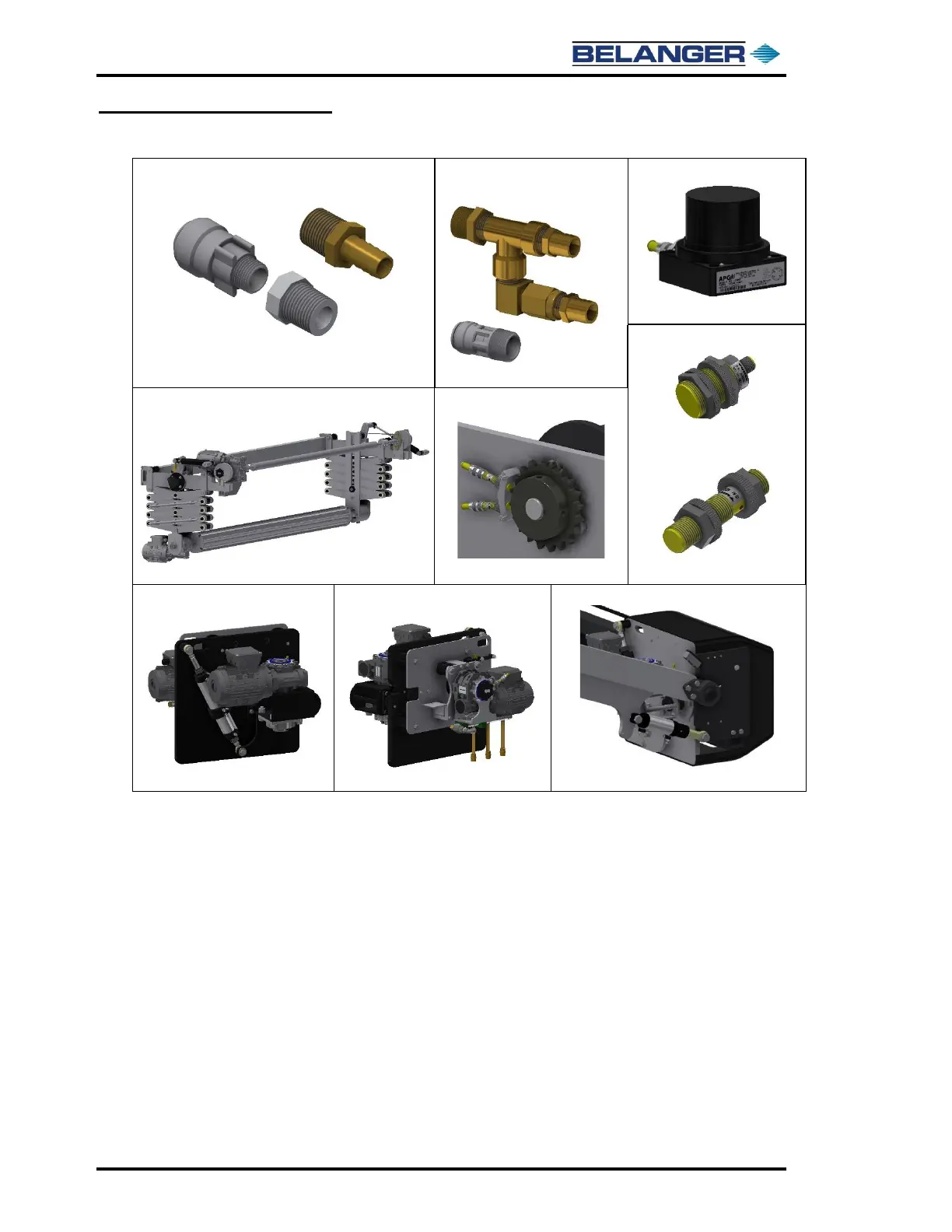

Component Identification
Foam Rain Utility Manifold Fittings
Chapter 18 &19
OverGlow™ Utility Manifold
Fittings
Sonar Unit
Chapter 19
Entrance & Exit Limit Prox
Shuttle, Side Wheels & Top
Wheel Prox
Chapter 19
Chapter 18 & 19
Top Wheel Assembly
Chapter 19
Carriage Encoder
Chapter 19
Side Wheel Head Assembly
Cylinder Side
Side Wheel Head Assembly
Water Manifold Side
Shuttle Assembly Tilt Cylinder
Chapter 19
Chapter 18 &19
Chapter 18 & 19
Fitting for
hose from
ICS
Fitting for hose in
Carriage Cable
Carrier
Fitting for hose in
Carriage Cable
Carrier
Fitting for
hose from
ICS
