Output Conguration 38
Single CH displays more information about the output, and allows conguration of more parameters.
The voltage congurations will now range from 0 v to 64 V for model 9140 and 0 V to 120 V for model
9141.

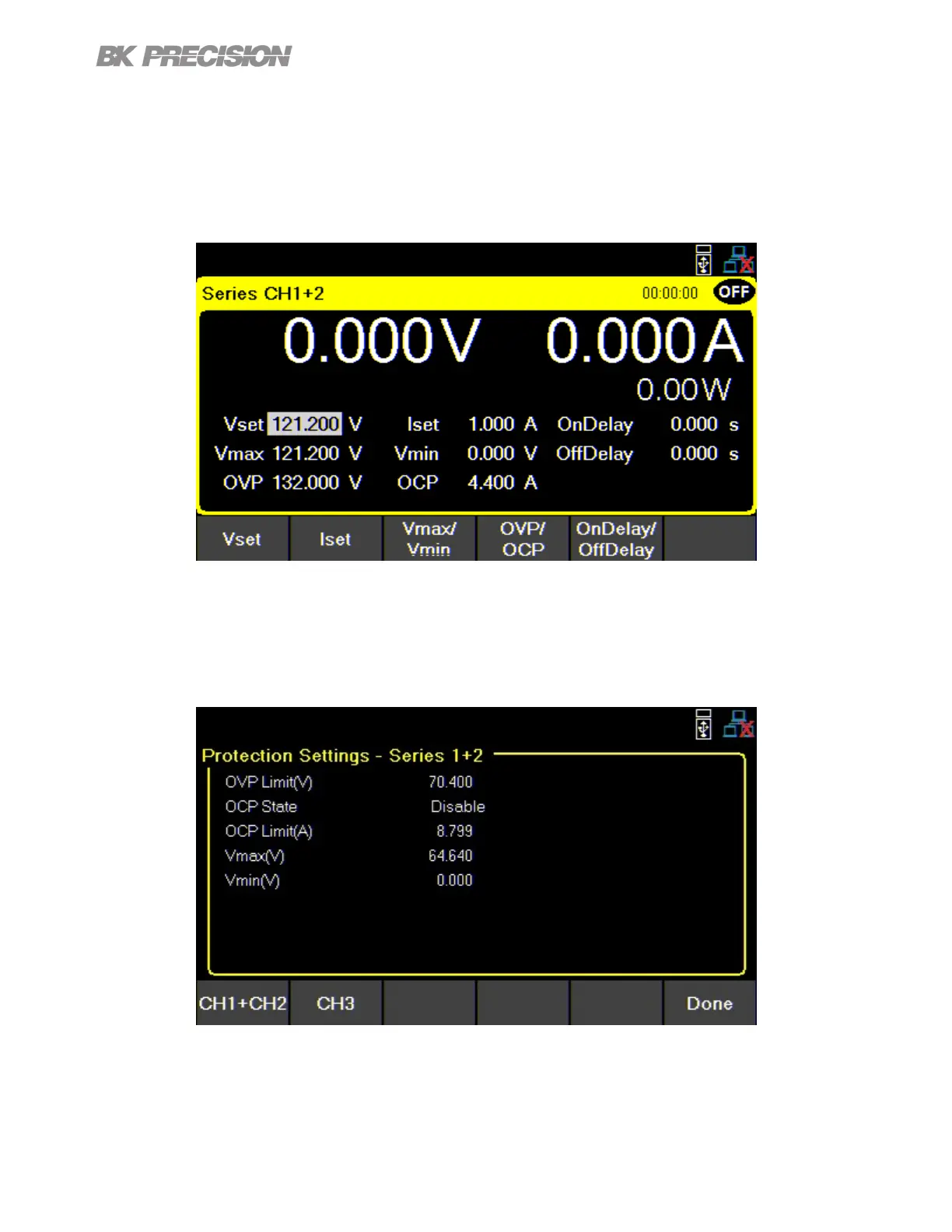

Figure 4.7 Series CH1+2 Single Channel Display
Protection Setting menu will also adjust the congurable values.
Figure 4.8 Series CH1+2 Protection Settings
