BK Precision 9140 Series - Page 39

Output Conguration 39
Series All
Operation mode will be set to Series All. Coupling will not be available in Series All mode.
Press the button then use the soft key to select Output Cong > Op. Mode/Coupling > Operation
Mode > Series > Series All.

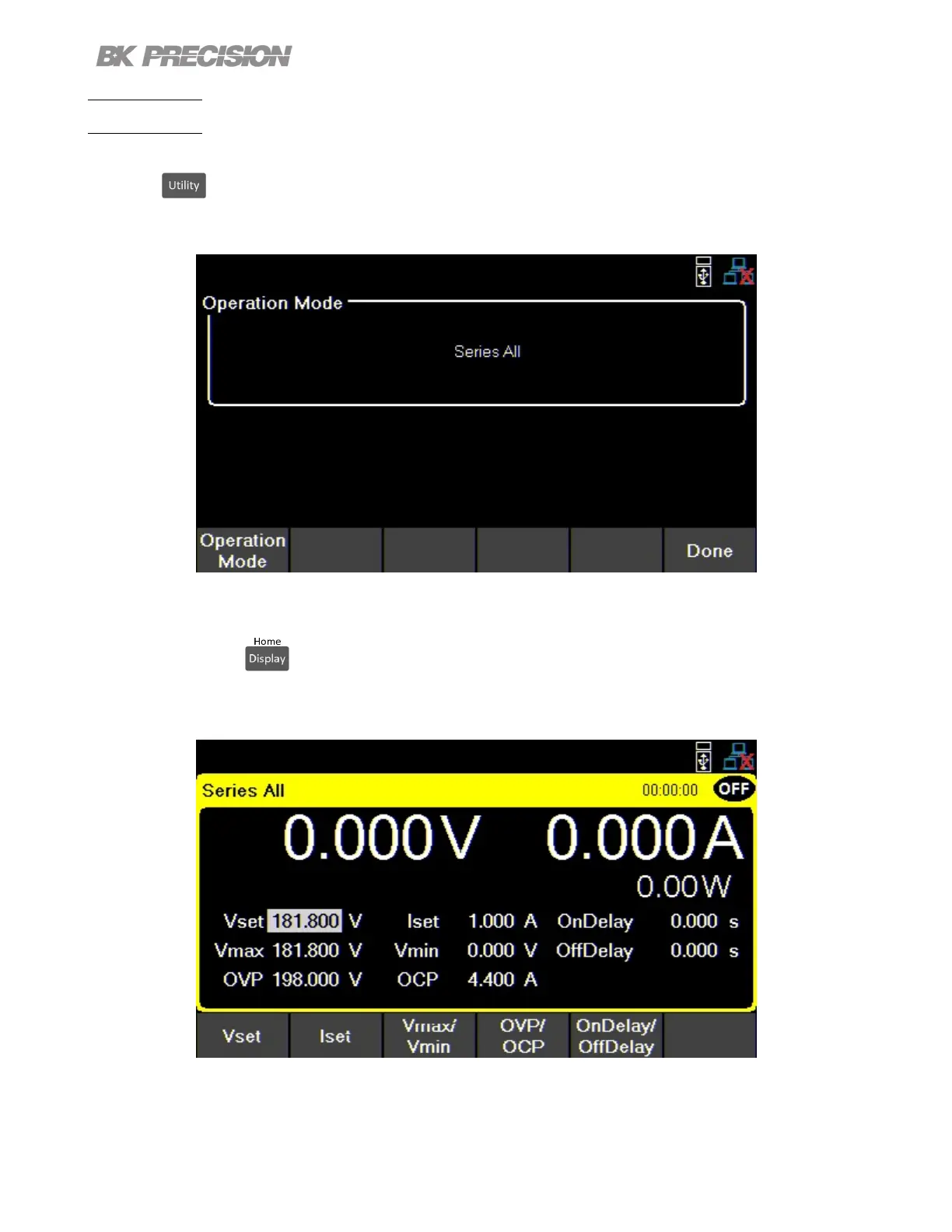

Figure 4.9 Series All
In Series All mode will only toggle between the Series All display and live output monitoring.
Series All CH display will adjust to voltage conguration between 0 V and 96 V for model 9140 and 0 V
to 180 V for model 9141.
Figure 4.10 Series All Main Page
Protection Setting menu will also adjust the congurable values.
