BK Precision 9140 Series User Manual

Output Conguration 40
Parallel Mode
Set operation mode to Parallel.
Parallel Mode does not internally wire the outputs. The outputs must be connected externally to increase
the available current range.
Parallel Mode changes the UI to accurately represent the possible output congurations.
Press the button then use the soft key to select Output Cong > Op. Mode/Coupling > Operation
Mode > Parallel.

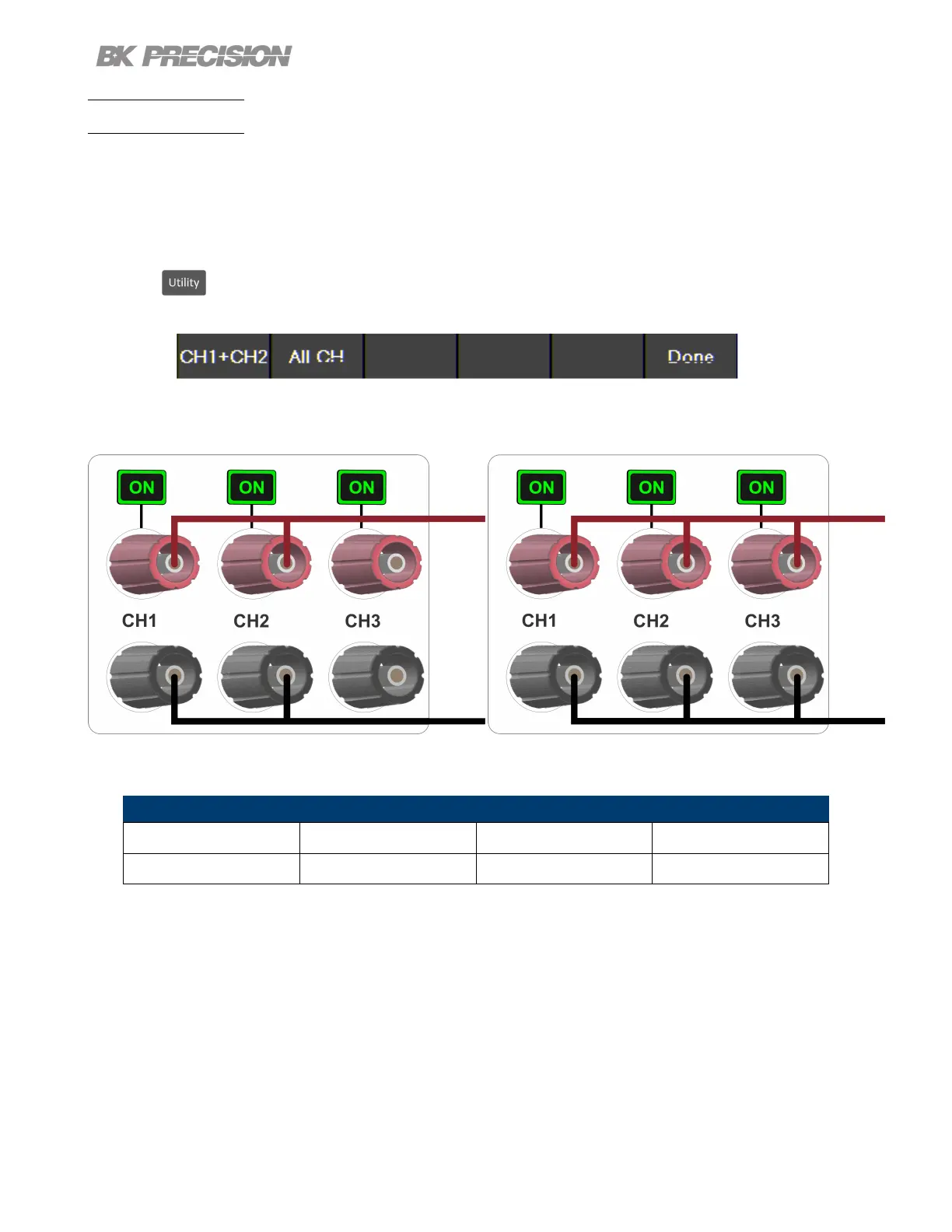

The image below illustrates the external wiring required to connect all channels in Parallel. If CH1+ CH2
is chosen CH2’s terminals do not connect to CH3’s terminals.
Parallel CH1+2
Parallel All
9140 9141
CH1 + CH2 All CHs CH1 + CH2 All CHs
16 A 24 A 8 A 12 A
Table 4.1 Parallel Mode
