BK Precision 9140 Series User Manual

Output Conguration 41
CH1 + CH2
Operation mode will be set to Parallel 1 + 2. Selecting an operation mode will undo previous coupling
conguration.
Press the button then use the soft key to select Output Cong > Op. Mode/Coupling > Operation
Mode > Parallel > CH1 + CH2.

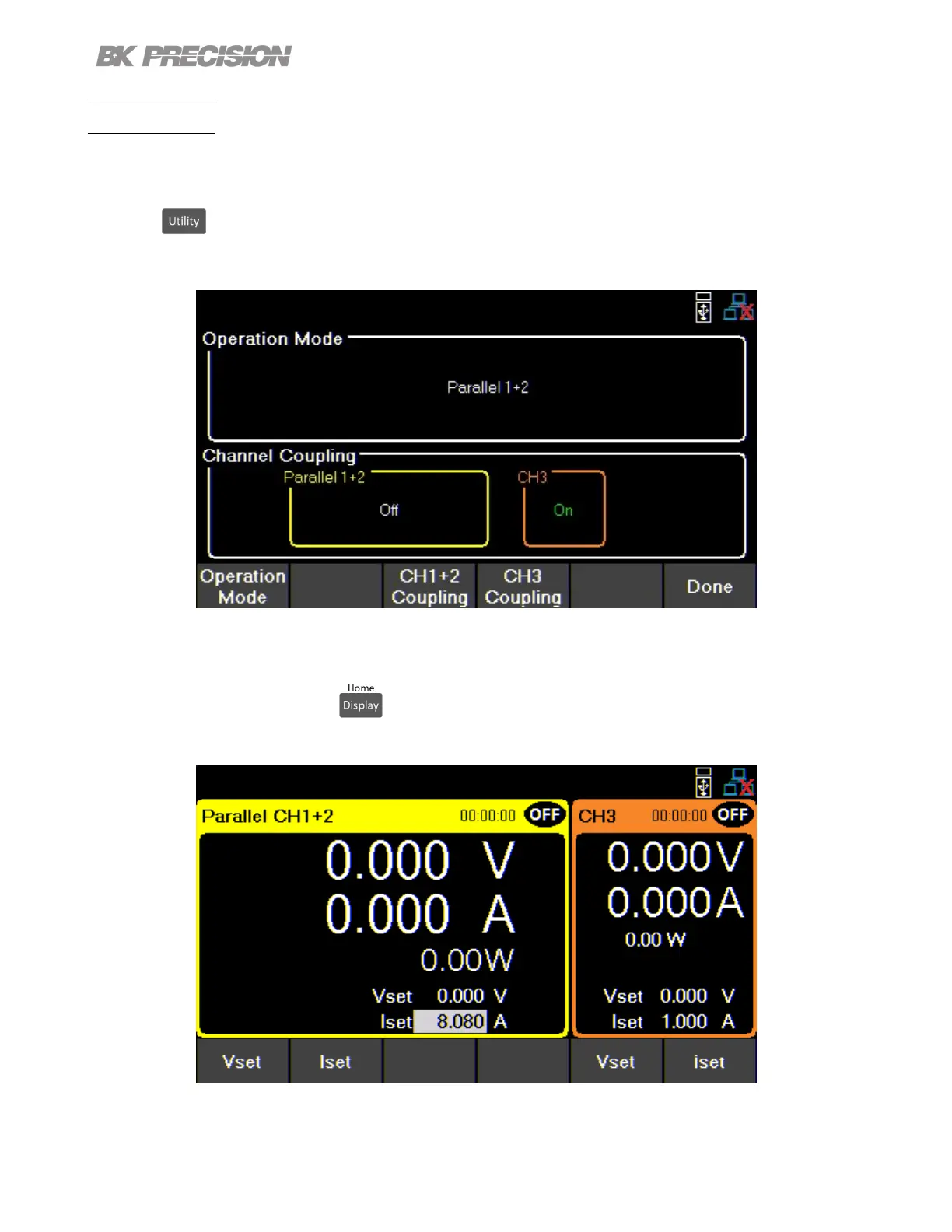

Figure 4.11 Parallel CH 1+2
In Parallel CH1 + 2 Mode the main page will display the output of the combined outputs, as well as the
output of the individual CH3. The button will toggle through single channel display for Parallel CH1
+ 2, CH 3, and live output monitoring.
Figure 4.12 Parallel CH 1+2 Main Display 9141
