7 The configuration sheet
7.1 Configuration
Various information is evident from the configuration sheet:
♦ Which module is to be found at which physical socket position
♦ How the connection plugs are laid out
♦ Which LEDs are assigned to which channels.
This information is required to be able to put a VIBROCONTROL 6000
Compact monitor into operation.

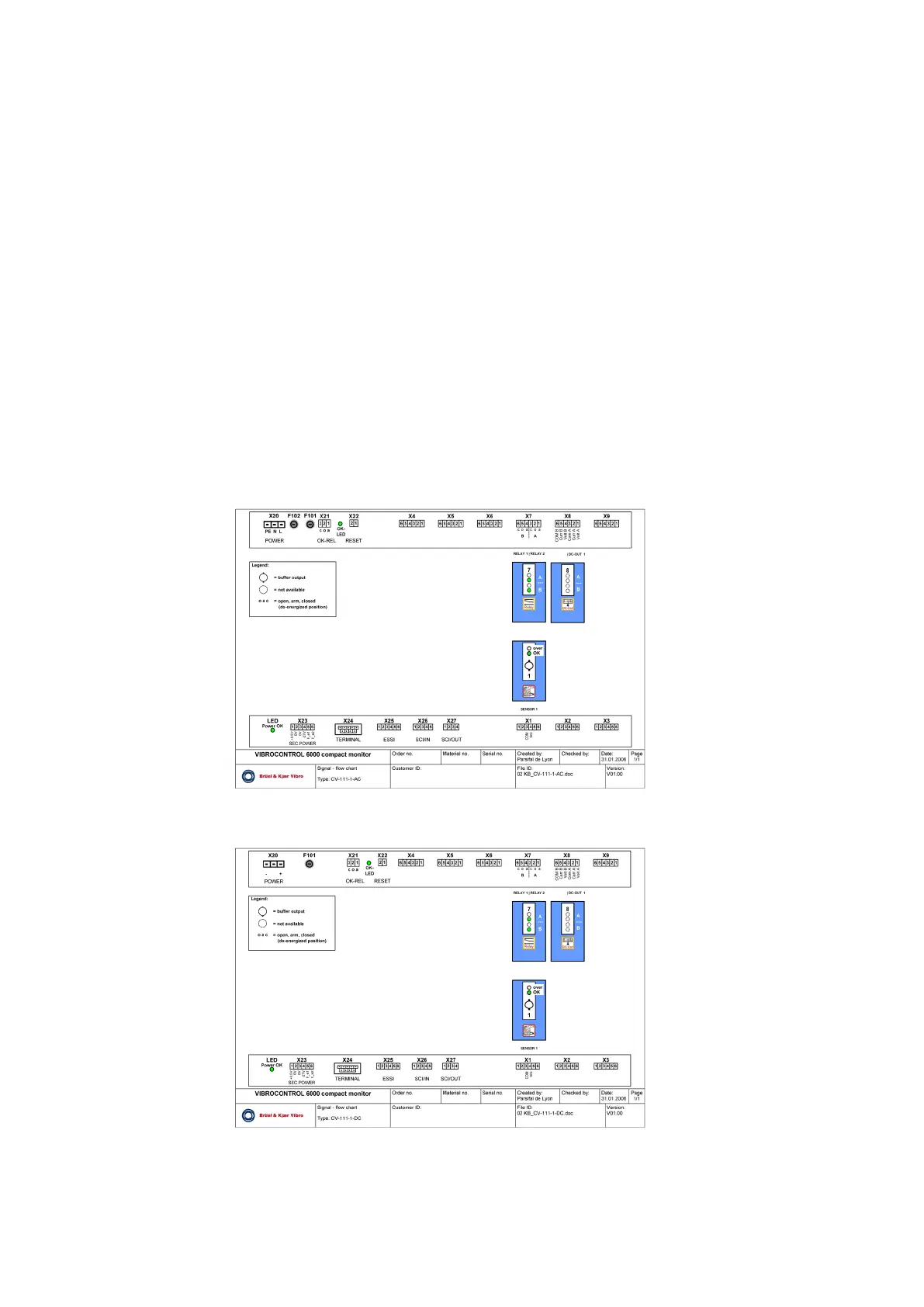

Example of a configuration sheet:
AC
DC
