VC-6000
TM
Compact monitor Part B 2-channel output module for current / voltage
- 42 - C100584.002 Module Vers. 08 © VC-6000
TM
Compact monitor Nov. 2014
9 2-channel output module for
current / voltage

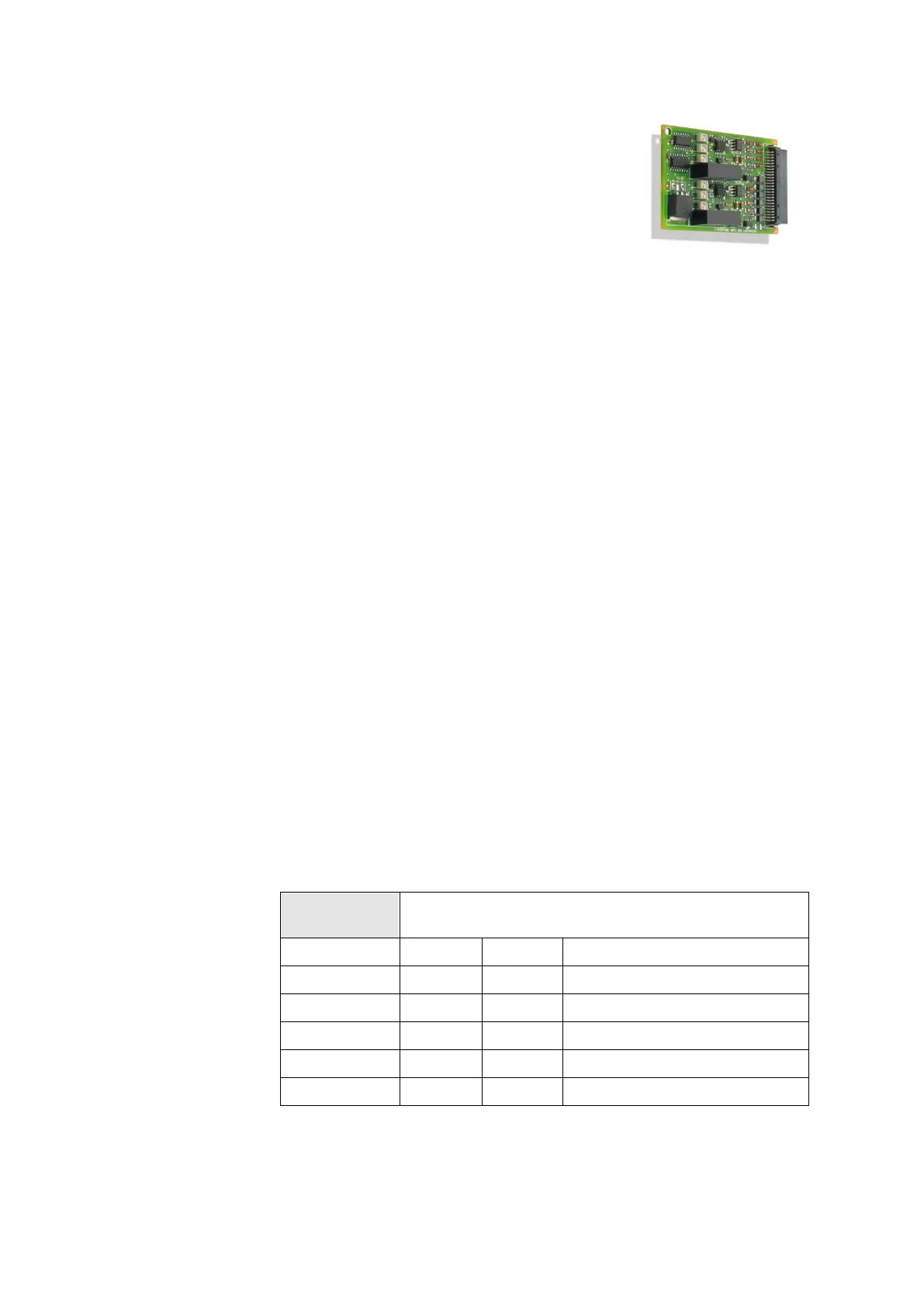

9.1 Function
♦ The output module for current and voltage
signals, abbreviated to DC-OUT (DC-OUTPUT-Module) is laid out as a
2-output channel.
♦ The DC-OUT module is an interface between the
VIBROCONTROL 6000 Compact monitor and the outside world. The
output can be selected as a potential-free DC-current signal (e.g. 4 ... 20
mA) or a potential-free DC voltage signal (e.g. 0 ... 10 V). Both signal
types are presented at each DC-OUT Module. Selection is done
respectively through a corres-ponding connection layout.
♦ A DC output is always directly linked with a measurement processor
(e.g. an RMS block). The output signal level of the DC output repre-
sents, as a rule, the current measured value. The representation of the
measured value by an output signal level is set up through the dialogue
of the User-Terminal and can be changed at any time by the user.
9.2 Technical data
9.2.1 Output
General properties galvanically separate,
short-circuit proof
Output range for current signal 0 ... 20 mA and 4 ... 20 mA
Max. load for current signal 500 Ω
Output range for voltage signal 0 ... 10 V and 2 ... 10 V
Min. load for voltage signal 10 kΩ
Dynamics 1
9.2.2 Connection plug layout
Plug
X4 to X9
DC-OUT (up to 2 channels: A and B)
Pin 1 Volt A OUT Voltage output, channel A
Pin 2 Curr A OUT Current out, channel A
Pin 3 COM A OUT Common, channel A
Pin 4 Volt B OUT Voltage output, channel B
Pin 5 Curr B OUT Current output, channel B
Pin 6 COM B OUT Common, channel B
