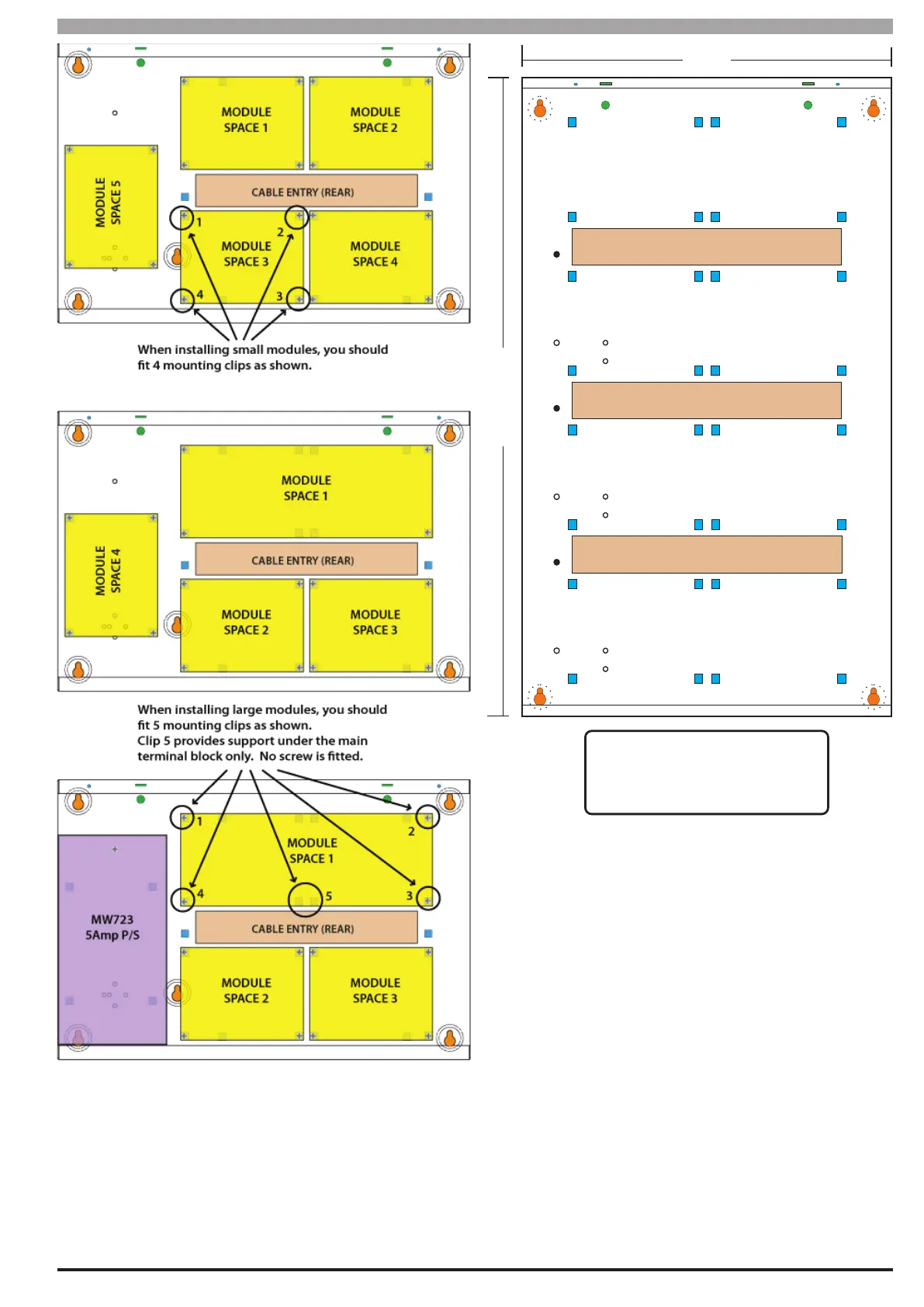

Figure 5: MW720B Configuration Examples
320 mm
520 mm
A A
A
A
AAAA
A AAA
A
AAA
A AAA
A
AAA
A AAA
A
AAA
CABLE ENTRY (REAR)
CABLE ENTRY (REAR)
CABLE ENTRY (REAR)
A
= PCB Mounting Clip Holes
= Enclosure Mounting Holes
B
= Tamper Bracket Mounting Holes
C
= Earth Stud - 4mm
D
C C
BB
D
BB
D
D
Figure 6: MW730B - Large Enclosure Details
The following examples show the MW730B - Large
enclosure configured using 6 small modules and 1 large
module.

Bosch Solution 6000-IP Specifications

General

Event Log	Yes
Areas	1
Partitions	1
Outputs	2
Communication	IP, GSM
Mobile App	Yes
Automation	Yes
System Type	Hybrid
Battery Backup	Yes
Keypads	Up to 8
