M710 User Manual 63
Label Types
Wire Marker
Wire Marker
The Wire Marker label type is designed to repeat entered data down the length of the label. The data
repeats as many times as possible, considering the font size and the wire size selected.
Pre-sized, self-laminating, or continuous label supplies can be used for wire marker labels.
To create a wire marker label:
1. Press LABEL TYPE.
2. Select Wire Marker.
3. Select the wire marker gauge and length.
Note: The label size is fixed by the gauge and size selected in the sub-menu, even if using
continuous label supply.
4. Enter the data.

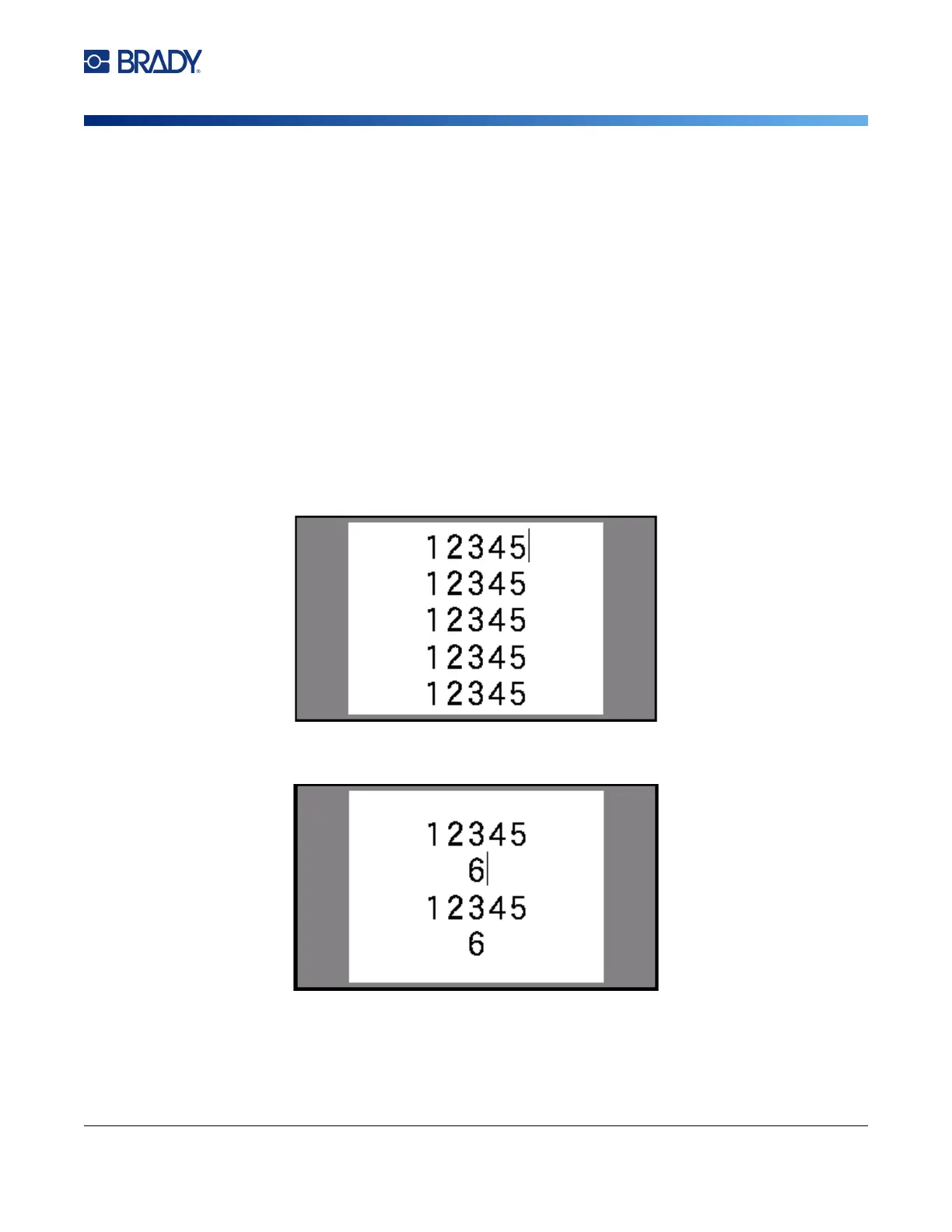

The data is repeated down the wire marker label as many times as the length of the label
allows given the font size used. The smaller the font size, the more the data is repeated.
If you press ENTER to start a new line of text, a space opens below each line of repeated data
and begins to repeat the next line of text as you enter it.
