Routine Maintenance
186
8

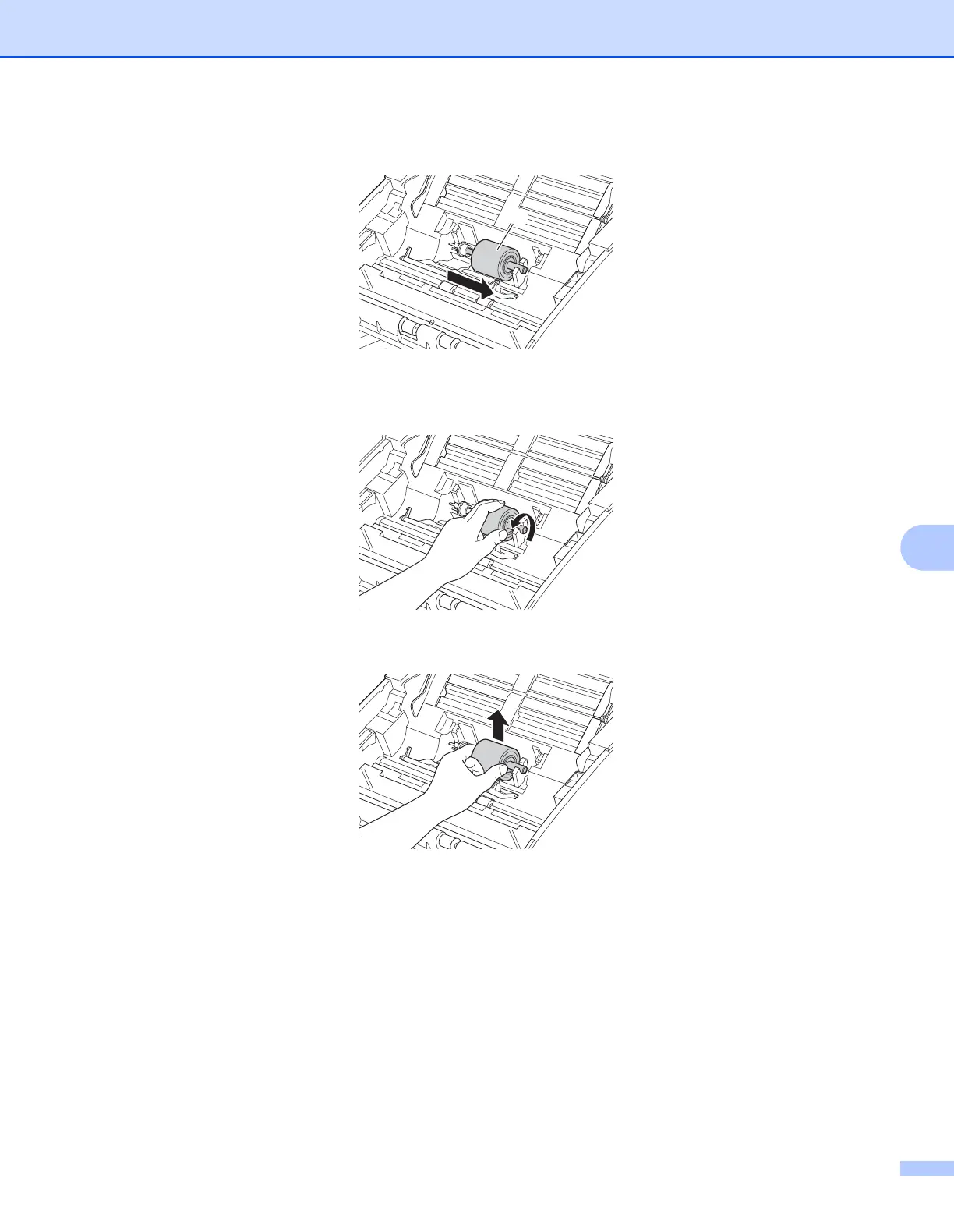

3 Slide the Pick-up Roller a all the way to the right.
4 The holder of the Pick-up Roller has a narrow opening, and the shape of the shaft of the Pick-up Roller
matches this opening. Rotate the Pick-up Roller until you can fit the shaft into the opening of the holder.
5 Pinch and pull the Pick-up Roller out of the machine.
a
