Brother MFC-L2700D Service Manual

3-51
Confidential
<Attachment Procedure>

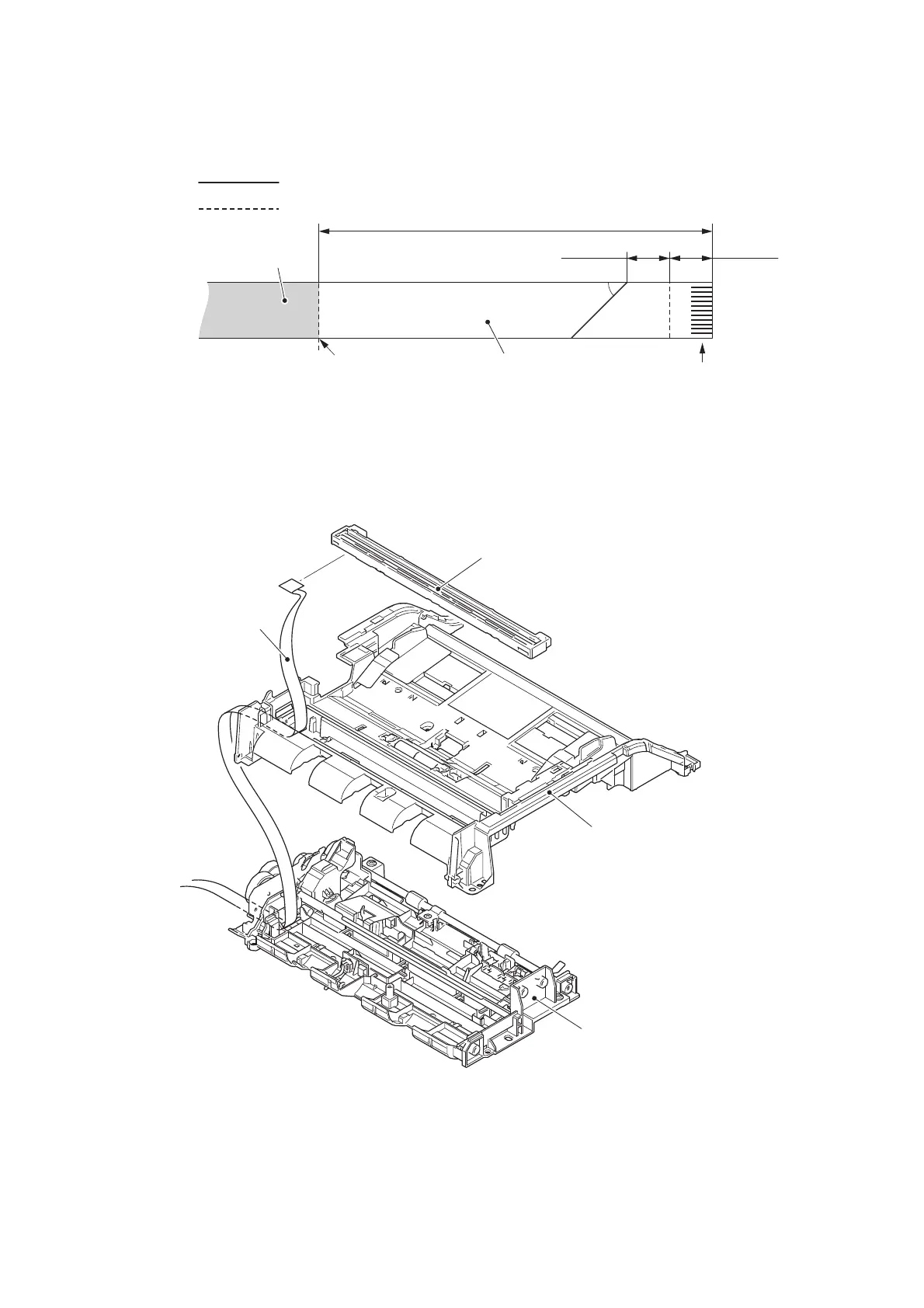

1) Fold the second side CIS flat cable as shown in the figure below.
Fig. 3-41
2) Connect the second side CIS flat cable to the second side CIS unit.
3) Pass the second side CIS flat cable through the upper document chute ASSY and the
lower document chute ASSY.
Fig. 3-42
The edge of the reinforcing tape
Second side CIS flat cable
Electrode
Mountain fold
Valley fold
CIS side
102 mm
45°
101 mm
922.5 mm
Reinforcing tape
Second side CIS unit
Second side CIS
flat cable
Upper document chute ASSY
Lower document chute ASSY

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
