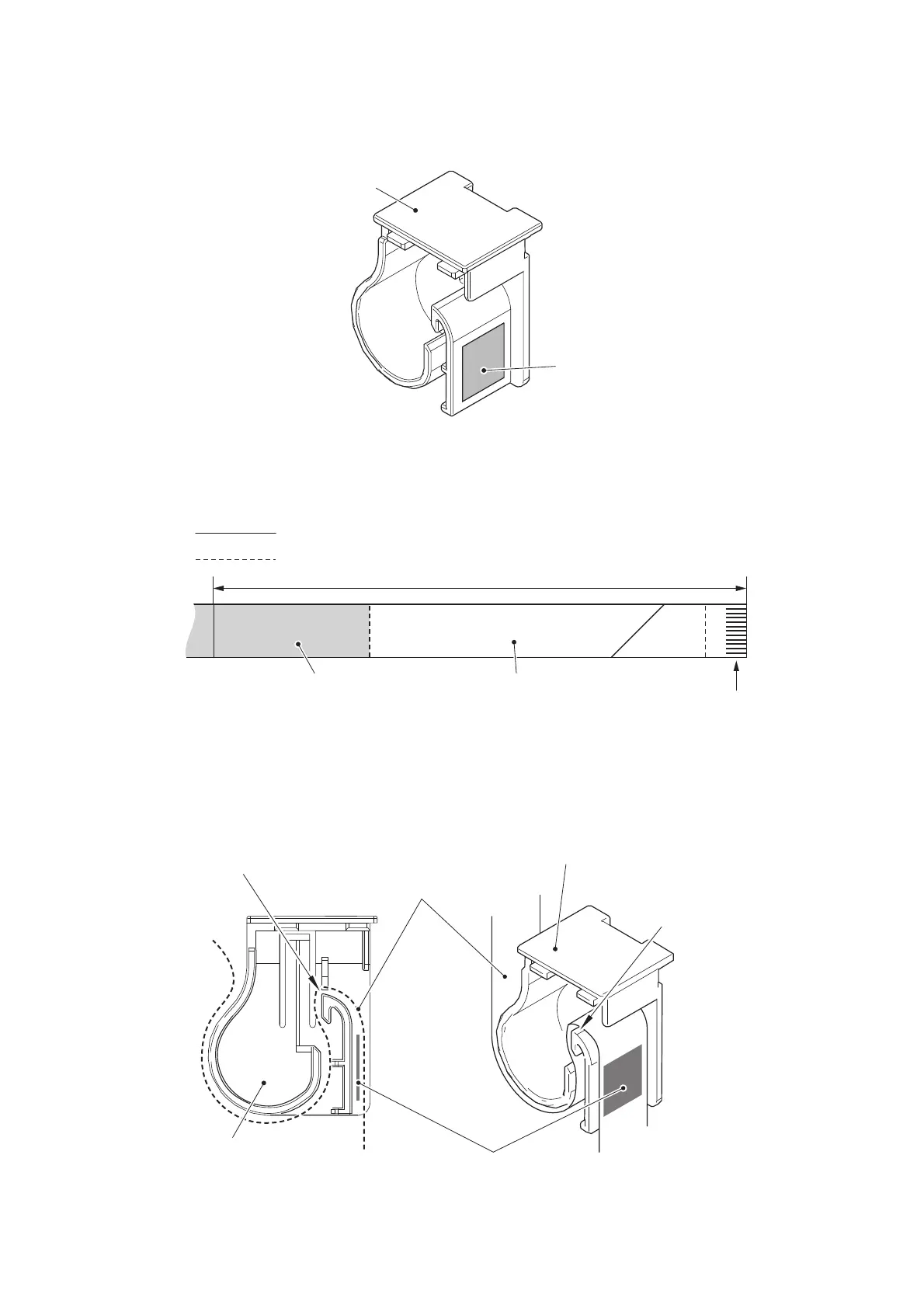

4) Attach the double-sided tape to the FFC holder ASSY as shown in the figure below.
(If the old double-sided tape remains attached, replace it with new tape.)
Fig. 3-43
5) Fold the second side CIS flat cable at 2012 mm away from the second side CIS unit
side.
Fig. 3-44
6) As shown in the illustration below, pass the second side CIS flat cable through the FFC
holder ASSY while fitting the mountain-folded section to the rib on the FFC holder ASSY.
Then secure the second side CIS flat cable with the double-sided tape attached to the
FFC holder ASSY.
Fig. 3-45
Double-sided tape
FFC holder ASSY
Reinforcing tape
Second side CIS flat cable
CIS side
Electrode
2012 mm
Mountain fold
Valley fold
FFC holder ASSY
Pass through here.
FFC holder ASSY
Rib (fit mountain-folded
section to rib)
Second side CIS flat cable
Double-sided tape
