3-53
Confidential

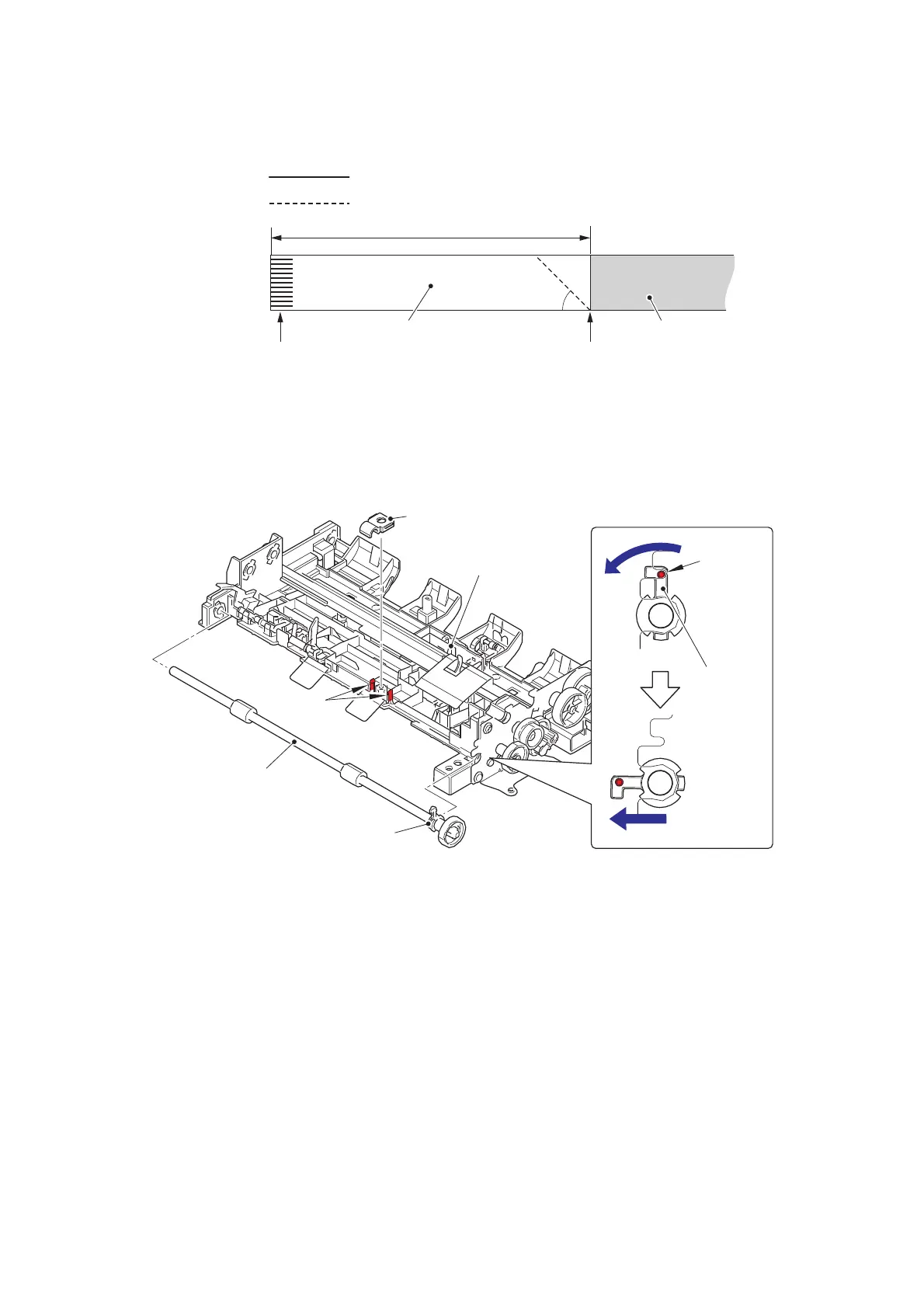

7) Fold the other end of the second side CIS flat cable at 751 mm away from the main
PCB side.
Fig. 3-46
(3) Release the hooks to remove the ejection roller bushing.
(4) Release the lock of the conductive bushing to remove the document ejection roller
ASSY from the lower document chute ASSY.
Fig. 3-47
Electrode
Second side CIS flat cable
45°
Reinforcing tape
751 mm
Mountain fold
Valley fold
Main PCB
side
The edge of the reinforcing tape
Ejection roller bushing
Hooks
Document ejection roller ASSY
Conductive bushing
Conductive
bushing
Lock
Lower document chute ASSY
