Brother MFC-L2700D Service Manual

3-54
Confidential

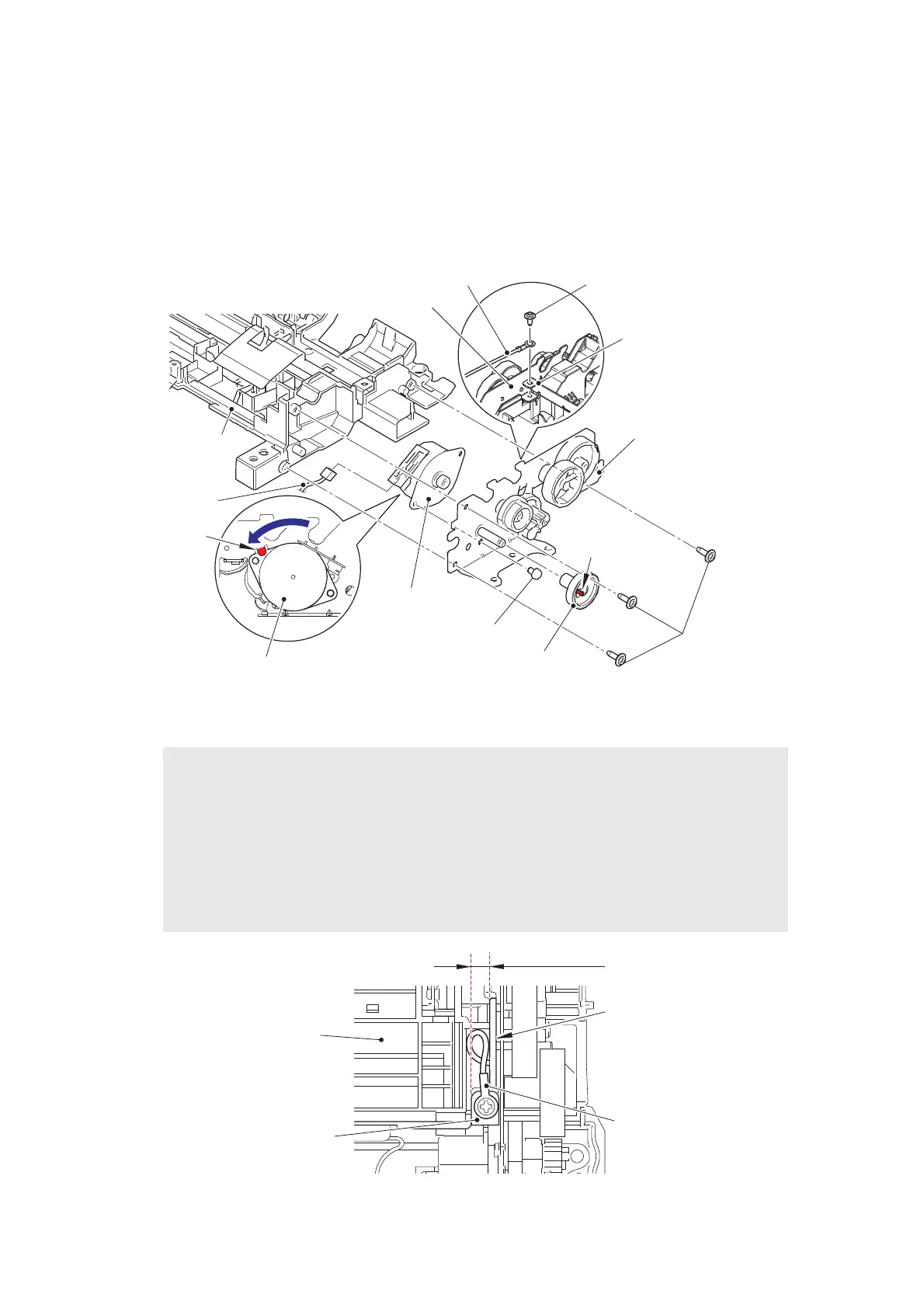

(5) Remove the taptite cup S M3x8 SR screw to remove the ADF FG harness from the drive
frame ASSY.
(6) Remove the three taptite cup B M3x10 screws to remove the drive frame ASSY from the
lower document chute ASSY. Disconnect the ADF motor harness from the ADF motor.
(7) Release the hook to remove the gear 43 from the drive frame ASSY.
(8) Remove the screw pan (S/P washer) M3x6 screw. Turn the ADF motor in the direction of
the arrow, and release it from the claw to remove it from the drive frame ASSY.
Fig. 3-48
Harness routing: Refer to “8. ADF unit”.
Fig. 3-49
Assembling Note:
• When attaching the drive frame ASSY, make sure that the lower chute support plate is
above the drive frame ASSY.
• Tighten the lower chute support plate and ADF FG harness together with a taptite cup
S M3x8 SR screw.
• Make sure that the terminal of ADF FG harness is located between the rib of the lower
document chute ASSY and the left side of the lower chute support plate as shown in
the figure below.
Taptite cup S M3x8 SR
Gear 43
Drive frame ASSY
Taptite cup B
M3x10
Screw pan (S/P washer) M3x6
Hook
ADF motor
ADF motor
ADF FG harness
Lower document
chute ASSY
ADF motor
harness
Claw
Drive frame ASSY
Lower chute support plate
Terminal of ADF FG harness
is within this area.
Rib
Terminal of ADF FG harness
Lower document chute ASSY
Lower chute support plate

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
