Brother MFC-L2700D Service Manual

3-68
Confidential
3) Attach the 12 mm x 12 mm double-sided tape to the CIS carriage at positions shown in
the figure below. (If the old double-sided tape remains attached, replace it with a new
tape.)
4) Connect the first side CIS flat cable to the first side CIS unit.
5) Attach the first side CIS unit to the CIS carriage.
6) Peel the release liner of the double-sided tape attached to the CIS carriage, and secure
the first side CIS flat cable with the tape as shown in the figure below.

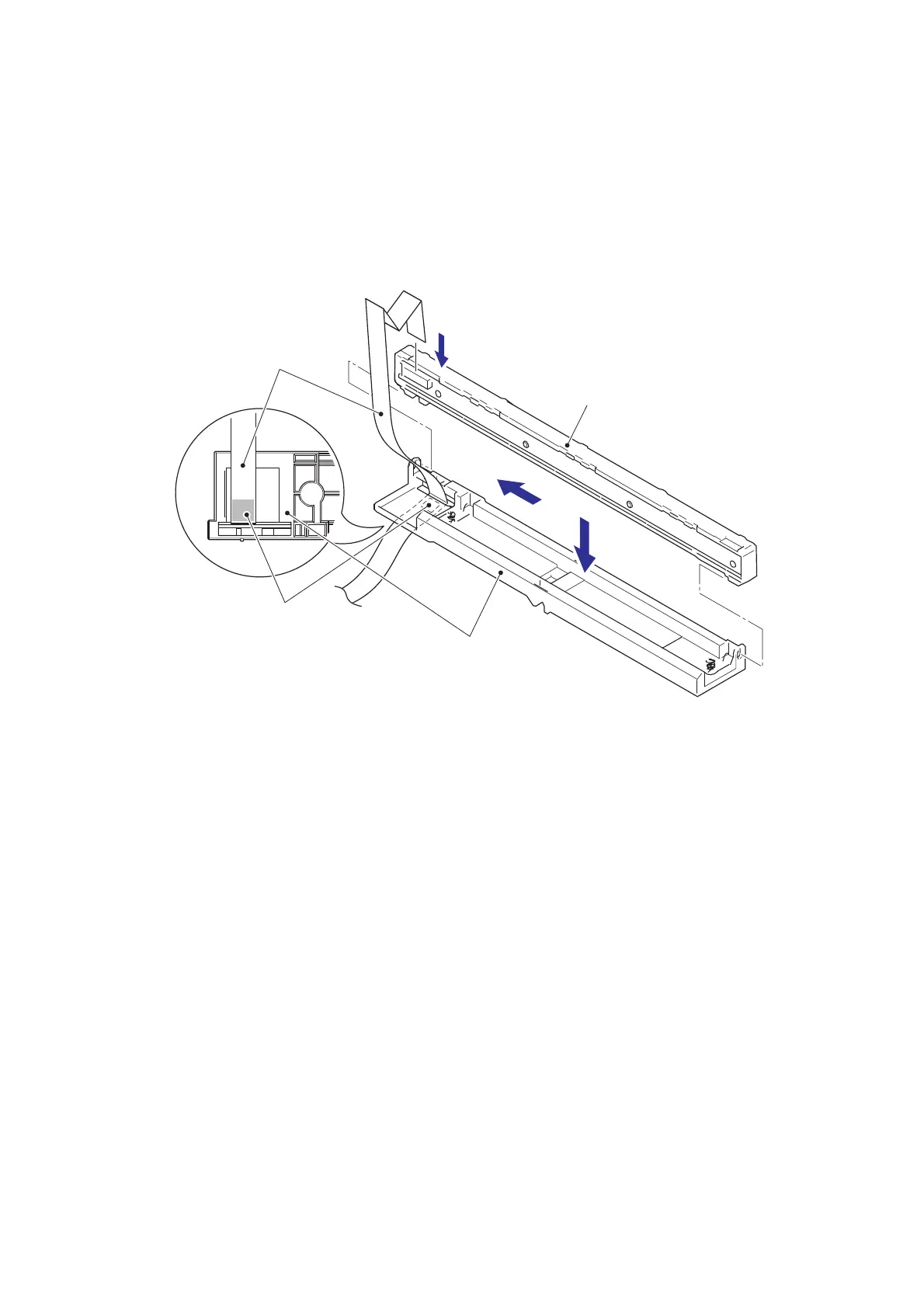

Fig. 3-65
First side CIS unit
First side CIS flat cable
CIS carriage
Double-sided tape

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
