Brother MFC-L2700D Service Manual

3-67
Confidential
<Attachment Procedure>

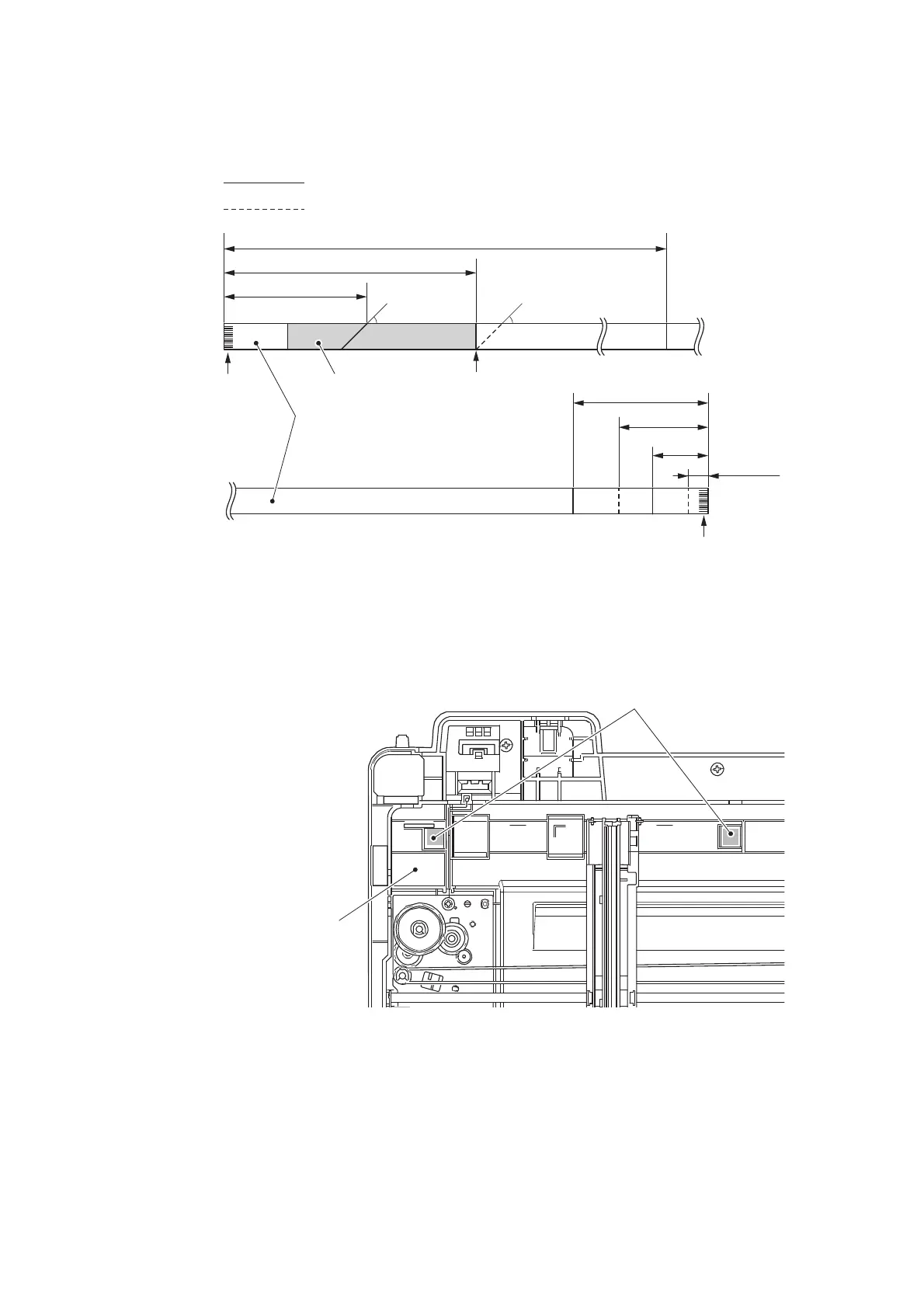

1) Fold the first side CIS flat cable as shown in the illustration below.
Fig. 3-63
2) Attach the two pieces of 12 mm x 12 mm double-sided tape to the document scanner
bottom cover ASSY at positions shown in the figure below. (If the old double-sided tape
remains attached, replace it with a new tape.)
Fig. 3-64
Mountain fold
Valley fold
Reinforcing tape
336 mm
45°
127 mm
72 mm
Electrode
Electrode
68 mm
45 mm
28 mm
CIS side
Main PCB
side
The edge of the
reinforcing tape
45°
102 mm
First side CIS flat cable
Double-sided tapes
Document scanner bottom cover ASSY

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
