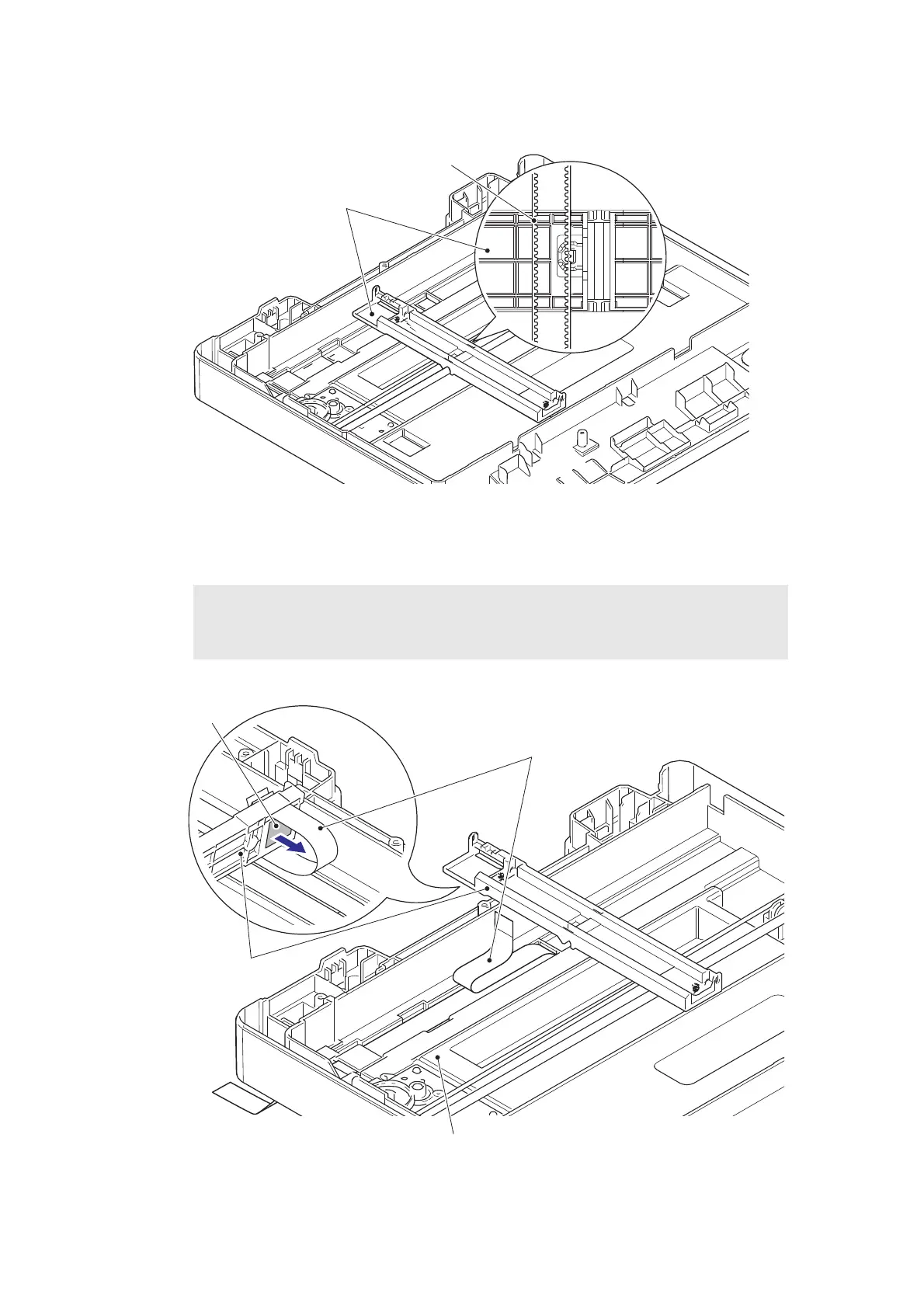

(6) Remove the CIS carriage from the CIS drive belt.
Fig. 3-61
(7) Remove the first side CIS flat cable attached on the back of the CIS carriage from the
double-sided tape.
(8) Remove the first side CIS flat cable from the document scanner bottom cover ASSY.
Fig. 3-62
Note:
• Be sure to replace the double-sided tape with a new one, after taking off the first
side CIS flat cable from the double-sided tape.
CIS carriage
CIS drive belt
First side CIS flat cable
CIS carriage
Double-sided tape
Document scanner bottom cover ASSY

Brother MFC-L2700D Specifications

General

Print Technology	Laser
Print Resolution	Up to 2400 x 600 dpi
Duplex Printing	Yes
Paper Input Capacity	250 sheets
Monthly Duty Cycle	Up to 10, 000 pages
Functions	Print, Copy, Scan, Fax
ADF Capacity	35 sheets
Memory	32 MB
Fax Speed	33.6 Kbps
Print Speed	Up to 27 ppm
Connectivity	USB 2.0
Scanner Type	Flatbed
Copy Speed	Up to 27 cpm
Scan Resolution	Up to 600 x 2400 dpi
Display	2-line LCD
