106
HYPERION User Manual Bruker Optik GmbH
Operation 4
13. Rotate the revolving nose piece until the GIR objective is in the front.
14. Fasten the four Allen screws at the bottom side of the GIR objective. (See fig. 4.10.)
In doing so, do not misalign the mirror optics again!
15. Remove the GIR objective from the revolving nosepiece.
16. Fit the bottom part of the housing on the objective and fasten it using the four slot-
ted-head screws. See fig. 4.9.

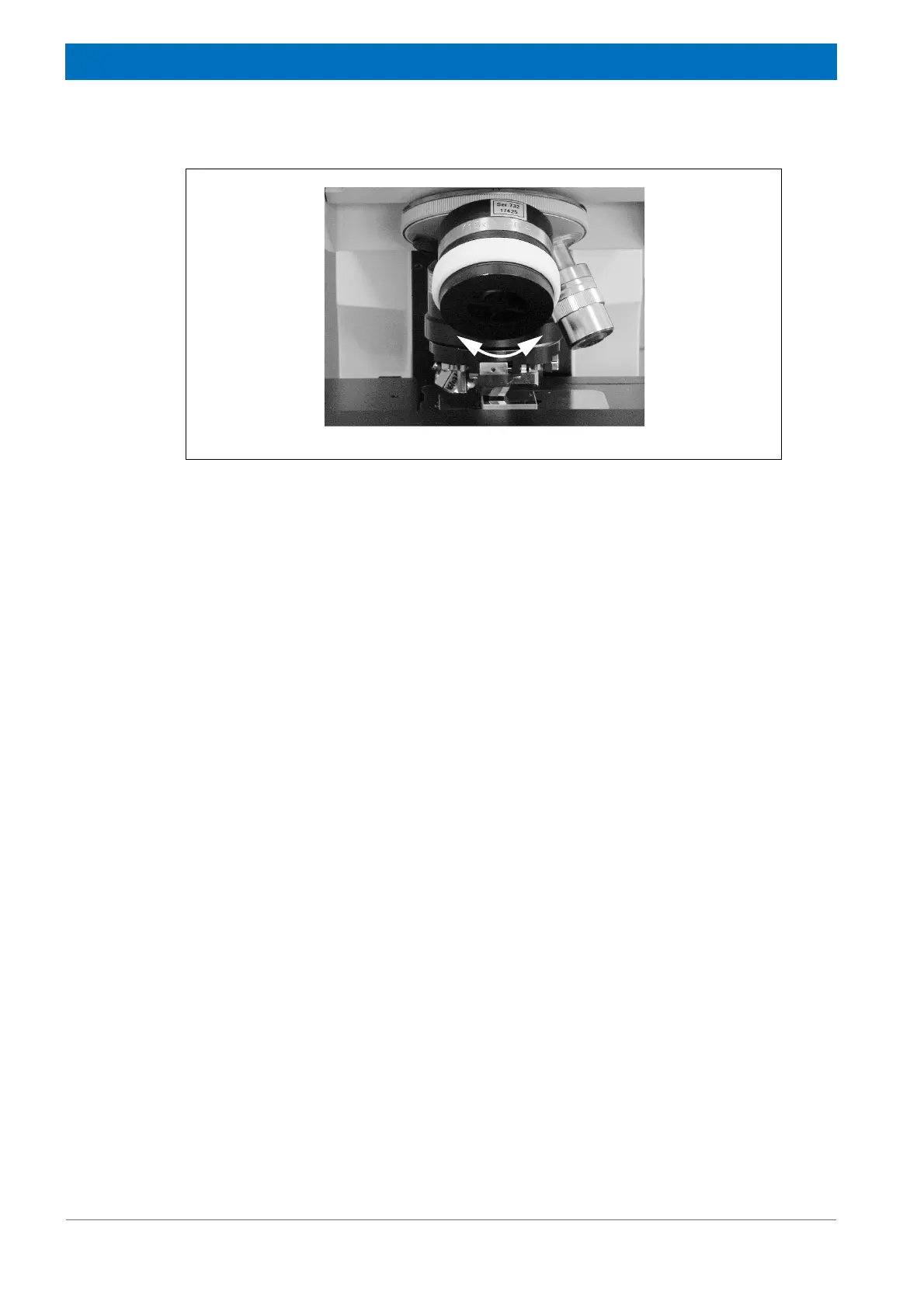

Figure 4.11: Adjusting the orientation of the mirror optics
