HYPERION User Manual Bruker Optik GmbH
Operation 4
6

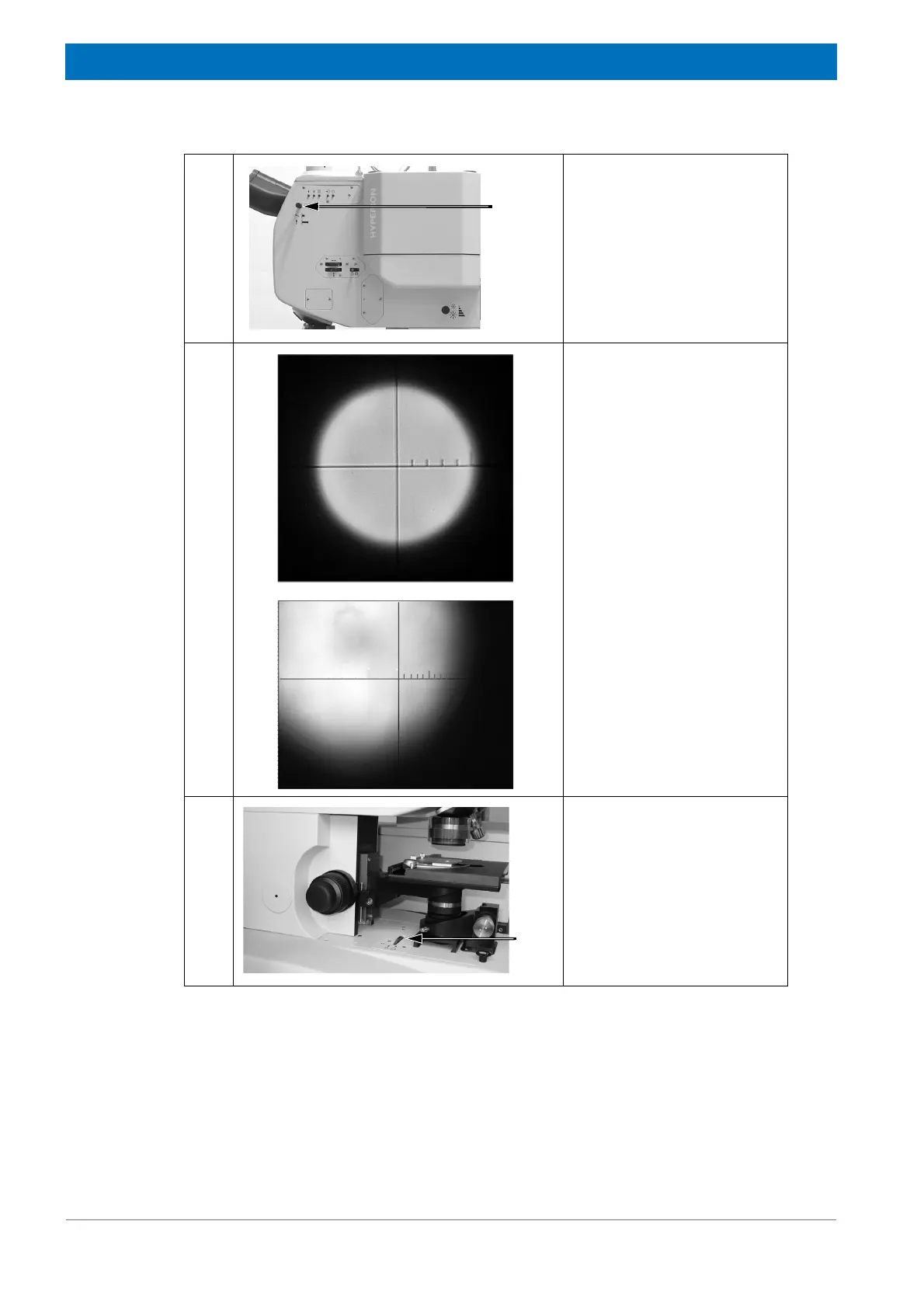

Make sure that the light path
selector lever
⑤ is pushed in
completely, i.e. the light is
routed to the binocular.
7
View through the binocular.
When you see a sharp image
of a bright circle which is
aligned to the center of the
cross hairs, then the con-
denser is set optimally.
When you see an unsharp
image and / or the bright cir-
cle is not aligned to the center
of the cross hairs, then the
condenser height needs to be
adjusted and / or the con-
denser needs to realigned in
x- and / or y-direction.
8
When the check has revealed
that the condenser is set opti-
mally, rotate the thumb wheel
⑥ in the arrow direction of
the big circle to move the pin-
hole aperture out of the beam
path again.
