Bruker Optik GmbH HYPERION User Manual
Operation 4

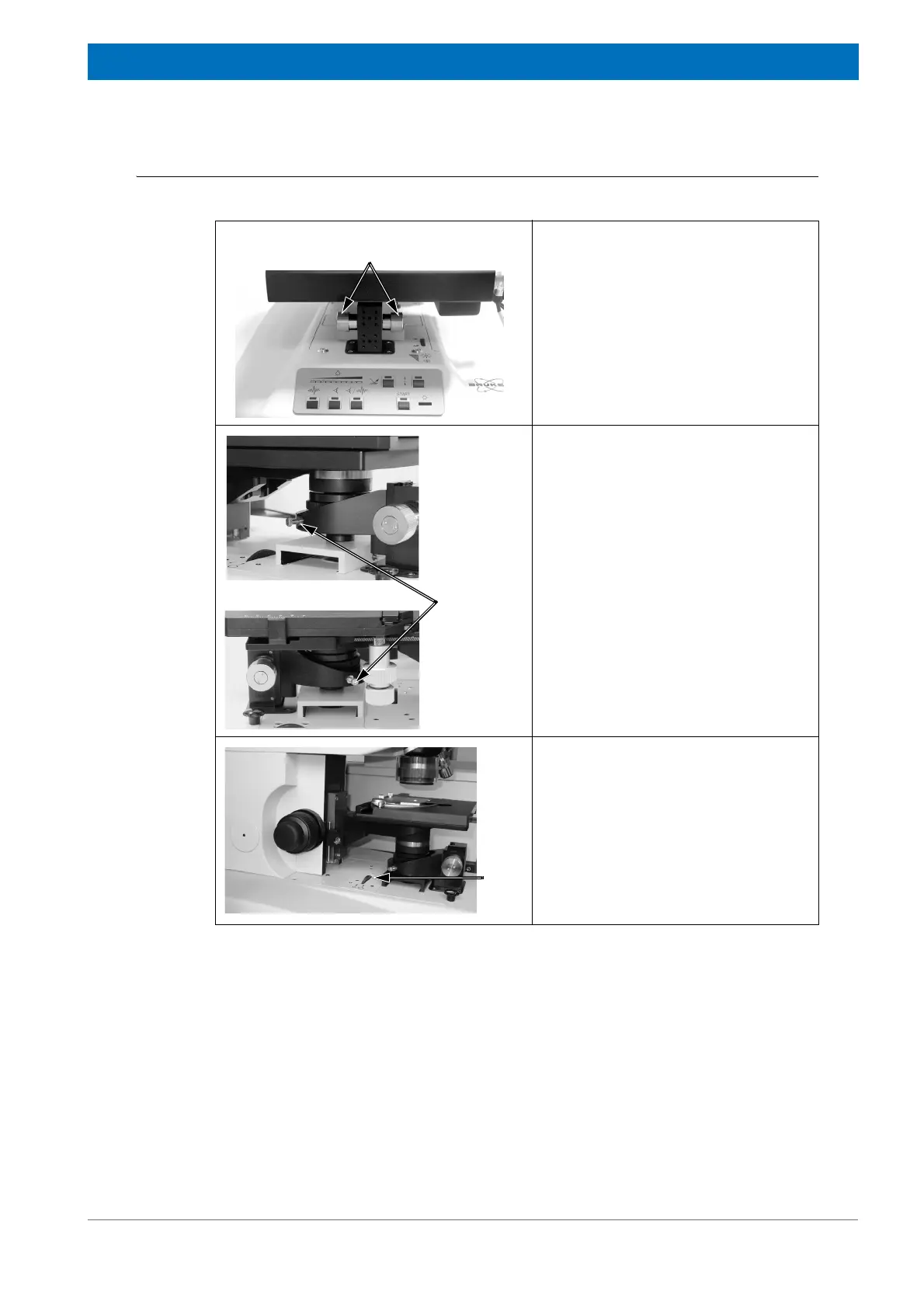

Correcting the condenser setting
In case of an unsharp image, focus
on the bright circle using the con-
denser focussing knobs
①.
In case the circle is not aligned to
the center of the cross hairs, move
the condenser in x- and/or y-direction
using the centering screws
② in until
the circle is correctly aligned to the
cross hairs center.
Attention: After having set the con-
denser correctly, do not forget to move
the pinhole aperture out of the beam
path again by rotating the thumb wheel
③ in the arrow direction of the big cir-
cle.
