SONORA - CARATTERISTICHE GENERALI
56
VIDEO DOOR ENTRY SYSTEM - GENERAL FEATURES
D45

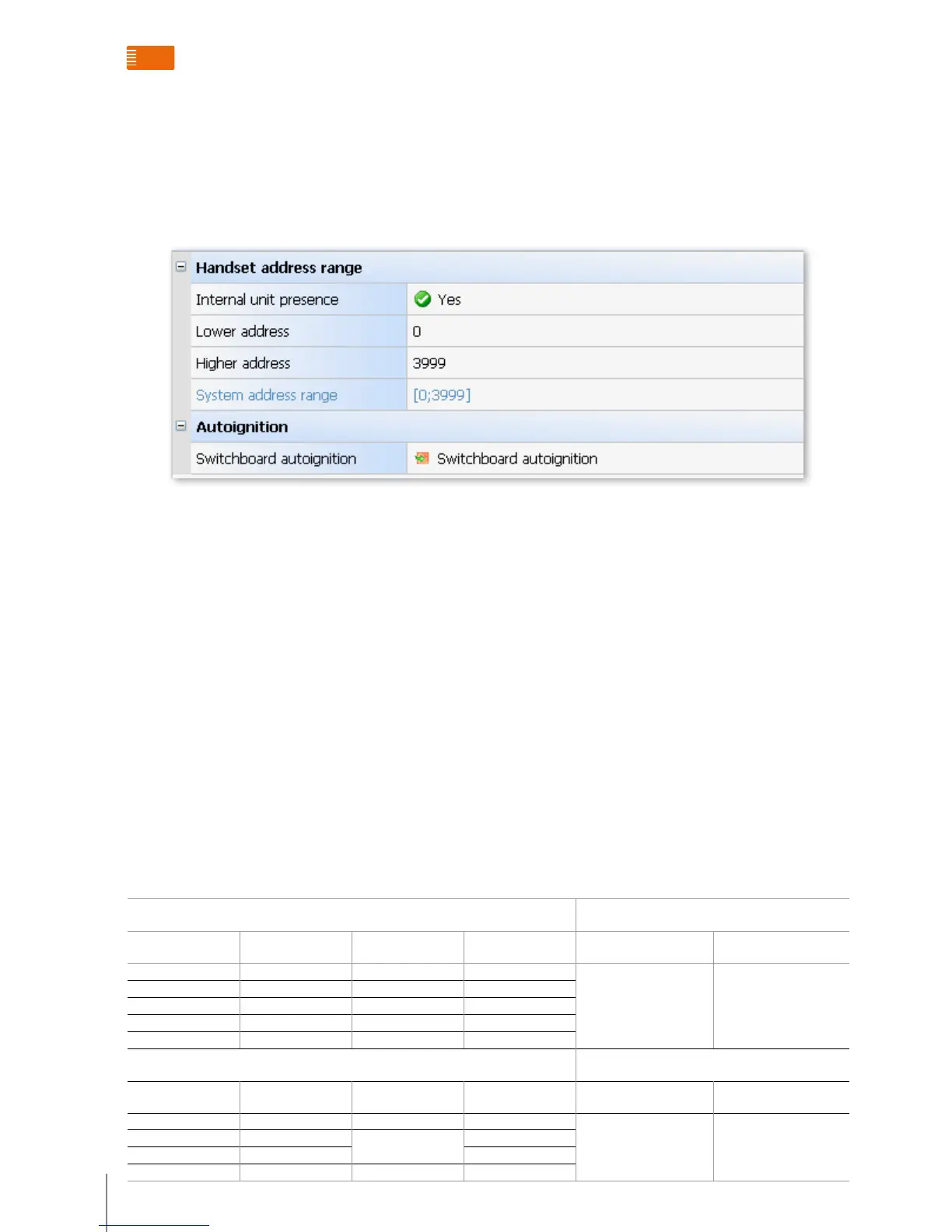

The Autoignition option uses the default value of Switchboard autoignition.
The Entrance panel presence option is used to select whether D45/IP interface connects to the main Backbone/Main EP or
EP. If so, please select Yes, or if it’s only used to connect a Riser and there is no EP in the unit, then select NO. On selecting No,
the Lower address, Higher address, and system address range will become grey, which means that they cannot be set. The
Lower address option is used to input in the lowest address (range 1 to 80. It must be smaller than the higher address) used by
interface D45/IP to connect the main Backbone to the Main EP or EP.
The Higher address option is used to input in the highest address (range 1 to 80. It must be higher than the lower address) used
by interface D45/IP to connect the main Backbone to the Main EP or EP. The system address range displays the Backbone/Main
EP or EP address range set for the above two options.
Remarks. With D45/IP interface as part of the network, the Switchboard must use SF4, when the distribution address for
Backbone/Main EP and EP may be different from that used for a floor shunt. When using IT1 and the floor shunt, the EP address
range is 1 to 80, and so is the EP. But when using 323011 and EP jointly use the same address section, namely that main EP+EP
address range is 1 to 80 (All the main EPs and EPs in the system are identified with line address from 1 to 80 that can’t be
repeated).
example
If the first D45/IP interface 1 connects 2 main EPs and 3 Risers (Riser 1, Riser 2 and Riser 3), then each Riser will be connected to
one EP. If the second D45/IP interface 2 connects 0 main EP and Risers (Riser 4, Riser 5 and Riser 6), then Riser 4 and Riser 6 are
connected to 1 EP and Riser 5 is connected to 2 EPs:
SET THE ENTRANCE PANL OPTION UNDER D45/IP INTERFACE
1
Device Locally set address Congure EP deviation
address on323003
Relevant system address Lower address Higher address
The 1
st
main EP 1 —— 1
1 5
he 2
nd
main EP 2 —— 2
Riser 1 EP 1 2 1+2=3
Riser 2 EP 1 3 1+3=4
Riser 3 EP 1 4 1+4=5
THE ENTRANCE PANEL OPTION UNDER D45/IP INTERFACE 2
Device Locally set address
Congure EP deviation
address on 323003
Relevant system address Lower address Higher address
Riser 4 EP 1 5 1+5=6
6 9
The 1
st
EP of Riser 5 1
6
1+6=7
The 2
nd
EP of Riser 5 2 2+6=8
Riser 6 EP 1 8 1+8=9
323011 - D45/ip interFace
System accessories functions overview
