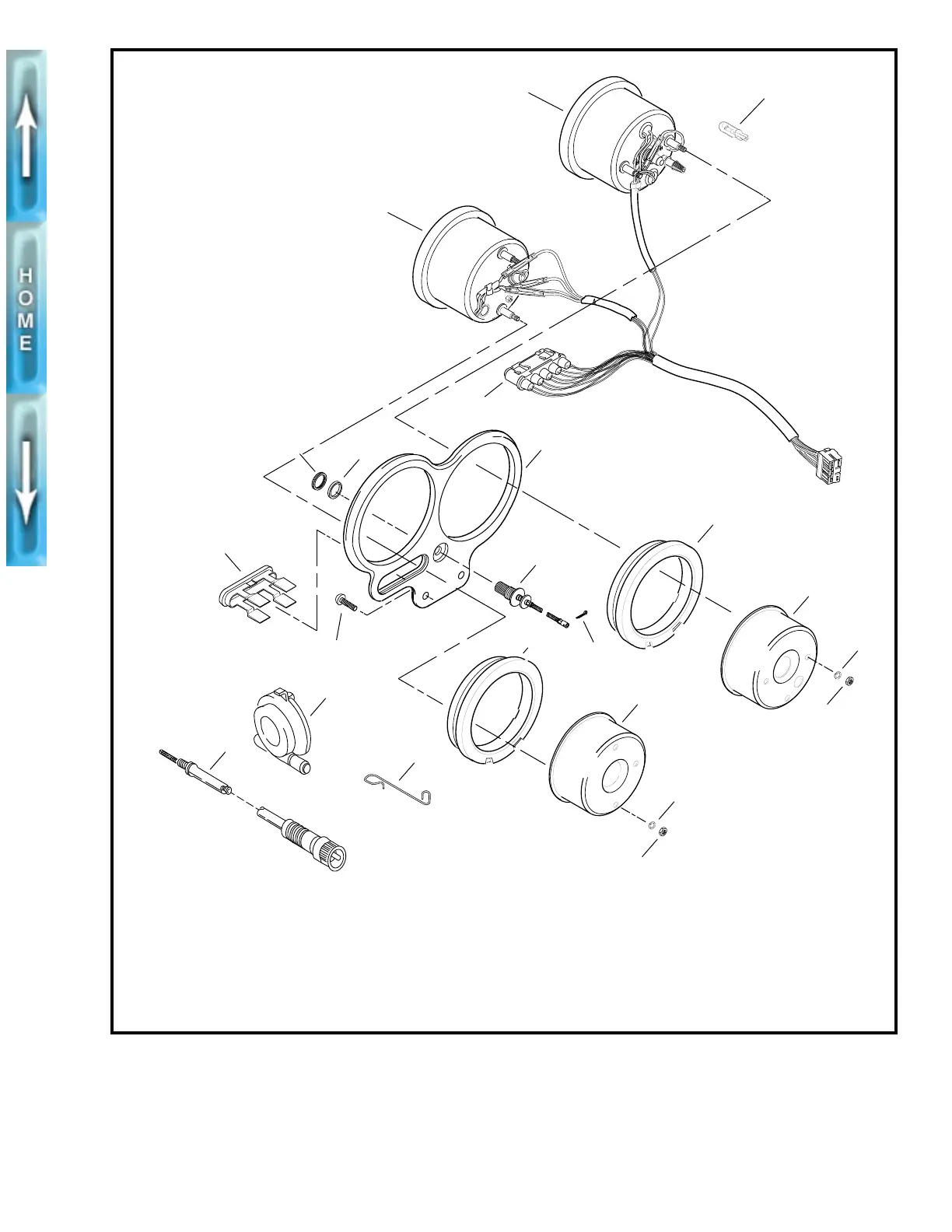

Figure 2-55. Speedometer and Tachometer
1. Speedometer
2. Tachometer
3. Bulb
4. Indicator light assembly
5. Knurled nut
6. Washer
7. Screw (2)
8. Instrument support
9. Odometer reset cable
10. Cotter pin
11. Rubber cushion (2)
12. Speedometer cover
13. Tachometer cover
14. Lockwasher (3)
15. Nut (2)
16. Wire guide
17. Speedometer drive
18. Speedometer cable
19. Indicator lamp bezel
b0214x2x
1
2
3
4
19
5
6
8
9
11
10
12
14
15
14
15
11
13
16
17
7
18

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
