7-37
TURN SIGNALS
REMOVAL
Front
1. Remove headlamp mounting screws (metric) and washers.
2. See Figure 7-38. Disconnect bullet connectors (5).
3. Remove screws (1) (metric) and locknuts (6) (metric).
4. Remove turn signals and standoffs (4).
Rear
1. See Figure 7-38. Cut cable straps to access bullet con-
nectors under tail section. Disconnect bullet connectors.
2. Remove screws (9) (metric) and nuts (6) (metric).
3. Remove turn signals from tail lamp bracket (7).
INSTALLATION
NOTE
New turn signal bulbs may be installed by removing screw on
turn signal lens.
Front
1. See Figure 7-38. Install turn signals and standoffs using
screws (1) (metric) and nuts (6) (metric).
NOTE
Install turn signal with lens drain hole facing downward.
2. Attach bullet connectors to wiring harness as shown in
Figure 7-34.
3. Install headlamp housing using two screws (metric) and
washers. Tighten to 5-7 ft-lbs (6.8-9.5 Nm).
1WARNING
Check for proper turn signal operation before riding
motorcycle. Visibility is a major concern for motorcy-
clists. Failure to have proper turn signal operation could
lead to personal injury.
4. Check turn signals for proper operation.
Rear
1. See Figure 7-38. Install turn signals using screws (9)
(metric) and nuts (6) (metric).
NOTE
Install turn signal with lens drain hole facing downward.
2. Attach bullet connectors to wiring harness as shown in
Figure 7-36.
3. Cable strap turn signal wires into a bundle beneath the
tail section.
1WARNING
Check for proper turn signal operation before riding
motorcycle. Visibility is a major concern for motorcy-
clists. Failure to have proper turn signal operation could
lead to personal injury.
4. Check turn signals for proper operation.

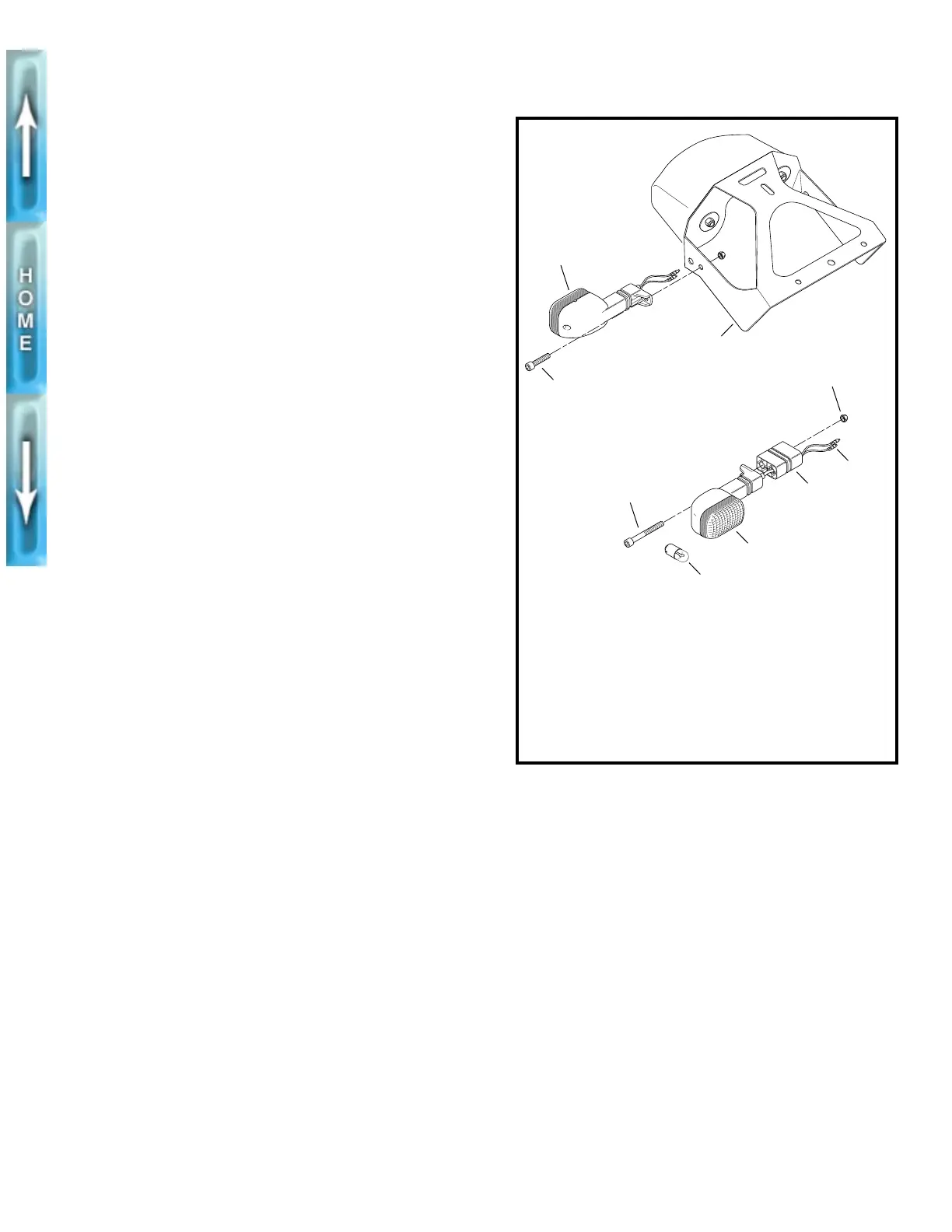

Figure 7-38. Turn Signals
b0232x7x
8
7
4
3
2
1
6
9
1. Screw (2) (metric)
2. Bulb (4)
3. Turn signal (right
front or left rear)
4. Turn signal standoff
(2, front signals only)
5. Bullet connectors
(2 per signal)
6. Locknut (4) (metric)
7. Tail lamp bracket
8. Turn signal (left front or
right rear)
9. Screw (2) (metric)
5

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
