33
HANDLEBAR SWITCHES
MODEL YEAR CHANGE
All 1997 model year motorcycles use new handlebar
switches. The switches feature new icons, connectors and a
different pin numbering sequence.
NOTE
All HANDLEBAR SWITCHES, REMOVAL and HANDLEBAR
SWITCHES, INSTALLATION procedures remain the same.
The new switch assemblies are interchangeable between
1996 and 1997 models if the corresponding connector on the
wiring harness is changed.
See WIRING HARNESS on page 37 for more information.
Right Handlebar Switch
See Figure 25. The right handlebar switch [P1] contains:
●
Engine stop switch (ignition ON or OFF)
●
Electric starter switch
Left Handlebar Switch
See Figure 26. The left handlebar switch [P6] contains:
●
Passing lamp switch
●
Headlamp dimmer switch (headlamp HIGH or LOW
beam)
●
Turn signal switch
●
Horn switch

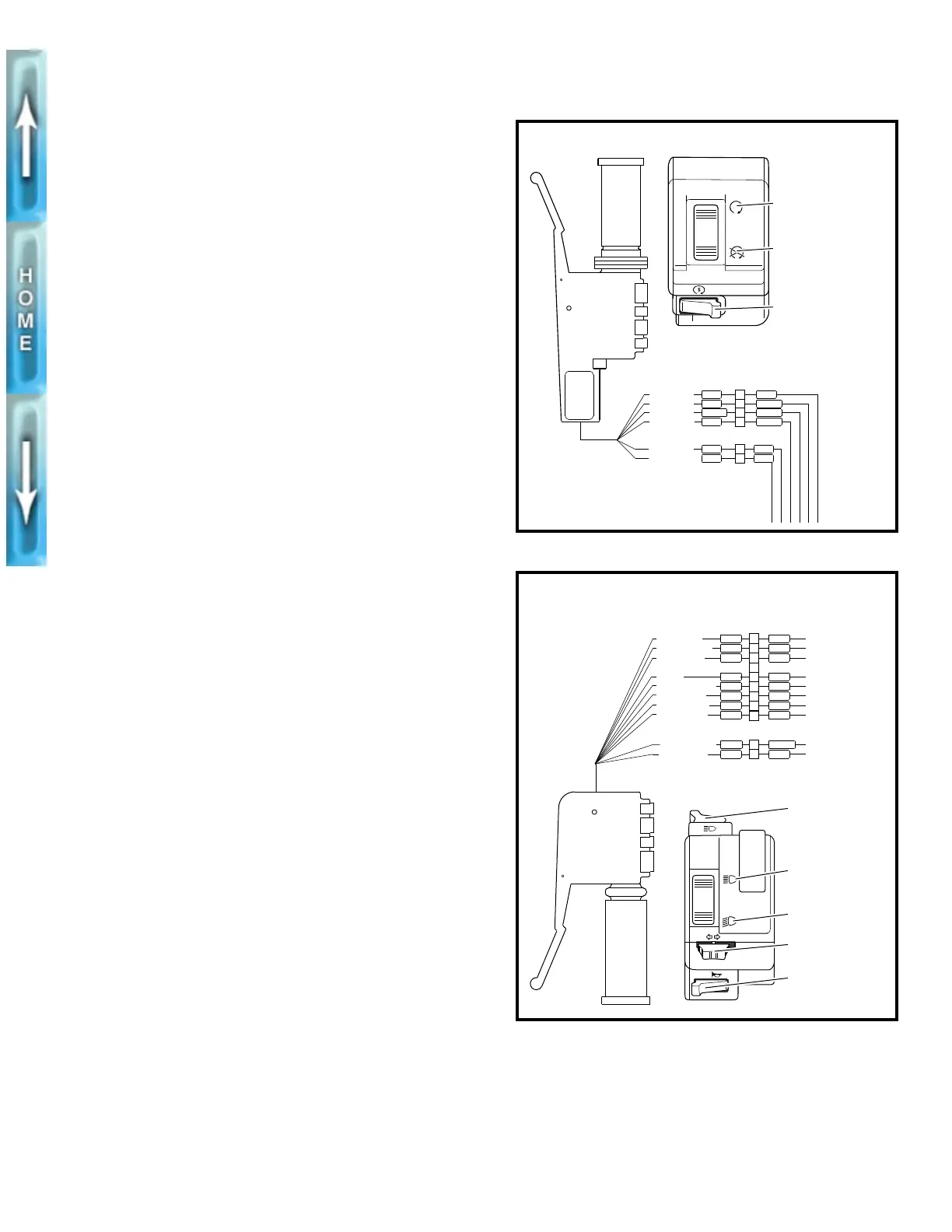

Figure 25. Right Handlebar Switch [P1]
Figure 26. Left Handlebar Switch [P6]
GY
W/BK
W/BK
BK/R
1
3
2
4
GN/BK
W/R
BE
Y/R
P1
P2
BRAKE SWITCH
RIGHT HANDLEBAR
SWITCH CONNECTOR
1
2
O/WO/W
R/YR/Y
TO STOPLIGHT
ACC POWER
IGN MODULE
FROM (2)
TO STARTER
IGN POWER
Ignition ON
b0279x7x
Ignition OFF
Electric starter
BK
1
2
BK
TN/GN
R/BE
P6
P5
CLUTCH SWITCH
LEFT HANDLEBAR
SWITCH CONNECTOR
LOW BEAM
HIGH BEAM
RIGHT TURN
LIGHT POWER
LEFT TURN
FROM FLASHER
HORN POWER
HORN
TO GROUND
FROM IGN RLY
1
3
4
5
6
7
8
2
W
Y
O/W
Y/BK
V
BN
BE
W
BK
BN
LT.B E
O
BE
GN
GY
V/BN
9
Passing lamp
b0274x7x
HIGH beam
LOW beam
Turn signals
Horn
