7-35
TAIL LAMP
REMOVAL/DISASSEMBLY
Tail Lamp
1. See Figure 7-35. If necessary, remove tail lamp bulb (3).
a. Remove two screws (1) to detach tail lamp lens.
b. Turn bulb counterclockwise and remove.
2. Remove two locknuts (7) (metric) and washers (6).
3. Disconnect the three terminals and remove tail lamp.
Tail Lamp Bracket
1. Remove seat and tail section. See TAIL SECTION,
REMOVAL in Section 2.
2. See Figure 7-36. Cut cable straps holding tail lamp wiring
harness to rear frame. Detach connector [P11] from main
wiring harness.
3. See Figure 7-35. Remove seat wing screw (9).
4. Remove bolt (4) to detach bracket from frame.
5. Remove turn signals. See TURN SIGNALS, REMOVAL
on page 7-37.
6. Remove tail lamp.
7. Remove reflectors (8).
ASSEMBLY/INSTALLATION
Tail Lamp Bracket
1. See Figure 7-35. Install reflectors (8).
2. Install tail lamp with washers (6) and locknuts (7) (metric).
3. Install turn signals. See TURN SIGNALS, INSTALLA-
TION on page 7-37.
4. Attach bracket (5) to frame with bolt (4) and seat wing
screw (9).
5. Use new cable straps to secure tail lamp wiring harness
to rear frame. Attach connector [P11] to main wiring har-
ness. See Figure 7-36.
6. Install tail section and seat. See TAIL SECTION, INSTAL-
LATION in Section 2.
1WARNING
Check for proper tail lamp and turn signal operation
before riding motorcycle. Visibility is a major concern for
motorcyclists. Failure to have proper lamp operation
could lead to personal injury.
7. Check tail lamp and turn signals for proper operation.
8. Use new cable straps to bundle the tail lamp wiring har-
ness under the tail section.

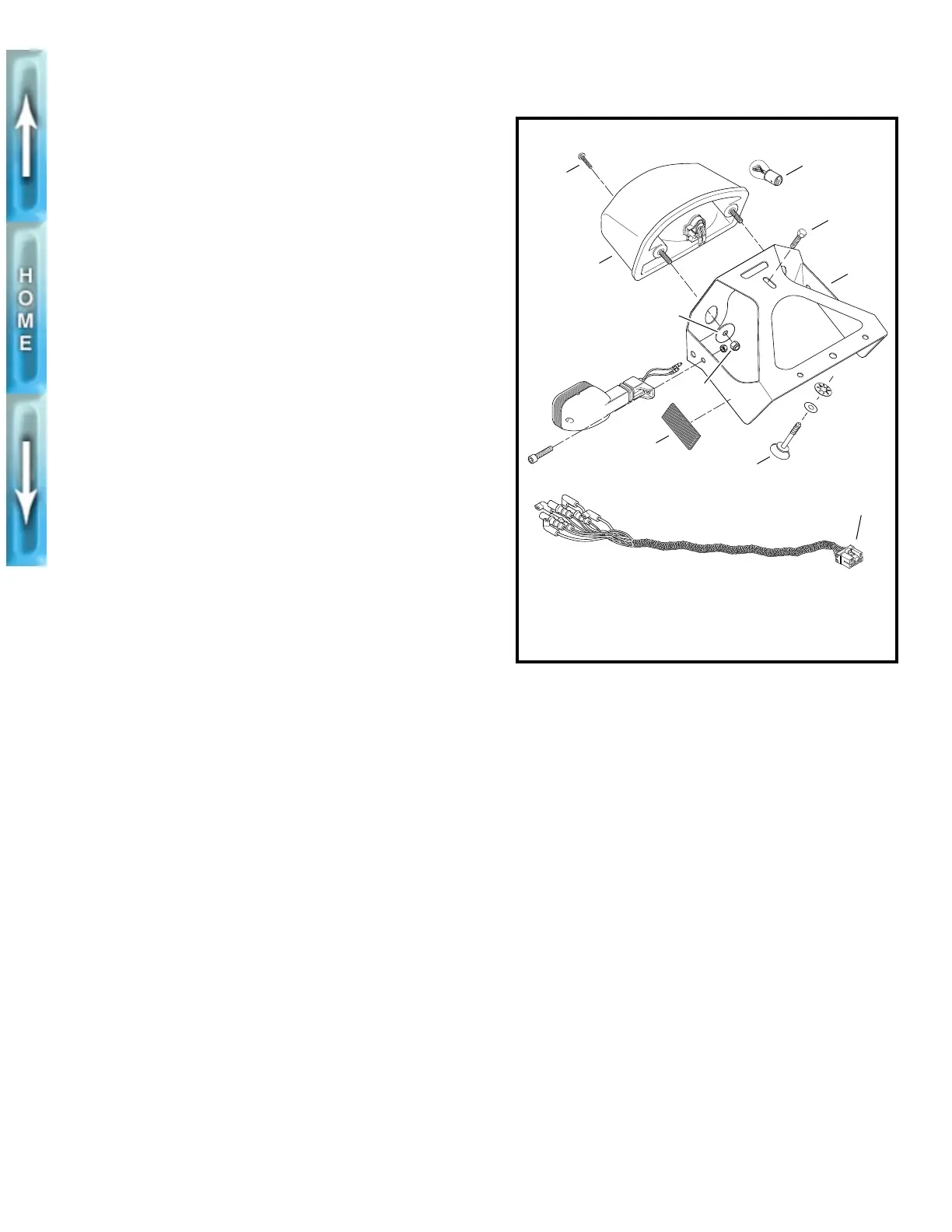

Figure 7-35. Tail Lamp
b0234x7x
1. Screw (2)
2. Tail lamp
3. Tail lamp bulb
4. Bolt
5. Tail lamp bracket
1
2
8
9
3
4
5
6
7
10
6. Washer (2)
7. Locknut (2) (metric)
8. Reflector (2)
9. Wing screw
10. Tail lamp connector [P11]
