2-58
SIDE STAND
GENERAL
The side stand is located on the left side of the motorcycle.
The side stand swings outward to support the motorcycle for
parking.
Test the side stand in the following manner. Without vehicle
weight resting on it, side stand should move freely into
extended (down) and retracted (up) positions.
REMOVAL/DISASSEMBLY
1. See Figure 2-68. Remove spring (6) from side stand and
spring pin (5).
2. Remove retaining clip (7) and pivot pin (8). Detach side
stand from frame.
3. Remove screw (2) and side stand dragger (1).
4. Remove bumper (3) from frame.
ASSEMBLY/INSTALLATION
1. See Figure 2-68. Attach bumper (3) to frame.
2. Attach side stand dragger (1) to side stand with screw (2).
3. Install side stand using pivot pin (8) and retaining clip (7).
4. Connect spring (6) to side stand and spring pin (5).
1WARNING
● If the side stand is not in the full forward position
when vehicle weight is rested on it, the vehicle could
fall over, possibly causing personal injury.
● Always park motorcycle on a level, firm surface.
Vehicle weight could cause motorcycle to fall over,
possibly causing personal injury.
● Be sure side stand is fully retracted before riding the
motorcycle. If side stand is not fully retracted during
vehicle operation, it could contact the road surface
causing a momentary disturbance before retracting.
This momentary disturbance could distract the rider,
possibly causing loss of vehicle control and per-
sonal injury.

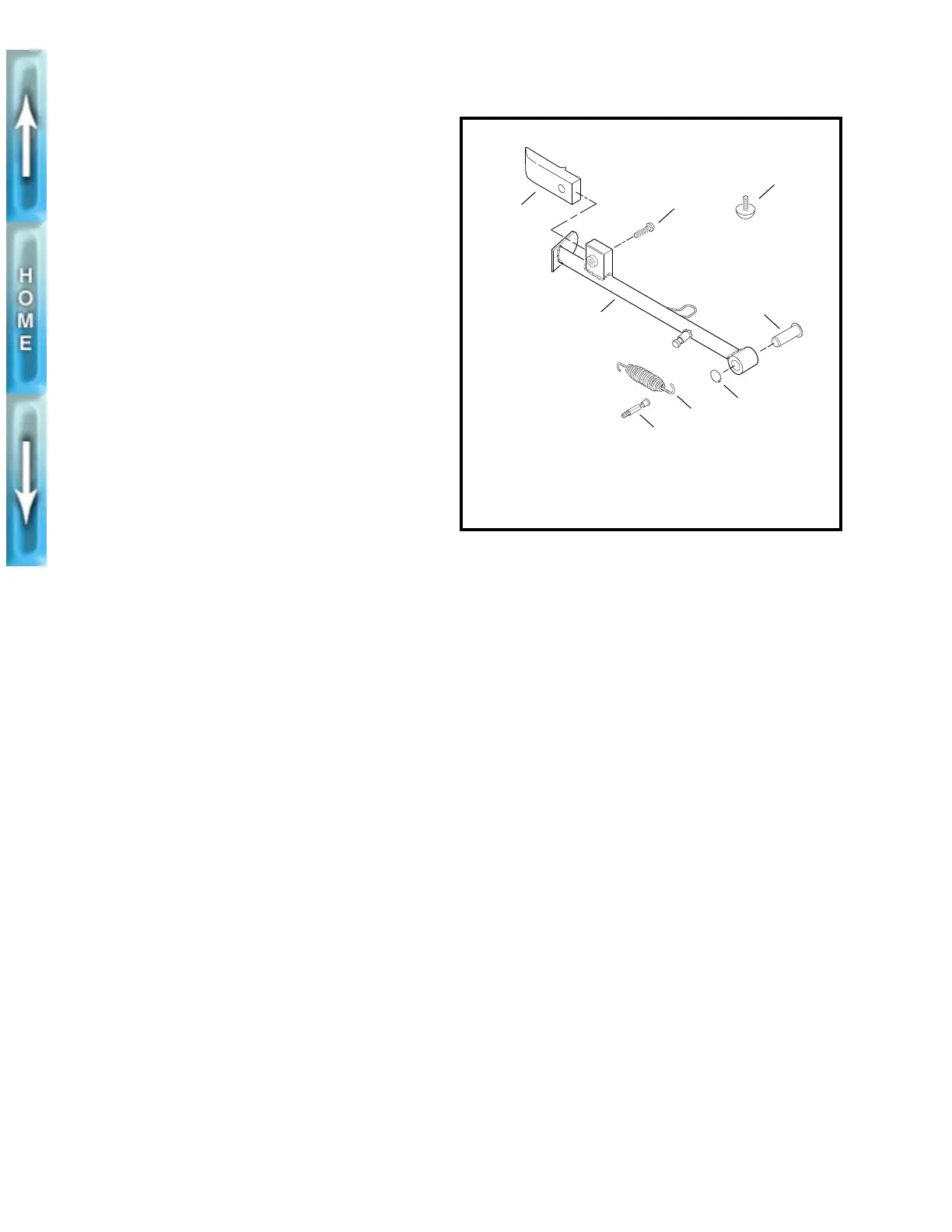

Figure 2-68. Side Stand
b0219x2x
1. Side stand dragger
2. Screw
3. Bumper
4. Side stand
5. Spring pin
6. Spring
7. Retaining clip
8. Pivot pin
1
2
4
3
8
7
5
6
