Buell S1 Lightning User Manual

4

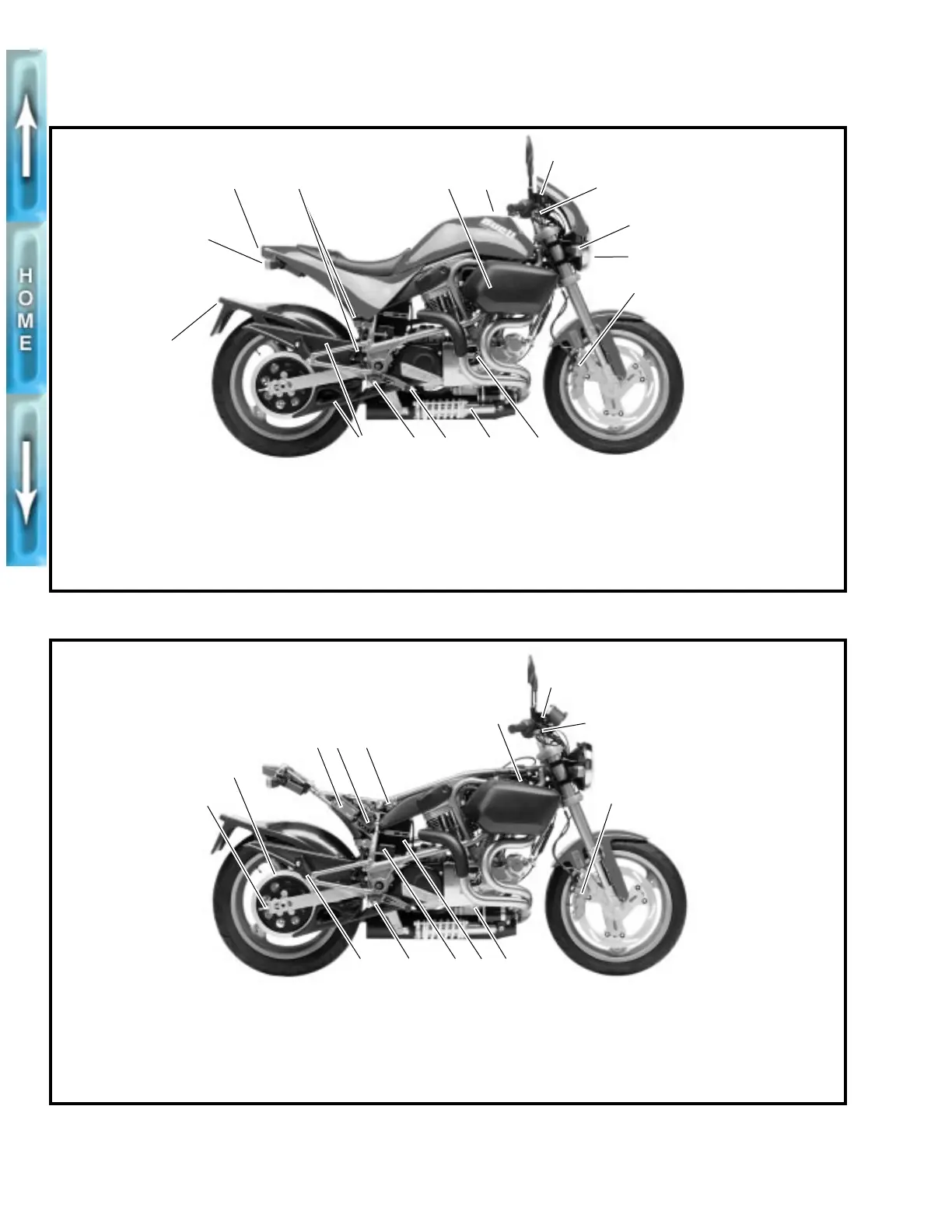

SIDE VIEWS
Figure 1. 1997 S1 Lightning, Right Side View
Figure 2. 1997 S1 Lightning, Right Side View (Body Removed)
5806
5
6
4
7
1112131415
9
10
1
8
32
16
1. Right rear turn signal
2. Tail/stop lamp
3. Rear brake master cylinder/
reservoir
4. Air cleaner cover
5. Fuel filler cap
6. Front brake master cylinder
7. Front brake hand lever
8. Right front turn signal
9. Headlamp
10. Front brake caliper
11. Timer cover
12. Rear shock absorber
13. Rear brake pedal
14. Rider footrest
15. Belt guard(s)
16. License plate light
1. Rear axle adjuster nut
2. Rear sprocket and secondary
drive belt
3. Ignition module
4. Fuse block and spare fuse
5. Turn signal flasher
6. Remote idle adjuster
7. Front brake master cylinder
8. Front brake hand lever
9. Front brake caliper
10. Oil pump
11. Battery
12. Voltage regulator
13. Rider footrest
14. Passenger footrest
5808
3
7
1
2
8
9
4 5
6
1011121314

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
