Buell S1 Lightning User Manual

5

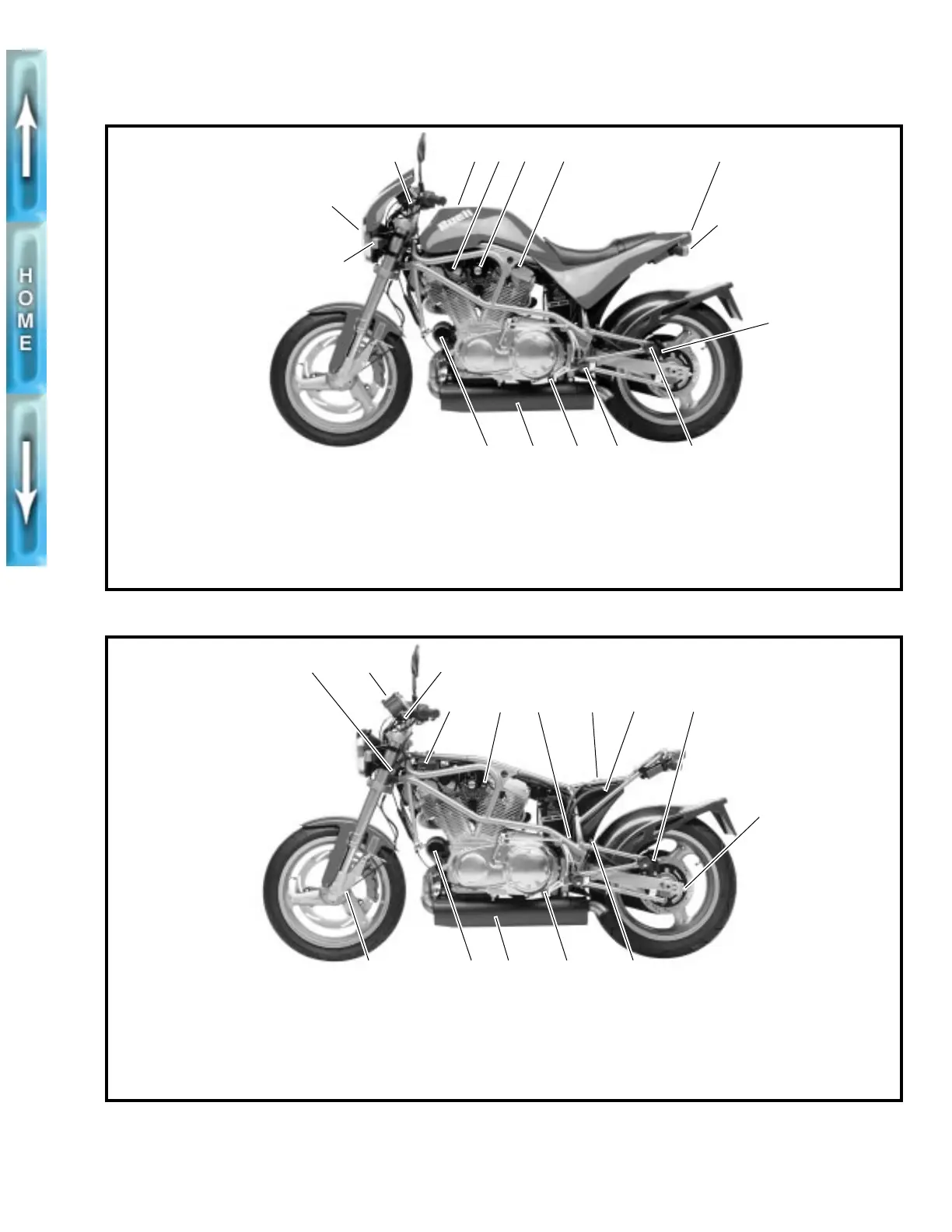

Figure 3. 1997 S1 Lightning, Left Side View
Figure 4. 1997 S1 Lightning, Left Side View (Body Removed)
5807
1
2
3 6 7 8
9
10
1112131415
1. Left front turn signal
2. Headlamp
3. Clutch hand lever
4. Fuel filler cap
5. Horn
6. Ignition/headlamp key switch
7. Fuel supply valve
8. Tail/stop lamp
9. Left rear turn signal
10. Rear brake caliper
11. Passenger footrest
12. Rider footrest
13. Gear shift lever
14. Exhaust muffler
15. Oil filter
54
5809
6 84
2 31
7
11121314
10
5 9
15
1. Steering head lock
2. Instruments
3. Clutch hand lever
4. Ignition coil
5. Enrichener knob
6. Starter relay
7. Oil filler plug/dipstick
8. Oil tank
9. Rear brake caliper
10. Rear axle adjuster nut
11. Oil tank drain hose
12. Gear shift lever
13. Exhaust muffler
14. Oil filter
15. Speedometer drive

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
