Buell S1 Lightning User Manual

36
HORN
MODEL YEAR CHANGE
See Figure 27. All 1997 model year motorcycles have a new
horn in a new location.
NOTE
For troubleshooting information, see HORN, TROUBLE-
SHOOTING in Section 7 in the 1996 manual.
REMOVAL
1. Remove seat and fuel tank. See FUEL TANK, REMOVAL
in Section 4 of the 1996 manual.
2. See Figure 28. Detach horn wires.
a. Disconnect Y/BK power wire (5).
b. Disconnect BK ground wire (6).
3. Remove bolt (1), lockwasher (2) and washer (3) to
detach horn and bracket from frame.
INSTALLATION
1. See Figure 28. Attach horn assembly to frame using
bolt (1), lockwasher (2) and washer (3).
2. Connect horn wires.
a. Attach Y/BK power wire (5).
b. Attach BK ground wire (6).
1
WARNING
After installing seat, pull upward on front of seat to be
sure it is locked in position. If seat is loose, it could shift
during vehicle operation and startle the rider, causing
loss of control and personal injury.
3. Install fuel tank and seat. See FUEL TANK, INSTALLA-
TION in Section 4 of the 1996 manual.

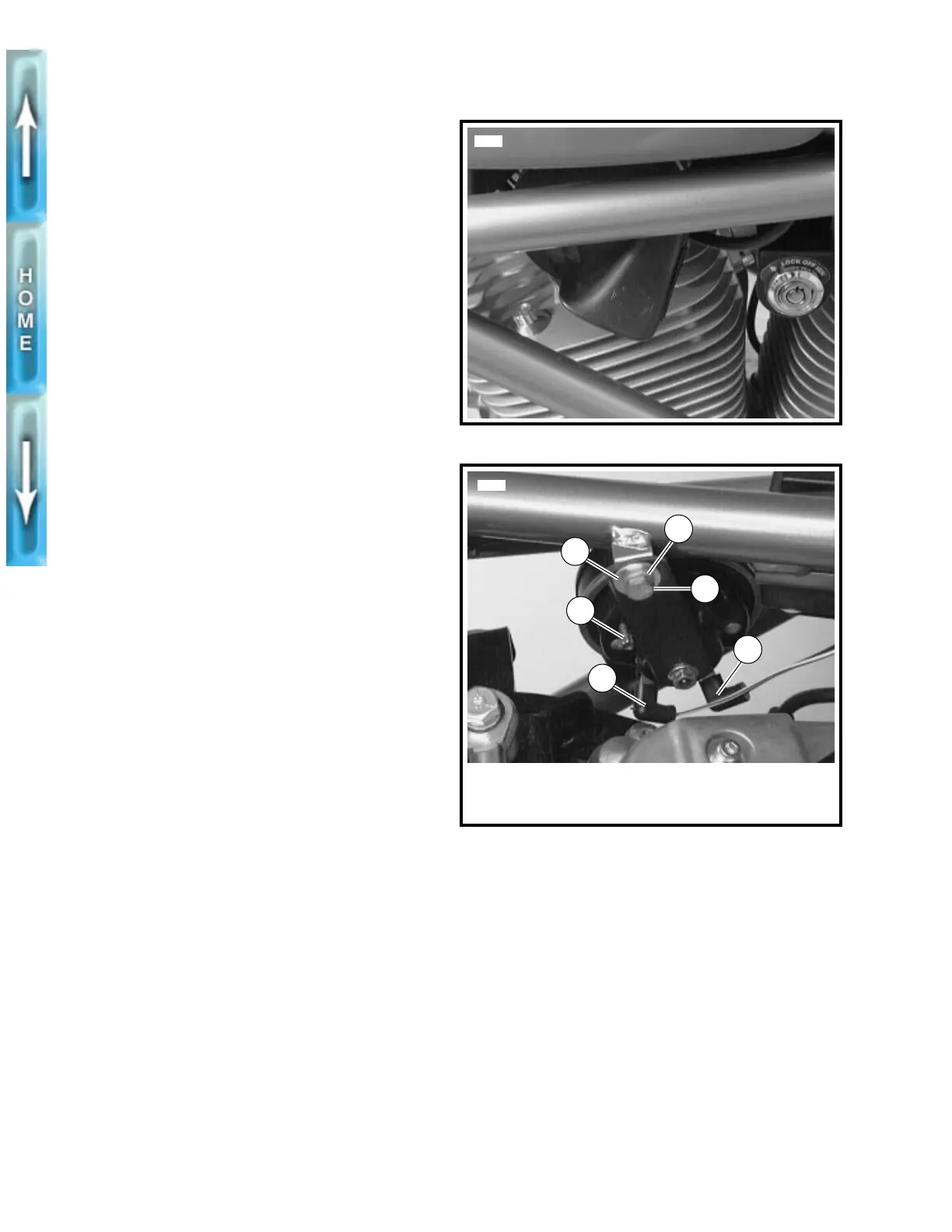

Figure 27. Horn Location
Figure 28. Horn Attachment
5882
1. Bolt
2. Lockwasher
3. Washer
4. Adjuster
5. Power wire (Y/BK)
6. Ground wire (BK)
5875
2
1
4
3
6
5
