2-54
FENDERS
REMOVAL/INSTALLATION
Front Fender
1. Raise front wheel off ground with FRONT WHEEL SUP-
PORT STAND (Part No. B-41395) and S1 LIFT
ADAPTER (Part No. B-41686).
2. Remove front brake caliper. See FRONT BRAKE CALI-
PER, REMOVAL/DISASSEMBLY on page 2-20.
3. See Figure 2-61. Remove lower fender mounting screws
(8) (metric), washers (9) and plastic spacers (6).
4. Remove upper fender mounting screws (3), washers (4),
wire guides (5), plastic spacers (6) and locknuts (7).
5. Carefully remove fender (1) from between front forks.
6. Install in reverse order.
a. Tighten upper fender mounting screws (3) to 20-25
in-lbs (2.3-2.8 Nm).
b. Tighten lower fender mounting screws (8) (metric) to
10-15 in-lbs (1.1-1.7 Nm).
Rear Fender/Lower Belt Guard
1. See Figure 2-62. Unplug connector (10)
2. Remove screws (13) and nylon washers (2) on right side
to detach lower belt guard (11).
3. Remove shoulder bolts (7), washers (8) and grommets
(9) on left side.
4. Remove rear fender (6) from swingarm.
5. Install in reverse order.
Frame Heat Shield
1. Remove seat and tail section. See TAIL SECTION,
REMOVAL on page 2-55.
2. See Figure 2-62. Remove screws (1), nylon washers (2)
and locknut (4).
3. Remove frame heat shield (5).
4. If necessary, remove clamp (3).
5. Install in reverse order.

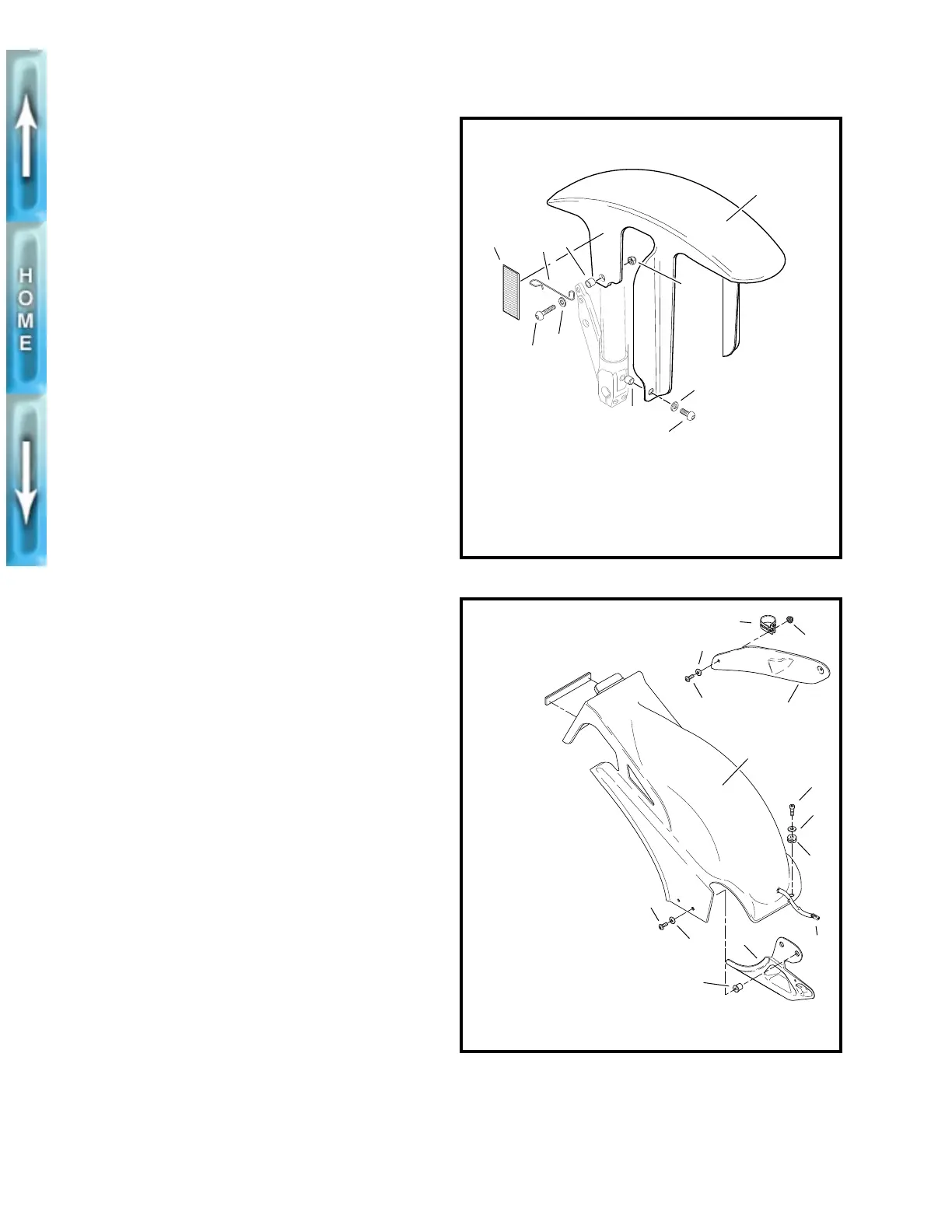

Figure 2-61. Front Fender
Figure 2-62. Rear Fender, Lower Belt Guard
and Heat Shield
1. Front fender
2. Reflector (2)
3. Screw (2)
4. Washer (2)
5. Wire guide (2)
6. Plastic spacer (4)
7. Locknut (2)
8. Screw (2) (metric)
9. Nylon washer (2)
b0216x2x
1
3
4
7
6
8
9
2
5
6
1. Torx screw (3)
2. Nylon washer (5)
3. Clamp
4. Locknut
5. Frame heat shield
6. Rear fender
7. Shoulder bolt (2)
8. Washer (2)
9. Grommet (2)
10. Connector
11. Lower belt guard
12. Well nut (3)
13. Torx screw (3)
b0218x2x
6
1
2
3
5
4
7
8
9
10
2
13
12
11
