Buell S1 Lightning User Manual

3-29
OIL HOSE ROUTING
GENERAL
See Figure 3-38. The oil tank has four hoses. The drain hose
(2) attaches to a fitting on the left side of the frame. From the
top of the tank, the vent hose (3) and the return hose (4) join
the bottom feed hose (1) near the battery tray. Cable straps
secure the hoses in place.
See Figure 3-39. The feed (1) and return hoses (3) run
together between the swingarm mount block and crankcase,
beneath the engine and forward to the oil pump. The feed
hose attaches to the rear most oil pump fitting; the return
hose connects forward and above.
After diverging from the feed and return hoses, the vent hose
is routed beneath the starter. The vent hose continues on to
the right side of the motorcycle and goes behind the gearcase
cover assembly where it connects to an elbow fitting.

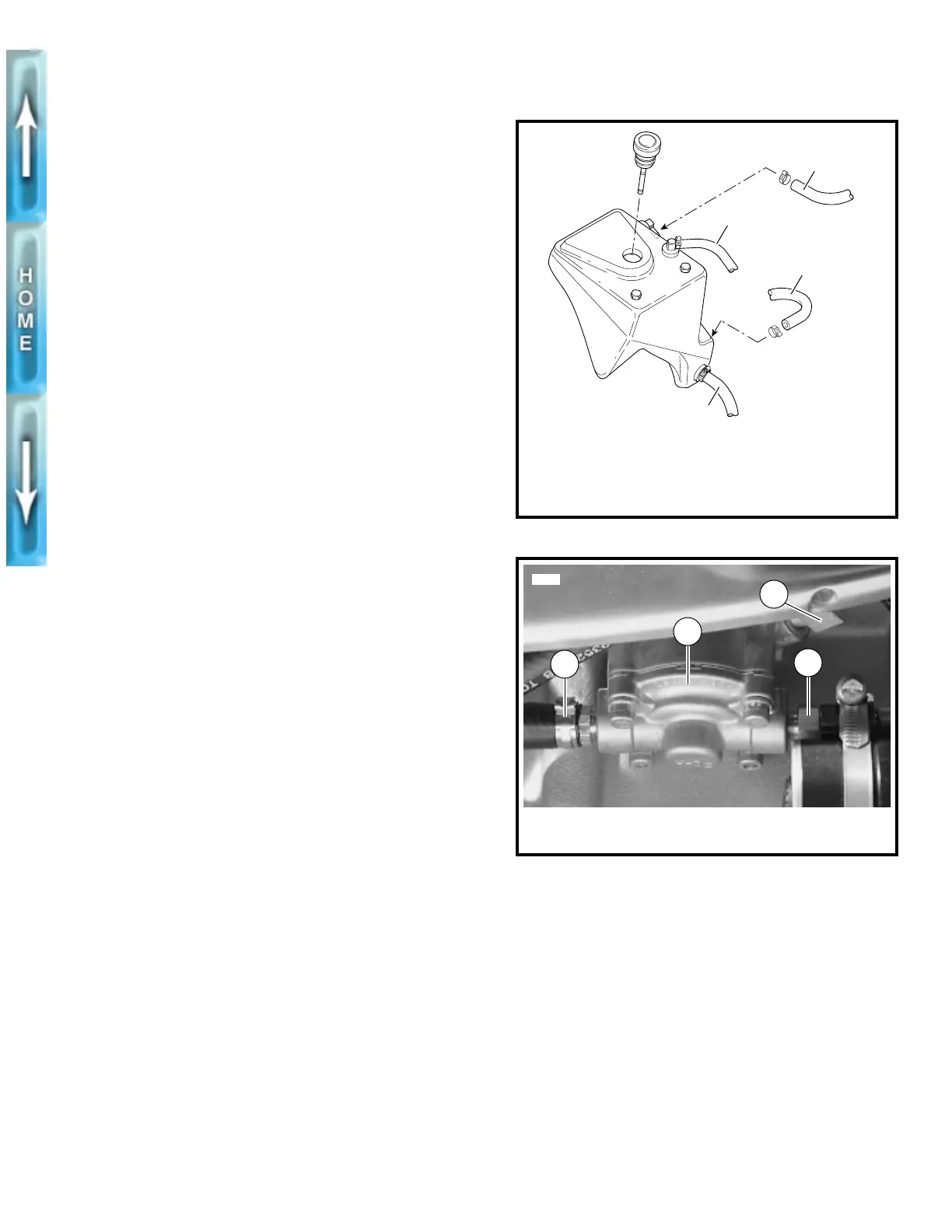

Figure 3-38. Oil Tank Hoses
Figure 3-39. Oil Pump Connections
b0248x3x
1
1. Feed hose (3/8 in. ID by 5/8 in. OD)
2. Drain hose (3/8 in. ID by 5/8 in. OD)
3. Vent hose (1/4 in. ID by 1/2 in. OD)
4. Return hose (3/8 in. ID by 5/8 in. OD)
2
4
3
1
3
4
1. Feed hose
2. Oil pump
3. Return hose
4. Oil filter connection
5709
2

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
