4-13

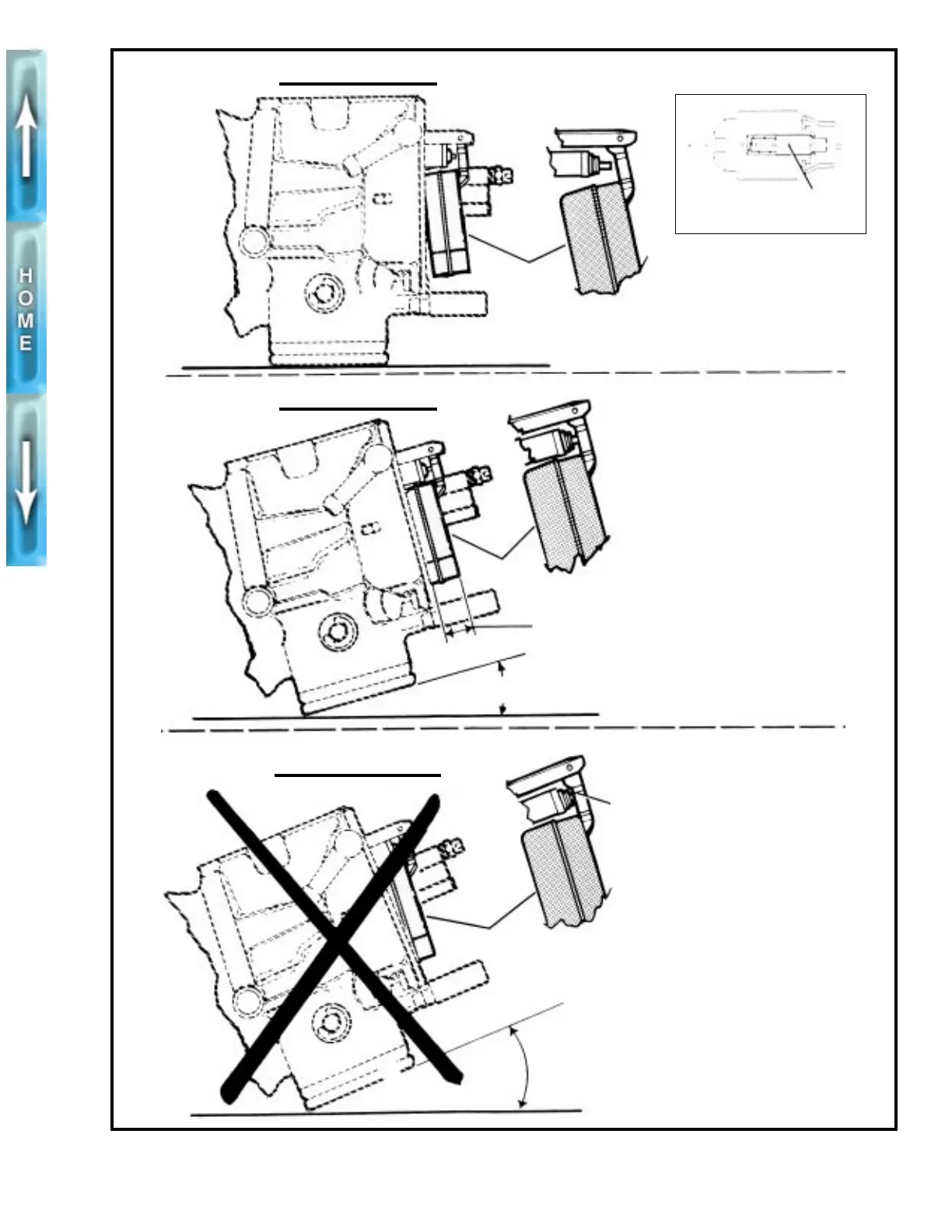

Figure 4-11. Carburetor Float Adjustment
“Base”
Correct float position
15 to 20˚
Incorrect float position
Start float position
Pin
Fuel inlet valve
XLH0404
Float
Float
0.413-0.453 in.
(10.49-11.51 mm)
Pin return
spring collapsed
Float
Greater than 20˚
