1-6

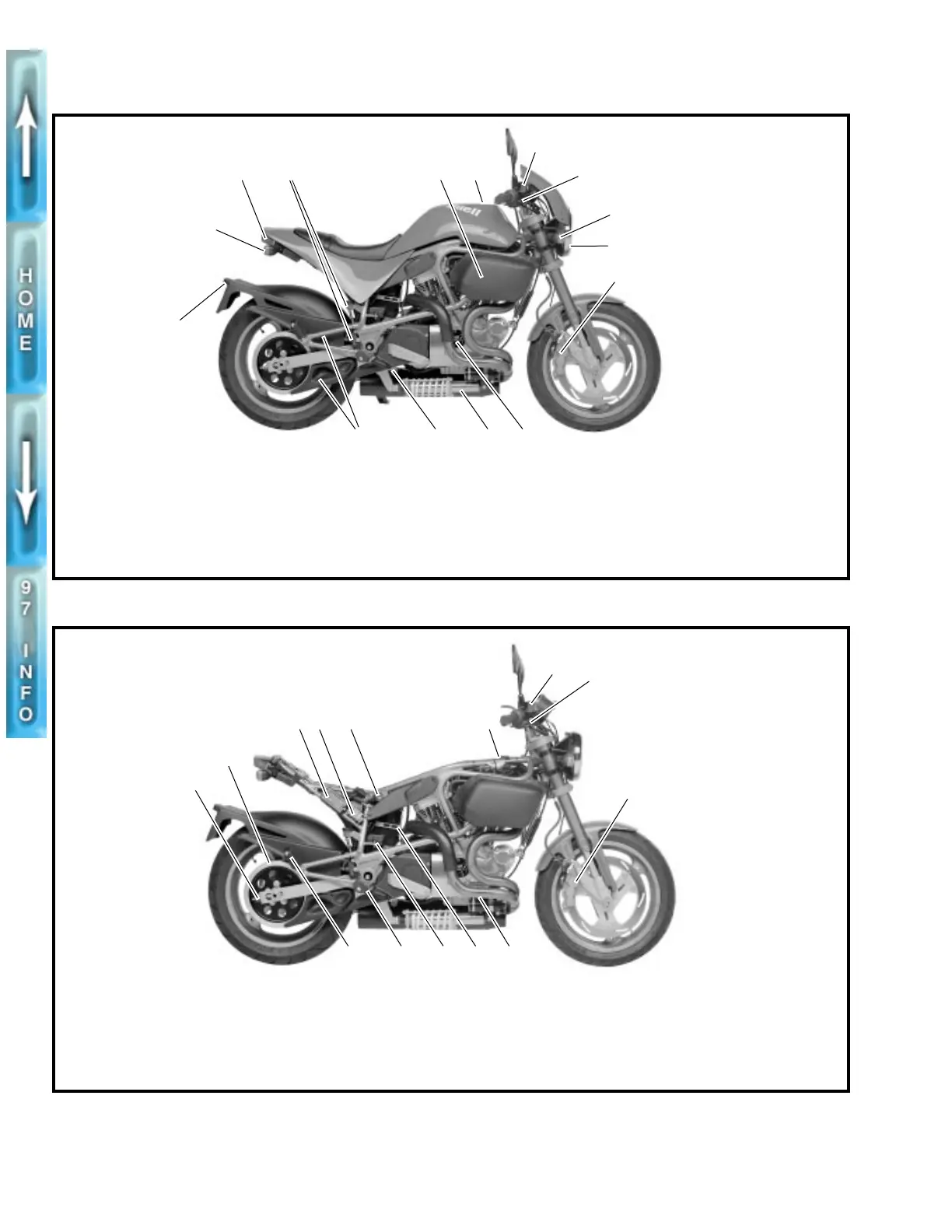

Figure 1-1. 1996 S1 Lightning, Right Side View

Figure 1-2. 1996 S1 Lightning, Right Side View (Body Removed)

1. Right rear turn signal

2. Tail/brake lamp

3. Rear brake master cylinder

and reservoir

4. Air cleaner cover

5. Fuel filler cap

6. Front brake master cylinder

7. Front brake hand lever

8. Right front turn signal

9. Headlamp

10. Front brake caliper

11. Timer cover

12. Rear shock absorber

13. Rear brake pedal

14. Belt guard(s)

15. License plate light

5745

11121314

1. Rear axle adjuster nut

2. Rear sprocket and secondary

drive belt

3. Ignition module

4. Fuse block and spare fuse

5. Turn signal flasher

6. Horn

7. Front brake master cylinder

8. Front brake hand lever

9. Front brake caliper

10. Oil pump

11. Battery

12. Voltage regulator

13. Rider footrest

14. Passenger footrest

5746

4 5 6

1011121314

SIDE VIEWS

Questions and Answers:

Need help?

Do you have a question about the Buell S1 Lightning and is the answer not in the manual?

Buell S1 Lightning Specifications

General

Transmission	5-speed
Rear Brakes	Single 230mm disc, single-piston caliper
Compression Ratio	10.0:1
Ignition	Electronic
Engine Type	Air-cooled, four-stroke, 45° V-twin
Rear Suspension	Showa monoshock, adjustable preload, compression and rebound damping
Front Brakes	Single 340mm disc, 6-piston caliper
Seat Height	775 mm
Bore x Stroke	88.8 mm x 96.8 mm
Fuel System	Carburetor
Frame	Tubular steel
Tires	Front: 120/70 ZR17, Rear: 170/60 ZR17
