Installation 99
V3000
Consider the following key points when installing V3000:
1. Use the recommended grounding and LPU connections.
2. Use the recommended cables for interfacing ODU (refer to the supported power supply and cable
length details in the Power supply units (PSU) section).
3. Always install the ODU 0.5 meters below the tip of the pole.

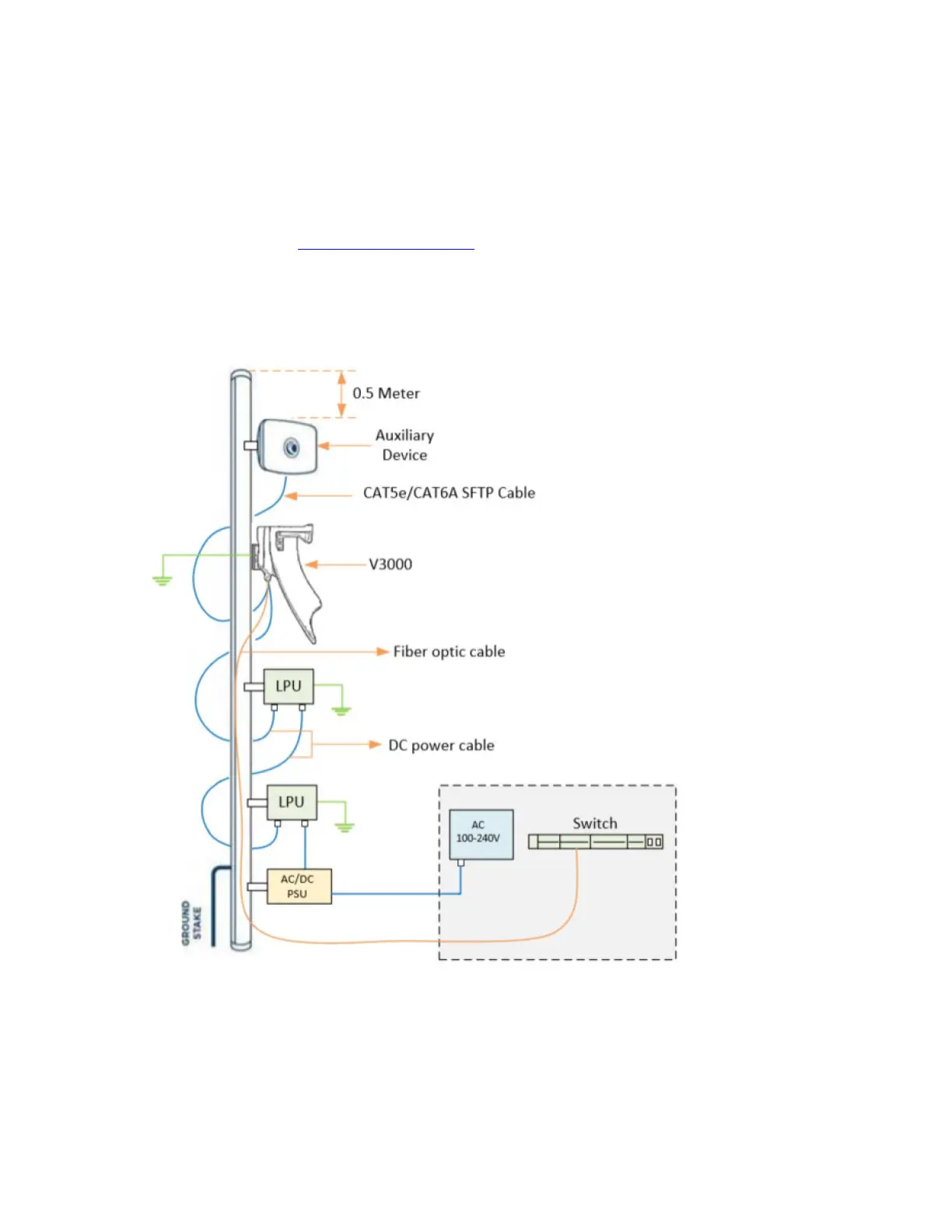

Figure 69 shows a typical installation of V3000 CN on a mast and powered through outdoor AC/DC PSU.
Figure 69:
Typical installation - V3000 CN
