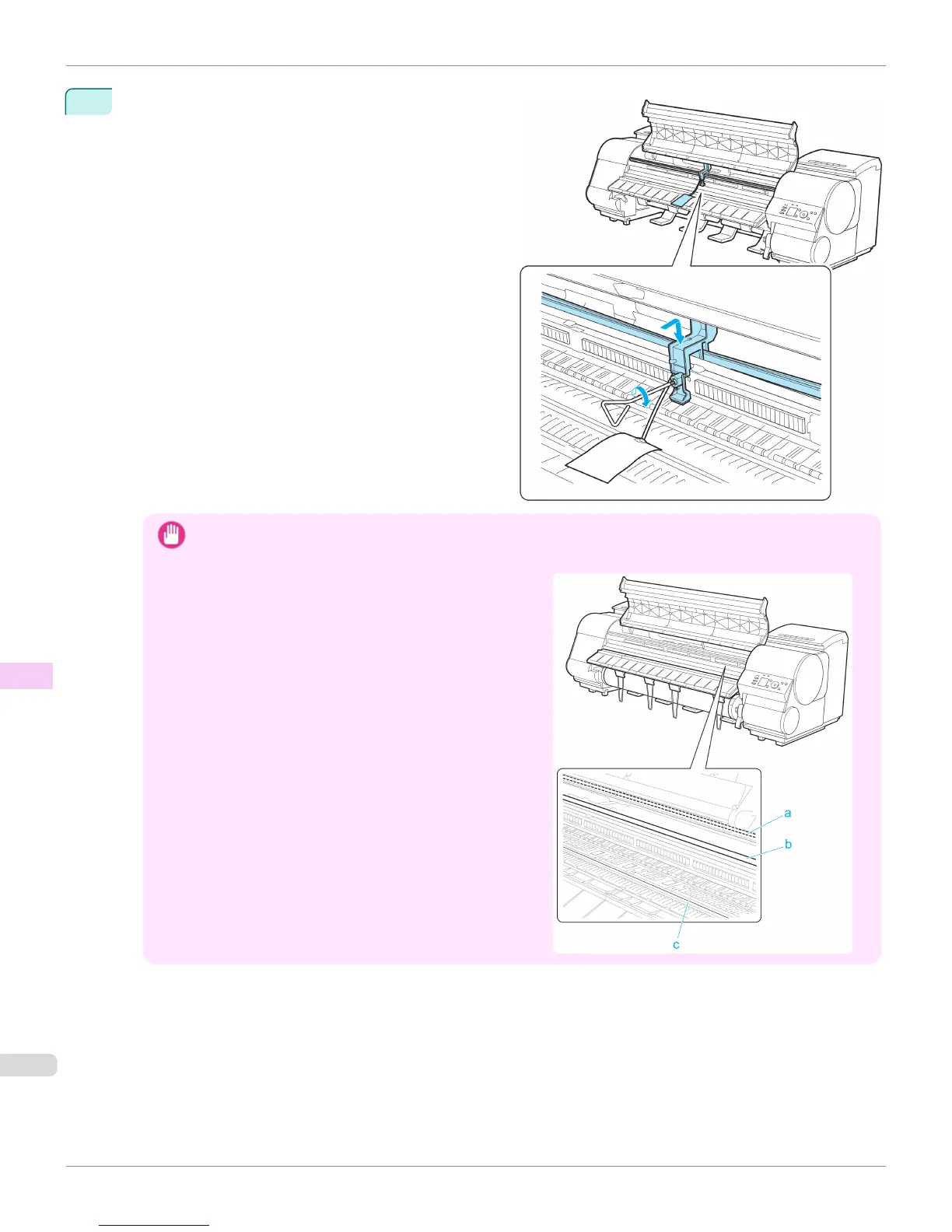

Grasp the Belt, insert it between the Belt Stopper, and
affix the Belt Stopper with a hex screw at the position
indicated.
Important
• Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to attach the Belt
Stopper may damage the printer.
•
Do not touch the Linear Scale (a), Carriage Shaft (b), or
Fixed Blade (c). This may stain your hands and damage
the printer.
