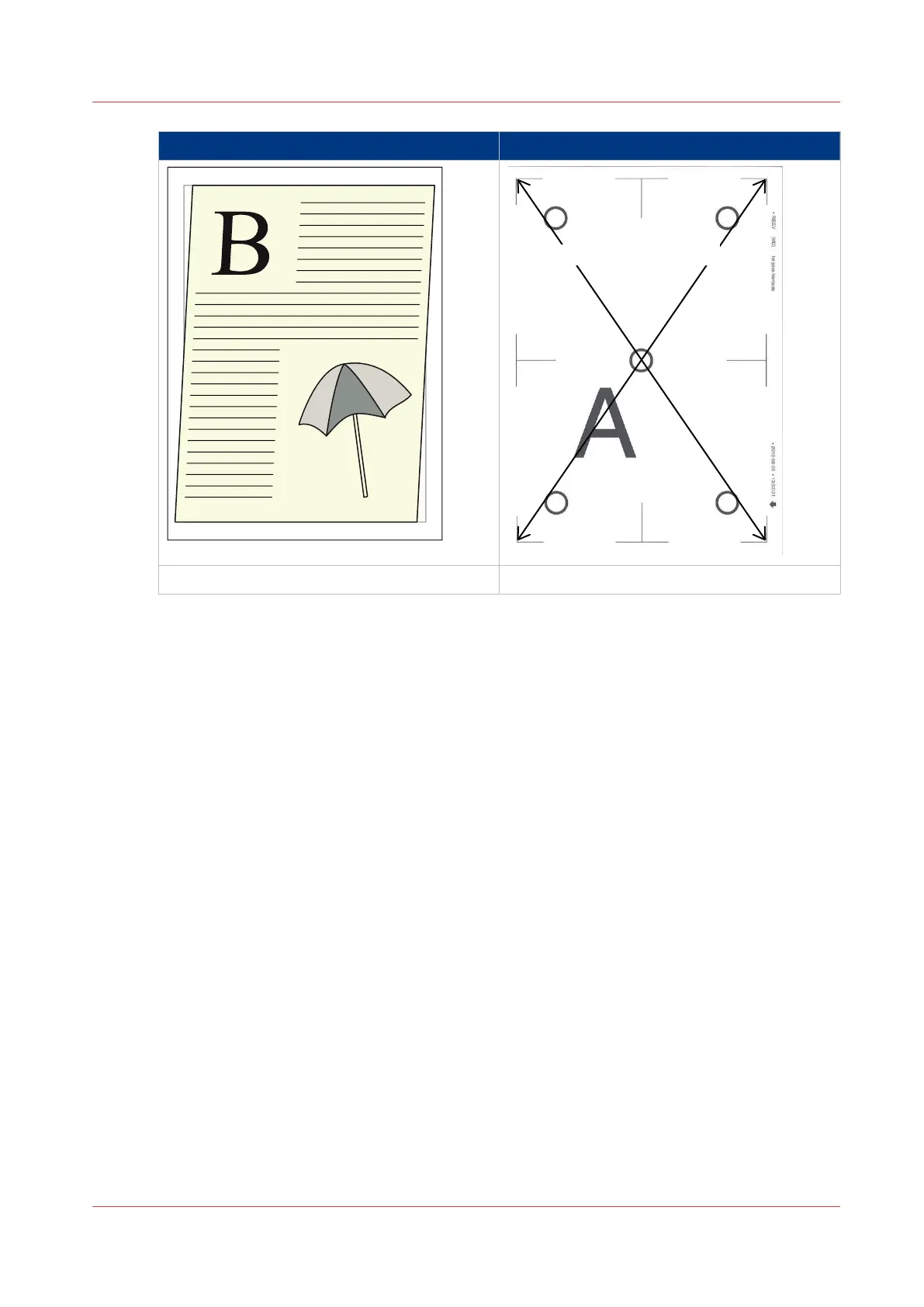

Job Verification chart
<-- Feed direction
Media Registration via the Diagonal of the Image
Procedure
1.
On the verification chart, determine if the image on the back side has a diamond shape or the
image on the front side.
If the diamond shape is on the back side, change the back side.
If the diamond shape is on the front side, change the front side.
2.
On the verification chart, use an accurate ruler to measure the distance between:
• The top-right corner and the bottom-left corner. a in the figure above.
For example, the distance is 336.0 mm (13.23").
• The top-left corner and the bottom-right corner. b in the figure above.
For example, the distance is 335.0 mm (13.19").
3.
Determine the difference between the second value measured and the first value measured. b - a.
In the example, the measured difference is -1.0 mm (-0.04").
4.
Enter the measured difference according to the table below.
5.
Confirm the changed values.
6.
Print the verification chart again and verify if the media registration is optimal.
If the media registration is not optimal, change the value or use another setting depending on
how the registration looks.
Media Registration via the Diagonal of the Image
Chapter 5 - Media Handling
107
