Registration Values
Section What to enter

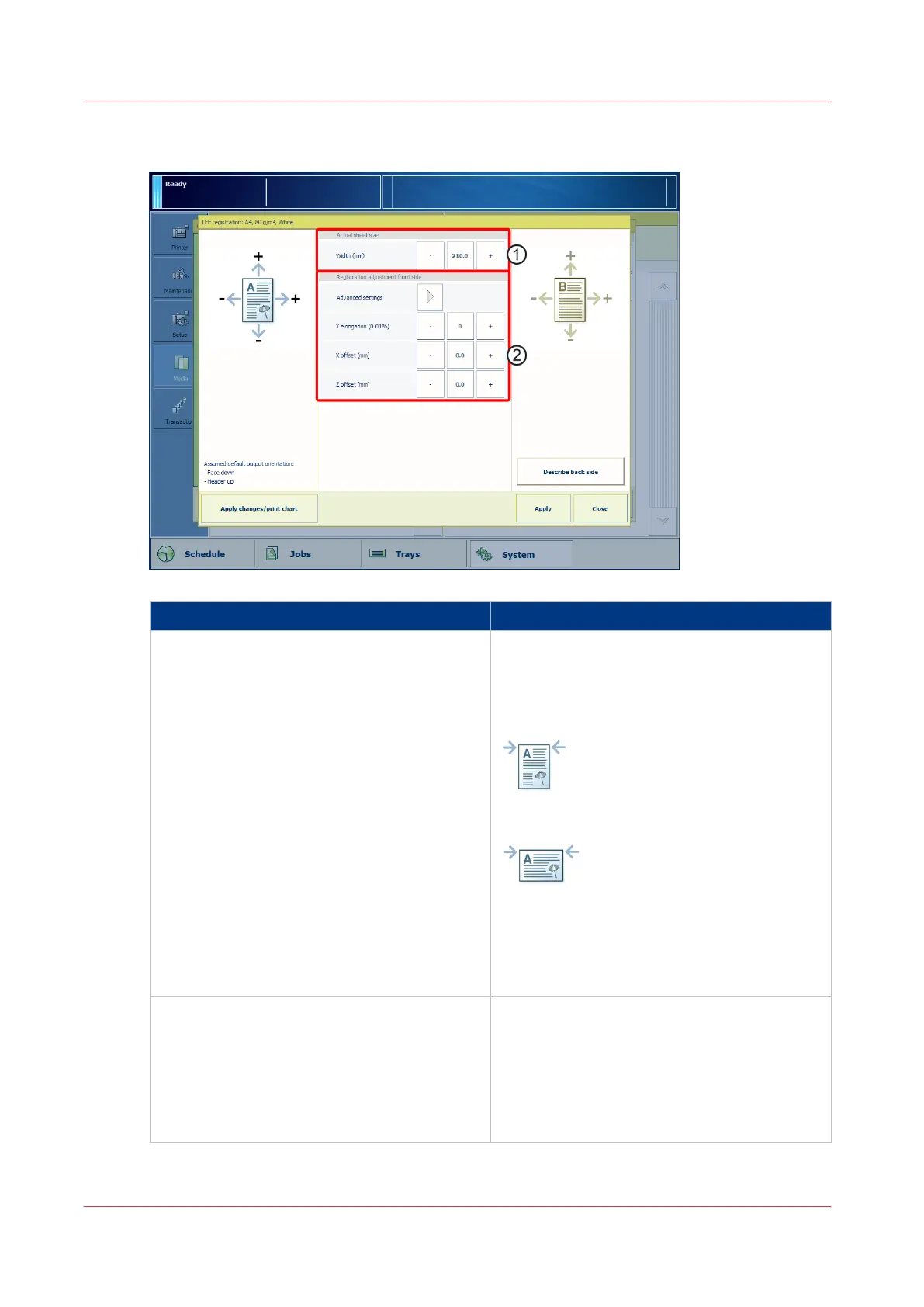

Upper section (1) The actual sheet size measured in the feed di-
rection. It is recommended to measure several
(6) sheets. Determine the average sheets size
in the feed direction. For LEF, enter the sheet
width.
[30] For LEF, enter the sheet width
For SEF, enter the sheet length.
[31] For SEF, enter the sheet length
The actual sheet size is used in the front-to-
back registration. The actual sheet size has im-
pact on the distance between the leading edge
of the sheet and the leading edge of the image.
Lower section (2)
The required values. Use the verification chart
to determine which value to change. The sec-
tions hereafter describe how to determine the
values you must enter. For most situations you
can correct the media registration with the
standard settings. Only in exceptional cases,
you need the advanced settings.
