7-MAINTENANCE

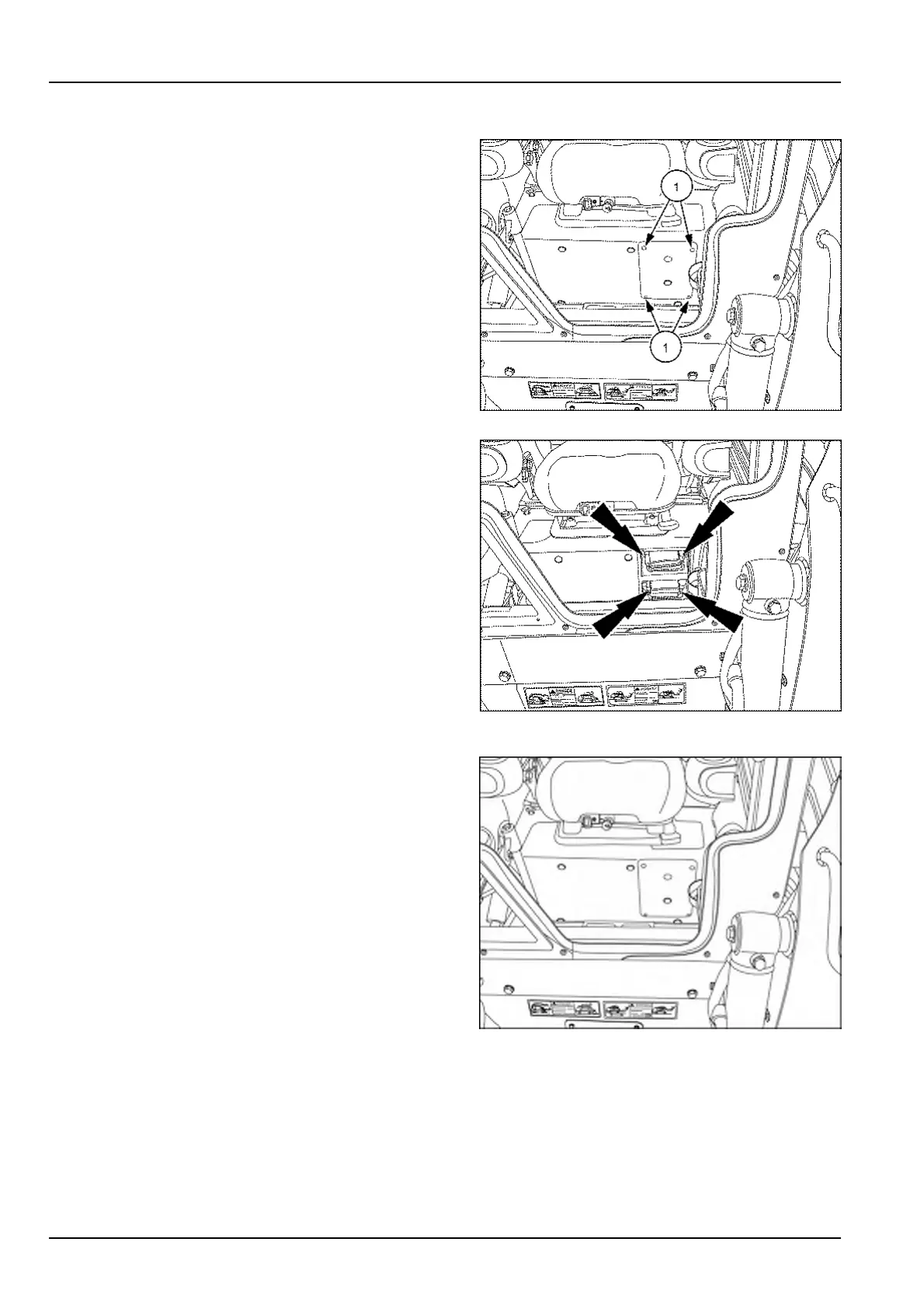

Fuseandrelaysinthecabarea–Electro-Hydraulic(EH)controlsonly
1.Removethescrews(1)fromthecoverpaneltoexpose
thefuseandrelayblocks.
NOTE:Thefuseandrelayidenticationdecalisonthe
backsideofthecoverpanel.
RAIL14SSL0717AA8
2.Pressbothofthelockingtabsoneachsideofthecover
andliftoffofthefuseandrelayblock.
NOTICE:Onlyreplacefuseandrelayswiththesame
typeandamperagerating.Failuretodosomayresult
inanelectricalsystemfailure.
3.Locateandchecktheproblemfuseorrelay.Ifneces-
sary,replacethefuseorrelay.
NOTICE:Avoidwaterandmoisturefromenteringthe
fuseandrelayblock,makesurethatthecoverisprop-
erlypositionedandfullylatched.Failuretodosomay
allowwaterormoisturetoenterthepowercenterand
possiblyresultinanelectricalsystemfailure.
4.Alignthelockingtabsonthefuseblockcoverandpush
downtosecureinplace.Makesurethatthecoveris
inproperpositionandsecure.
RAIL14SSL0715AA9
NOTICE:Avoidwaterfromenteringthepowercenter,
makesurethatthefusepanelcoverisintheproperposi-
tionandsecure.Failuretodosomayallowwatertoenter
thepowercenterandpossiblyresultinanelectricalsys-
temfailure.
5.Positionthefuseandrelaycoversothatallsidesare
ushorevenwiththeheelkickplate.
6.Holdthefuseandrelaypanelcoverinposition.
7.Tightenthescrewstosecurethecoverinposition.
RAIL14SSL0717AA10
7-22
