CASE CONSTRUCTION Alpha Series - Page 35

2-SAFETYINFORMATION

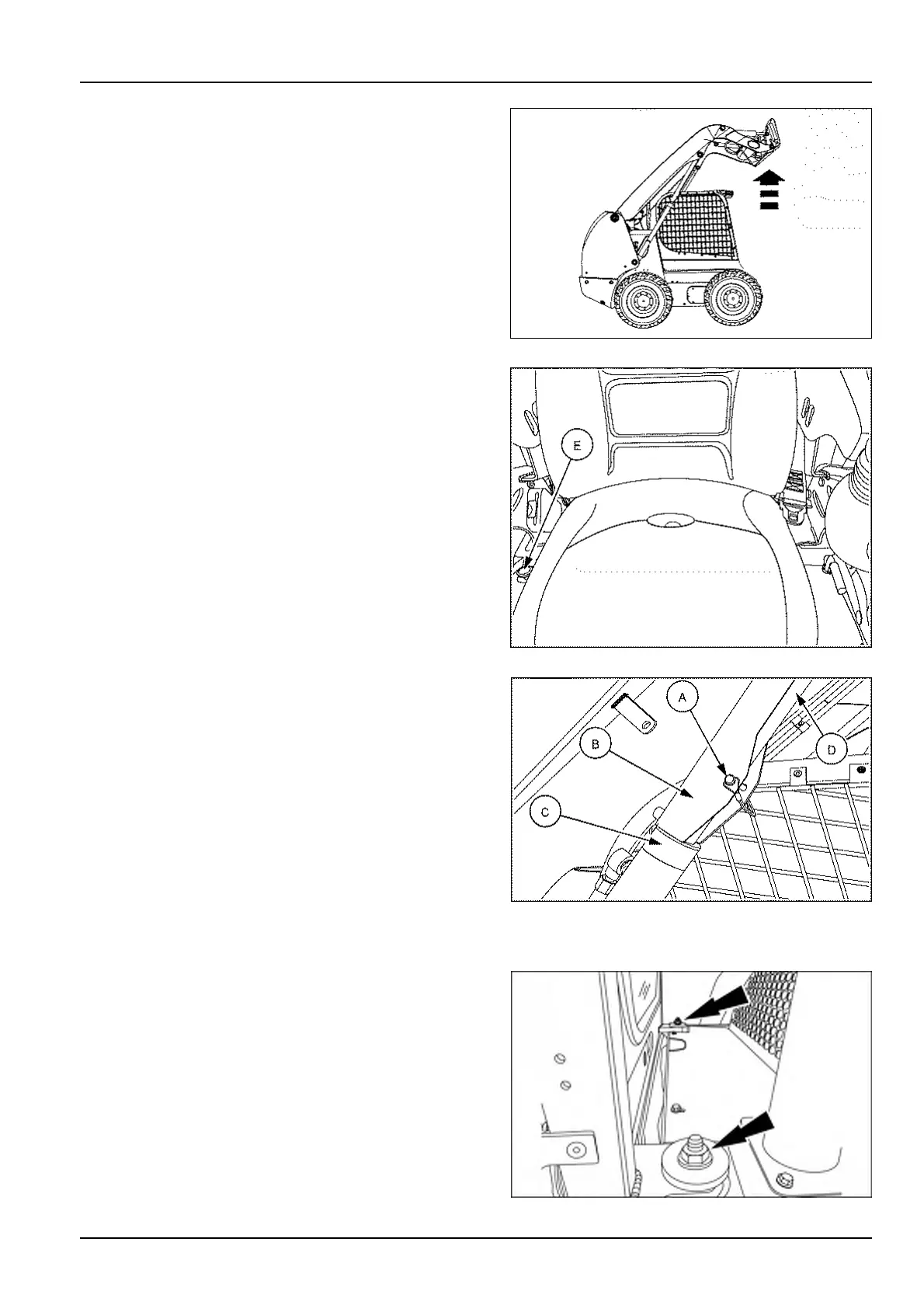

7.Slowlyraisetheloaderarmuntilthesupportstrut(B)
fallsontothecylinderrod(D).
8.Stoptheengine.
RAIL14SSL0418AA3
9.Pullupontheoverridecontrolknob(E)(redcontrol
knobneartheright-handsideoftheoperator’sseat).
Thesupportstrut(B)willbraceagainstthetopofthe
cylinderbarrel(C)supportingtheweightoftheloader
arm.
NOTICE:Onlyusetheoverridecontrolknobtolowerthe
loaderarminemergencysituationswhenenginepoweris
notavailableortolowertheloaderarmontothesupport
strutforservicingthemachine.
93107465A4
10.Askanassistanttoinsertthepin(A)intothesupport
strut(B).Ifanassistantisnotavailablevisuallycon-
rmthatthesupportstrutisbracedagainstthetopof
thecylinderbarrelbeforeexitingthemachine.
93106854A5
Tiltandlockthecabforwardformachineservice
1.Removethetwo,rearretainingnuts,locatedatthe
rearofthecab.
9310016336
2-19
