Case 570NXT - Differential Lock System

4-OPERATINGINSTRUCTIONS
Differentiallocksystem
Thedifferentiallockgivesequalpowertobothrearwheelsandisusedinconditionswheretractionispoor.
NOTE:Thedifferentiallockwillreleaseautomaticallywhentheloadontheaxleisremoved.
NOTICE:Youcancausedamagetotherearaxleifyoutrytoengagethedifferentiallockwhenthemachineisturning
orifonerearwheelisrotatingfasterthantheotherrearwheel.
NOTICE:Youcancausedamagetotherearaxleifyou
arebrakesteeringwiththedifferentiallockengaged.
Ifoperatingthroughasoftormuddyarea:
1.Makesurethatthemachineismovinginastraight
directionandthatoneoftherearwheelsisnotrotating
fasterthantheotherrearwheel.
2.Pushandholdthedifferentiallockbutton.

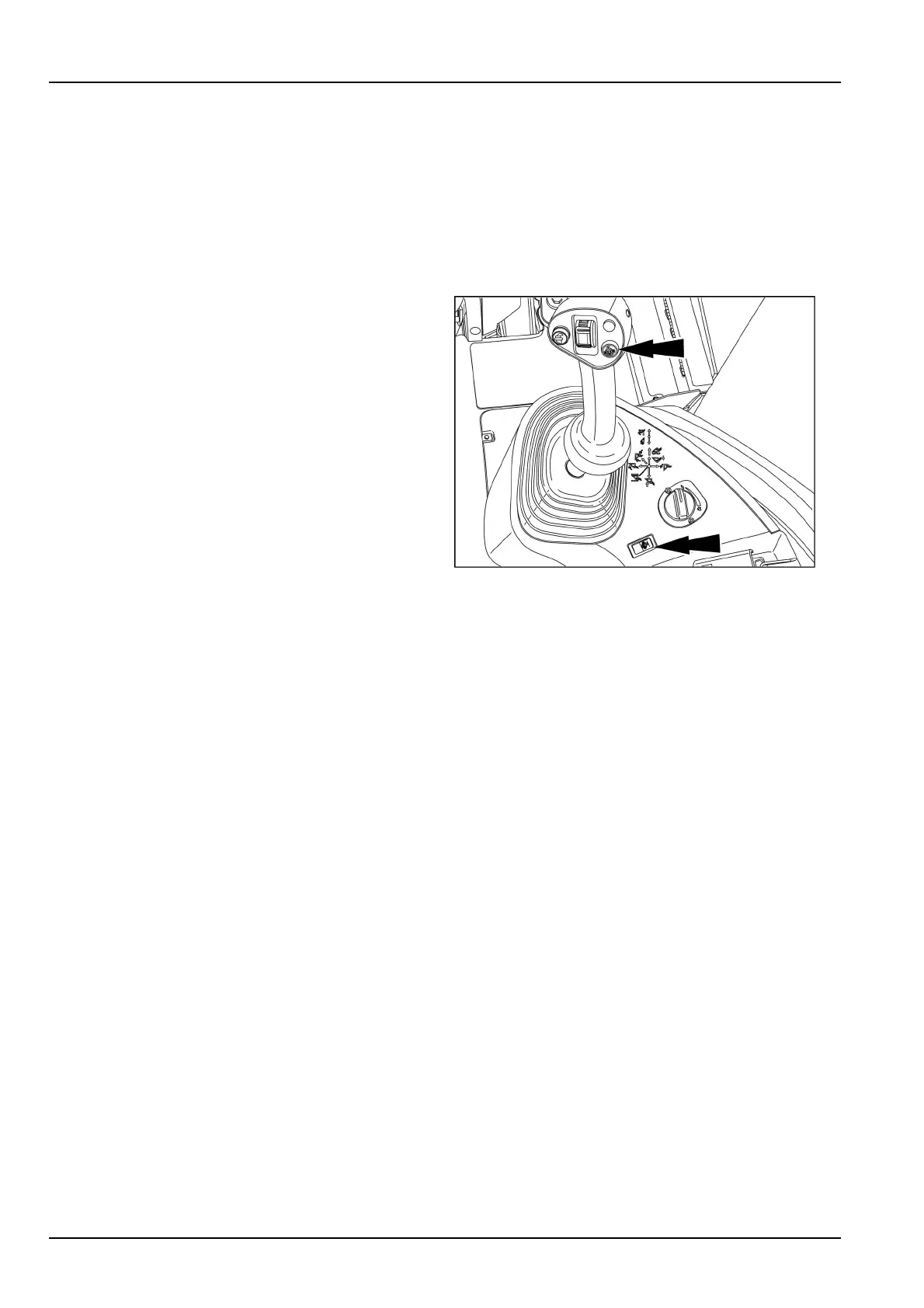

NOTE:Useeitheroneofthedifferentialswitches
shown.
3.Afteryouhavemovedthroughthearea,releasethe
button.
Ifthemachineisstuck:
1.Reducetheenginespeedandconrmthatthefront
wheelsarenotrotating.
2.Pushandholdthedifferentiallockbutton.
3.Releasethebuttononcetractionhasbeenregained.
