7-MAINTENANCE

Stop,tail,asherandturnsignallamps-canopy-ROPScanopy

NOTE:Theprocedureisthesametoreplacethebulbinaturnsignal/asherlamporinatail/stoplamp.

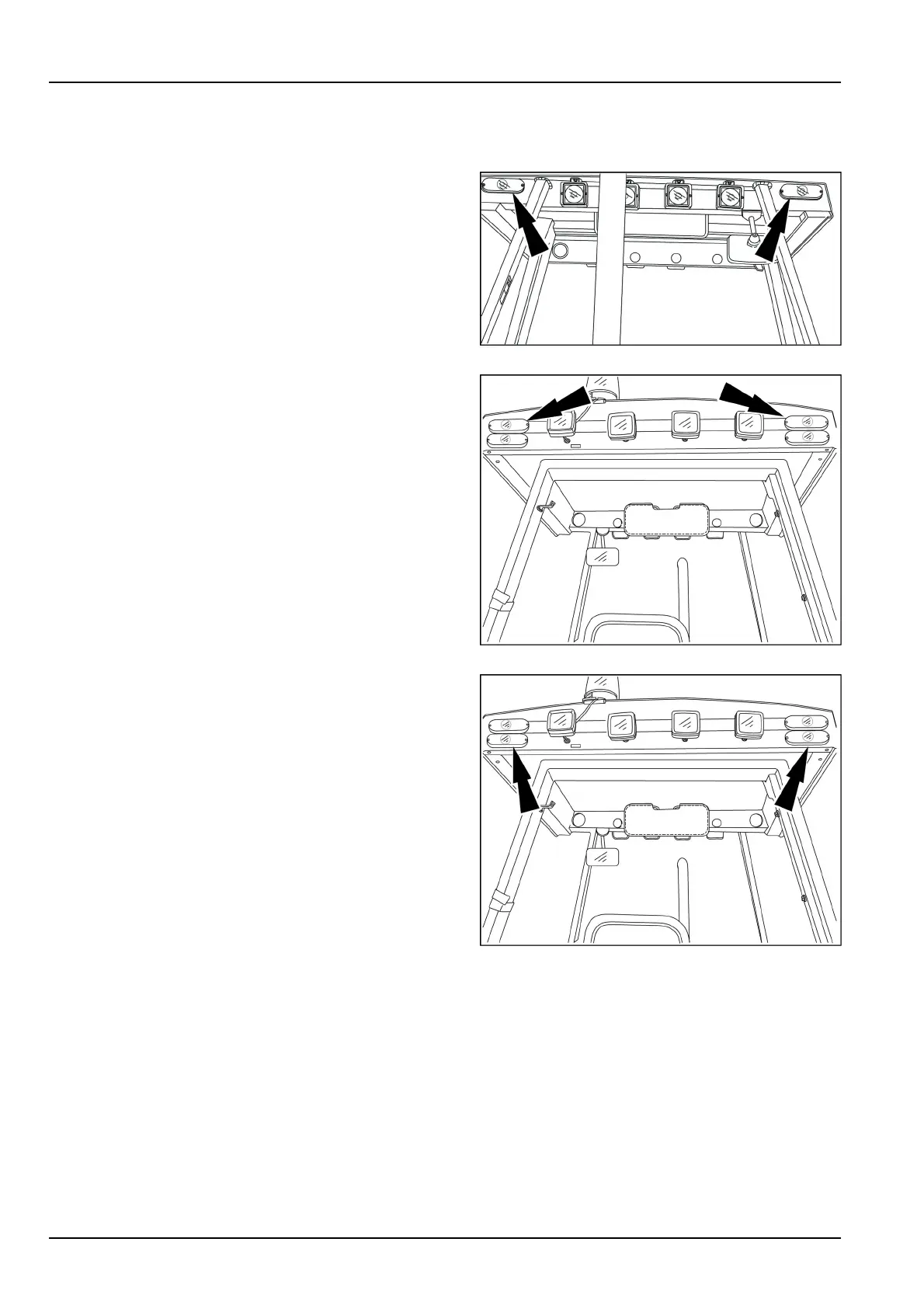

Turnsignal/asherlampsareatthefrontoftheROPS

canopyontheleftandtherightside.

RAPH12UTL0011AA1

Turnsignal/asherlampsarealsoattherearoftheROPS

canopyontheleftandtherightside.

RAPH12UTL0009AA2

Tail/stoplampsareattherearoftheROPScanopyonthe

leftandtherightside.

RAPH12UTL0009AA3

7-106
